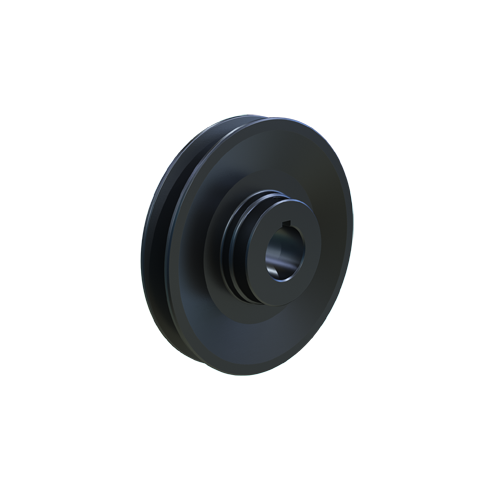

MARTIN SPROCKET BK57 1 1/8 Sheave, 1.125 Inch Bore, 0.875 Inch Face Width, 5.450 Inch Outside Dia., Cast Iron
Item: AM3LFT
Model: BK57 1 1/8
In Stock
Get it by Thursday, Apr 16
5.450"
1.125"
£62.66/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| 4la Or A Belt Pitch Dia. | 4.7" |
|---|---|
| 5l Or B Belt Pitch Dia. | 5.1" |
| Bore Diameter | 1 1/8" |
| Bore Type | Finished |
| Bushing Type | H |
| Face Width | 7/8" |
| Hub Diameter | 2 1/8" |
| Hub Projection | 13/32" |
| Length | 1 9/32" |
| Material | Cast Iron |
|---|---|
| Number Of Grooves | 1 |
| Outside Dia. | 5.45" |
| Outside Diameter | 5.45" |
| Product Datasheet | martin-sprocket-1-3v-1060-sds.pdf |
| Series | BK Series |
| Suitable For Use With | A, 4L, B, 5L Cross Section Belts |
| Type | Bored to Size Type B Web |
Product Details
Shipping Information
| Height | 3.25 |
|---|---|
| Length | 13.84 |
| Width | 13.84 |
| Country Of Origin | US |
|---|---|
| Weight | 1.215000 |
