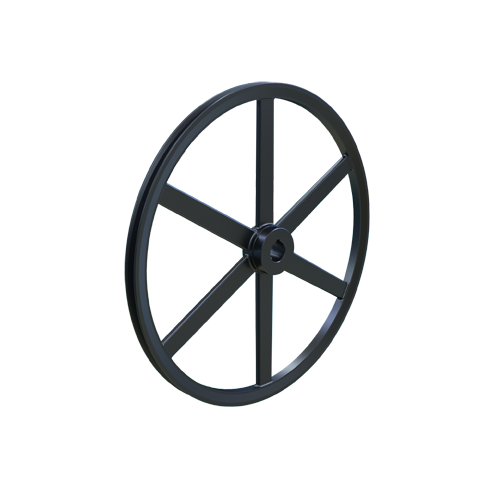

MARTIN SPROCKET BK190 1 3/16 Sheave, 1.188 Inch Bore, 18.750 Inch Outside Dia., 1 Groove, Cast Iron
Item: BA3WHJ
Model: BK190 1 3/16
In Stock
Get it by Thursday, Apr 16
18.750"
1.188"
£294.26/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| 4la Or A Belt Pitch Dia. | 18" |
|---|---|
| 5l Or B Belt Pitch Dia. | 18 2/5" |
| Bore Diameter | 1.188" |
| Bore Type | Finished |
| Bushing Type | H |
| Face Width | 7/8" |
| Hub Diameter | 2" |
| Hub Projection | 21/32" |
| Length | 1 17/32" |
|---|---|
| Material | Cast Iron |
| Number Of Grooves | 1 |
| Outside Dia. | 18 3/4" |
| Outside Diameter | 18 3/4" |
| Series | BK Series |
| Suitable For Use With | A, 4L, B, 5L Cross Section Belts |
| Type | Arm, Spoke Bored to Size Type C |
Product Details
Sheave
Shipping Information
| height | 2.07 |
|---|---|
| length | 47.62 |
| width | 47.62 |
| country of origin | US |
|---|---|
| weight | 5.310000 |
Related Products
| Style | Model | Outside Dia. | Face Width | Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|
| A | BK45 3/4 | 4 1/4" | 7/8" | Cast Iron | 43.04 | |
| B | BK55 3/4 | 5 1/4" | 7/8" | Cast Iron | 49.98 | |
| C | BK100 1 | 9 3/4" | 7/8" | Cast Iron | 99.34 | |
| D | BK100 1 1/4 | 9 3/4" | 7/8" | Cast Iron | 99.34 | |
| E | BK100 1 1/8 | 9 3/4" | 7/8" | Cast Iron | 99.34 | |
| F | BK100 1 3/16 | 9 3/4" | 7/8" | Cast Iron | 99.34 | |
| G | BK25 3/4 | 2 1/2" | 0.813" | Steel | 24.48 |
