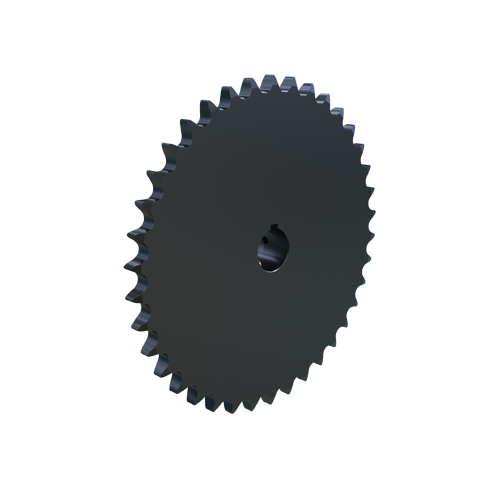

MARTIN SPROCKET 80BS38 1 5/8 Roller Chain Sprocket, Bore To Size, 1.625 Inch Bore, 12.668 Inch Outside Dia. Steel
Item: AJ9FFT
Model: 80BS38 1 5/8
In Stock
Get it by Thursday, Apr 16
12.668"
1.625"
£263.29/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 5/8" |
|---|---|
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | #80 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 5/8" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Diameter | 4 3/4" |
| Hub Outside Dia. | 4 3/4" |
| Individually Packaged | No |
| Keyway Size | 3/8" x 3/16" |
| Length Through Bore | 2" |
| Length Thru Bore | 2" |
| Material | Steel |
|---|---|
| No. Of Teeth | 38 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 38 |
| O.d. | 12.668" |
| Outside Dia. | 12.668" |
| Pitch | 1" |
| Pitch Dia. | 12.1096" |
| Screw Size | 3/8"-16 x 3/8" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 12.668" |
| Storage Dimension Width | 12.668" |
| Type | Type B Bored to Size Single Strand Welded |
Product Details
Shipping Information
| Height | 5.08 |
|---|---|
| Length | 32.18 |
| Width | 32.18 |
| Country Of Origin | US |
|---|---|
| Weight | 11.097000 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | For Chain Number | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 80BS9 1 | 9 | 2.9238" | 3.347" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1" | 80 | 62.83 | |
| B | 80BS9 1 1/8 | 9 | 2.9238" | 3.347" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/8" | 80 | 62.83 | |
| C | 80BS9 1 3/16 | 9 | 2.9238" | - | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 3/16" | 80 | 62.83 | |
| A | 80BS10 1 | 10 | 3.2361" | 3.678" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1" | 80 | 69.19 | |
| D | 80BS10 1 1/8 | 10 | 3.2361" | 3.678" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/8" | 80 | 69.19 | |
| A | 80BS9 1 1/4 | 9 | 2.9238" | 3.347" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | 1 1/4" | 80 | 62.83 | |
| A | 80BS10 1 3/16 | 10 | 3.2361" | 3.678" | 1 5/8" | 5/16"-18 | (1) Over Keyway And (1) At 90° | - | 80 | 69.19 |
