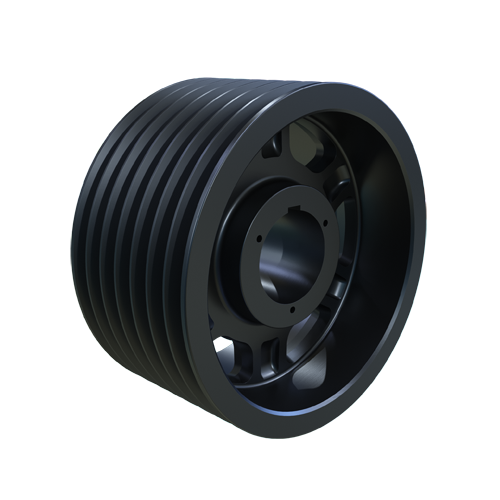

MARTIN SPROCKET 7 C 140 R Sheave, MST Bushing, 14.4 Inch Outside Dia., 7 Groove, 14 Inch Pitch Dia., Cast Iron
Item: BA4PEG
Model: 7 C 140 R
In Stock
Get it by Wednesday, Apr 15
14.4"
£2235.32/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Belt Cross Section | C |
|---|---|
| Bushing Size | R2 |
| Bushing Style | Mst |
| Face Width | 7 1/4" |
| Material | Cast Iron |
| Max. Bore Size | 3 5/8" |
| Min. Bore Size | 1 3/8" |
|---|---|
| No. Of Grooves | 7 |
| Outside Dia. | 14 2/5" |
| Pitch Dia. | 14" |
| Sheave Construction | Arm, Spoke |
Product Details
Sheave
Shipping Information
| height | 18.42 |
|---|---|
| length | 36.58 |
| width | 36.58 |
| country of origin | US |
|---|---|
| weight | 37.350000 |
Related Products
| Style | Model | Outside Dia. | Pitch Dia. | Face Width | Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|
| A | 7 C 110 R | 11 2/5" | 11" | 7 1/4" | Cast Iron | 1,414.75 | |
| B | 7 C 98 R | 10 1/5" | 9 4/5" | 7 1/4" | Cast Iron | 1,269.81 | |
| B | 7 C 90 R | 9 2/5" | 9" | 7 1/4" | Cast Iron | 1,230.26 | |
| C | 7 C 94 R | 9 4/5" | 9 2/5" | 7 1/4" | Cast Iron | 1,256.64 | |
| D | 7 C 240 S | 24.4" | 24" | 7 1/4" | Cast Iron | 2,693.06 | |
| E | 7 C 500 S | 50.4" | 50" | 7 1/4" | Cast Iron | 8,749.42 | |
| B | 7 C 70 Q | 7 2/5" | 7" | 7 1/4" | Cast Iron | 837.88 |
