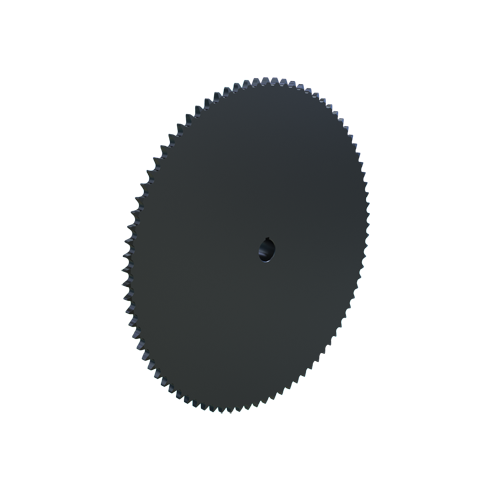

MARTIN SPROCKET 60BS84 1 3/8 Roller Chain Sprocket, Bore To Size, 1.375 Inch Bore, 20.494 Inch Outside Dia. Steel
Item: BA4UAZ
Model: 60BS84 1 3/8
In Stock
Get it by Wednesday, Apr 15
20.494"
1.375"
£455.32/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 3/8" |
|---|---|
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 3/8" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Diameter | 4 3/4" |
| Hub Outside Dia. | 4 3/4" |
| Individually Packaged | No |
| Keyway Size | 5/16" x 5/32" |
| Length Through Bore | 2 1/4" |
| Length Thru Bore | 2" |
| Material | Steel |
|---|---|
| No. Of Teeth | 84 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 84 |
| O.d. | 20.494" |
| Outside Dia. | 20.494" |
| Pitch | 3/4" |
| Pitch Dia. | 20.0582" |
| Screw Size | 5/16"-18 x 5/16" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 2 1/4" |
| Storage Dimension Length | 20.494" |
| Storage Dimension Width | 20.494" |
| Type | Type B Bored to Size Single Strand Welded |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 5.72 |
|---|---|
| length | 52.04 |
| width | 52.04 |
| country of origin | US |
|---|---|
| weight | 20.250000 |
Related Products
| Style | Model | Pitch Dia. | Number Of Teeth | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | For Chain Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 60BS9 3/4 | 2.1929" | 9 | 2.511" | 1 1/4" | 1/4"-20 | 3/4" | 60 | 3/4" | 37.17 | |
| B | 60BS9 1 | 2.1929" | 9 | 2.511" | 1 1/4" | 5/16"-18 | 1" | 60 | 3/4" | 37.17 | |
| C | 60BS10 3/4 | 2.4271" | 10 | 2.758" | 1 1/4" | 1/4"-20 | 3/4" | 60 | 3/4" | 38.82 | |
| D | 60BS10 7/8 | 2.4271" | 10 | 2.758" | 1 1/4" | 1/4"-20 | 7/8" | 60 | 3/4" | 38.82 | |
| E | 60BS10 1 | 2.4271" | 10 | 2.758" | 1 1/4" | 5/16"-18 | 1" | 60 | 3/4" | 38.82 | |
| F | 60BS10 1 1/8 | 2.4271" | 10 | 2.758" | 1 1/4" | 5/16"-18 | - | 60 | 3/4" | 38.82 | |
| G | 60BS10 1 3/16 | 2.4271" | 10 | 2.758" | 1 1/4" | 5/16"-18 | - | 60 | 3/4" | 38.82 |
