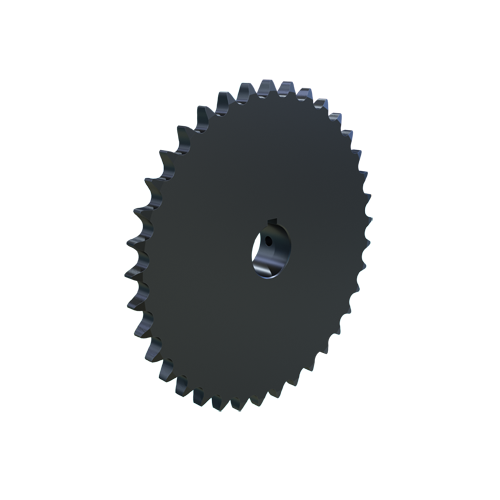

MARTIN SPROCKET 60BS37 1 1/2 Roller Chain Sprocket, Bore To Size, 1.5 Inch Bore, 9.262 Inch Outside Dia. Steel

Item: AJ9EJW
Model: 60BS37 1 1/2
27 In Stock

Ships within 2 days via

£179.5/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bore Diameter 1 1/2"
Bore Type Finished Bore
Chain Number 60
Chain Pitch 3/4"
Chain Size #60
Construction Welded
Construction Type Welded
Finished Bore Size 1 1/2"
For Chain Number 60
For Chain Pitch 3/4"
Hub Configuration B
Hub Diameter 4"
Hub Outside Dia. 4"
Individually Packaged No
Keyway Size 3/8" x 3/16"
Length Through Bore 1 1/4"
Length Thru Bore 1 1/4"
Material Steel
No. Of Teeth 37
Number Of Chain Rows 1
Number Of Teeth 37
O.d. 9.262"
Outside Dia. 9.262"
Pitch 3/4"
Pitch Dia. 8.8437" , 8.844"
Screw Size 3/8"-16 x 3/8"
Set Screw Location (1) Over Keyway And (1) At 90°
Set Screw Size 3/8"-16
Set Screw Thread Type Coarse
Single Strand Tooth Thickness 0.459"
Storage Dimension Height 1 1/4"
Storage Dimension Length 9.262"
Storage Dimension Width 9.262"
Type Bored to Size Type BS

Product Details

Shipping Information

height 3.18
length 23.52
width 23.52
country of origin US
weight 4.608000
