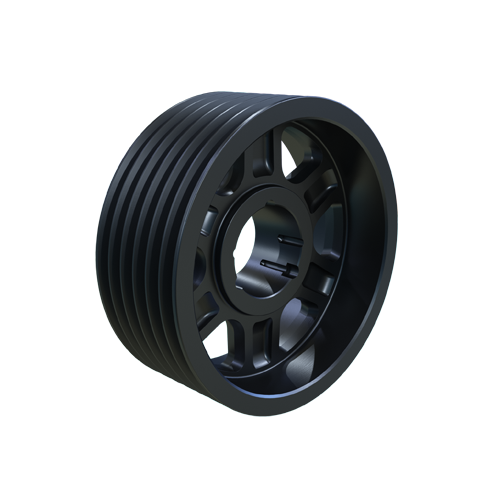

MARTIN SPROCKET 6 C 160 TB Sheave, TB Bushing, 16.4 Inch Outside Dia., 6 Groove, 16 Inch Pitch Dia., Cast Iron
Item: AK4YLE
Model: 6 C 160 TB
In Stock
Get it by Thursday, Apr 16
16.4"
£1266.34/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/2" to 3 1/4" |
|---|---|
| Bore Type | Bushed |
| Bushing Type | TB 3535 |
| Face Width | 6 3/8" |
| Length | 3 1/2" |
| Material | Cast Iron |
| Number Of Grooves | 6 |
|---|---|
| O.d. | 16 2/5" |
| Outside Dia. | 16 2/5" |
| Pitch Dia. | 16" |
| Suitable For Use With | C Cross Section Belt |
| Type | Type A Arm, Spoke |
Product Details
Sheave
Shipping Information
| height | 15.88 |
|---|---|
| length | 41.66 |
| width | 41.66 |
| country of origin | US |
|---|---|
| weight | 45.000000 |
Related Products
| Style | Model | Outside Dia. | Type | Pitch Dia. | Face Width | Material | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 6 C 80 TB | 8 2/5" | Solid Type A-1 | - | 6 3/8" | Cast Iron | Gray | 579.59 | |
| B | 6 C 85 TB | 8.9" | Solid Type A-1 | 8 1/2" | 6 3/8" | Cast Iron | Gray | 584.46 | |
| C | 6 C 95 TB | 9.9" | Type A Solid | 9 1/2" | 6 3/8" | Cast Iron | - | 641.27 | |
| D | 6 C 100 TB | 10 2/5" | Type A-1 Web | - | 6 3/8" | Cast Iron | - | 665.64 | |
| E | 6 C 105 TB | 10.9" | Type A Web | 10 1/2" | 6 3/8" | Cast Iron | - | 694.03 | |
| F | 6 C 110 TB | 11 2/5" | Type A Web | 11" | 6 3/8" | Cast Iron | - | 734.63 | |
| G | 6 C 120 TB | 12 2/5" | Type A-2 Web | - | 6 3/8" | Cast Iron | - | 811.75 |
