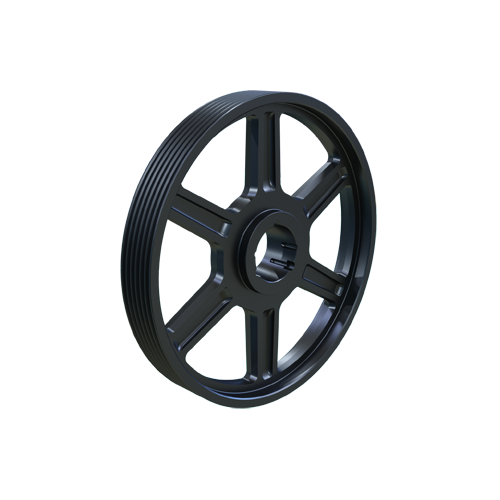

MARTIN SPROCKET 6 5V 3150 TB Sheave, TB Bushing, 31.5 Inch Outside Dia., 6 Groove, 31.4 Inch Pitch Dia., Cast Iron
Item: BA2FDX
Model: 6 5V 3150 TB
In Stock
Get it by Thursday, Apr 16
31.5"
£2715.31/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/2" to 3 5/8" |
|---|---|
| Bore Type | TB Bushed |
| Bushing Type | 4040 |
| Color | Gray |
| Face Width | 4 7/16" |
| Length | 4 7/16" |
| Material | Cast Iron |
| Number Of Grooves | 6 |
|---|---|
| O.d. | 31 1/2" |
| Outside Dia. | 31 1/2" |
| Pitch Dia. | 31 2/5" |
| Suitable For Use With | 5V Cross Section V Belts |
| Type | Arm, Spoke Type A-3 |
Product Details
Shipping Information
| height | 5.08 |
|---|---|
| length | 80.01 |
| width | 80.01 |
| country of origin | US |
|---|---|
| weight | 24.300000 |
Related Products
| Style | Model | Outside Dia. | Type | Pitch Dia. | Material | Face Width | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 6 5V 710 TB | 7.1" | Type A Solid | - | Cast Iron | 4 7/16" | - | 331.19 | |
| B | 6 5V 750 TB | 7 1/2" | Type A Solid | 7 2/5" | Cast Iron | 4 7/16" | - | 361.24 | |
| B | 6 5V 800 TB | 8" | Type A Solid | 7.9" | Cast Iron | 4 7/16" | - | 377.46 | |
| B | 6 5V 850 TB | 8 1/2" | Type A Solid | 8 2/5" | Cast Iron | 4 7/16" | - | 401.82 | |
| B | 6 5V 900 TB | 9" | Type A Solid | 8.9" | Cast Iron | 4 7/16" | - | 446.45 | |
| C | 6 5V 925 TB | 9 1/4" | Type A Solid | 9.15" | Cast Iron | 4 7/16" | - | 462.71 | |
| D | 6 5V 975 TB | 9 3/4" | Type A Solid | 9.65" | Cast Iron | 4 7/16" | - | 470.81 |
