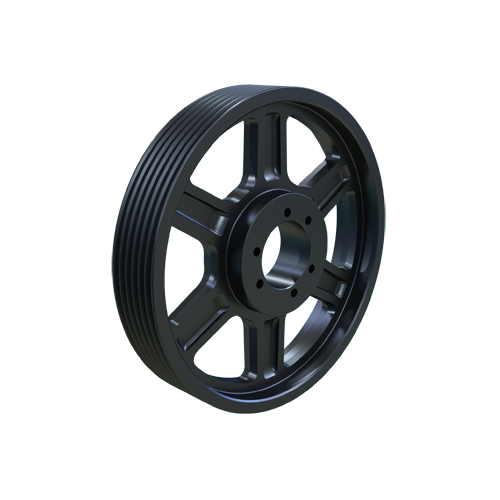

MARTIN SPROCKET 6 5V 2360 J Sheave, QD Bushing, 23.6 Inch Outside Dia., 6 Groove, 23.5 Inch Pitch Dia., Cast Iron
Item: AK6JGJ
Model: 6 5V 2360 J
In Stock
Get it by Wednesday, Apr 15
23.6"
£1610.57/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/4" to 4 1/2" |
|---|---|
| Bore Type | QD Bushed |
| Bushing Type | J |
| Face Width | 4.438" |
| Length | 4.63" |
| Material | Cast Iron |
| Number Of Grooves | 6 |
|---|---|
| O.d. | 23 3/5" |
| Outside Dia. | 23.6" |
| Pitch Dia. | 23 1/2" |
| Suitable For Use With | 5V Cross Section V Belts |
| Type | Arm, Spoke Type B-3 |
Product Details
Sheave
Shipping Information
| height | 5.08 |
|---|---|
| length | 59.94 |
| width | 59.94 |
| country of origin | US |
|---|---|
| weight | 63.000000 |
Related Products
| Style | Model | Outside Dia. | Type | Face Width | Pitch Dia. | Material | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 6 5V 710 SF | 7.1" | Type A Solid | 4 7/16" | - | Cast Iron | - | 320.88 | |
| B | 6 5V 750 SF | 7 1/2" | Solid Type A-1 | 4.438" | 7 2/5" | Cast Iron | - | 349.97 | |
| C | 6 5V 800 E | 8" | Solid Type A-1 | 4.438" | 7.9" | Cast Iron | - | 365.70 | |
| D | 6 5V 850 E | 8 1/2" | Solid Type A-1 | 4.438" | 8 2/5" | Cast Iron | - | 389.30 | |
| E | 6 5V 900 E | 9" | Solid Type A-1 | 4.438" | 8.9" | Cast Iron | - | 432.57 | |
| F | 6 5V 925 E | 9 1/4" | Solid Type A-1 | 4 7/16" | 9.15" | Cast Iron | Gray | 448.28 | |
| F | 6 5V 975 E | 9 3/4" | Solid Type A-1 | 4 7/16" | 9.65" | Cast Iron | Gray | 456.14 |
