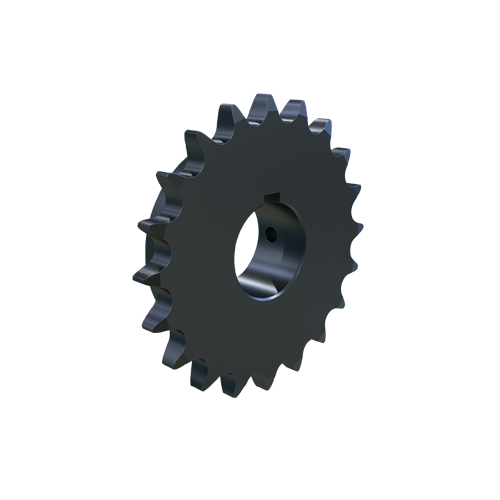

MARTIN SPROCKET 50BS20HT 1 3/8 Roller Chain Sprocket, 1.375 Inch Bore, 4.321 Inch Outside Dia. Steel, Hardened

Item: AJ9NVM
Model: 50BS20HT 1 3/8
12 In Stock

Ships within 2 days via

£117.17/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bore Diameter 1 3/8"
Bore Size 1 3/8"
Bore Type Finished Bore
Chain Number 50
Chain Pitch 5/8"
Chain Size #50
Construction Solid
Construction Type Solid
Finished Bore Size 1 3/8"
For Chain Number 50
For Chain Pitch 5/8"
Hardened Teeth 1
Hub Configuration B
Hub Diameter 3"
Hub Outside Dia. 3"
Individually Packaged Yes
Keyway Size 5/16" x 5/32"
Length Through Bore 1"
Length Thru Bore 1"
Material Steel
Max. Bore Size 2"
Min. Bore Size 1 3/8"
Number Of Chain Rows 1
Number Of Teeth 20
Outside Dia. 4.321"
Pitch 5/8"
Pitch Dia. 3.9953"
Pitch Diameter 3.995"
Screw Size 0.313"-18 x 0.313"
Set Screw Location (1) Over Keyway And (1) At 90°
Set Screw Size 5/16"-18
Set Screw Thread Type Coarse
Single Strand Tooth Thickness 0.343"
Storage Dimension Height 1.06"
Storage Dimension Length 4 5/8"
Storage Dimension Width 4 5/8"
Type Bored to Size Type BS

Product Details

Shipping Information

Height 2.69
Length 10.97
Width 10.97
Country Of Origin US
Weight 0.846000
