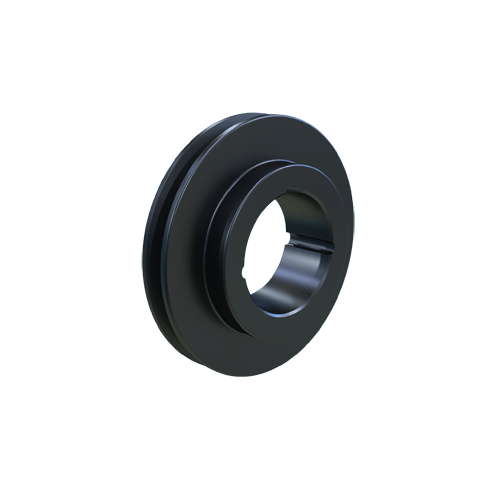

MARTIN SPROCKET 5 8V 3550 M Sheave, QD Bushing, 35.5 Inch Outside Dia., 5 Groove, 35.3 Inch Pitch Dia., Cast Iron
Item: AM2DFA
Model: 5 8V 3550 M
In Stock
Get it by Thursday, Apr 16
35.5"
£4856.11/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 2" to 5 1/2" |
|---|---|
| Bore Type | QD Bushed |
| Bushing Type | M |
| Face Width | 6" |
| Length | 7 1/4" |
| Material | Cast Iron |
| Number Of Grooves | 5 |
| O.d. | 35 1/2" |
|---|---|
| Outside Dia. | 35 1/2" |
| Pitch Dia. | 35.3" |
| Product Datasheet | martin-sprocket-1-3v-1060-sds.pdf |
| Suitable For Use With | 8V Cross Section V Belts |
| Type | Arm, Spoke Type B-3 |
Product Details
Shipping Information
| Height | 18.42 |
|---|---|
| Length | 90.17 |
| Width | 90.17 |
| Country Of Origin | US |
|---|---|
| Weight | 146.250000 |
Related Products
| Style | Model | Outside Dia. | Type | Pitch Dia. | Face Width | Material | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 5 8V 1250 F | 12 1/2" | Solid Type A-1 | 12.3" | 6" | Cast Iron | - | 1,121.41 | |
| B | 5 8V 1320 F | 13 1/5" | Type A-2 Web | 13" | 6" | Cast Iron | Gray | 1,178.64 | |
| C | 5 8V 1400 F | 14" | Type A-2 Web | 13 4/5" | 6" | Cast Iron | - | 1,258.74 | |
| D | 5 8V 1500 F | 15" | Type A-2 Web | 14 4/5" | 6" | Cast Iron | Gray | 1,335.04 | |
| D | 5 8V 1600 F | 16" | Type A-2 Web | 15 4/5" | 6" | Cast Iron | Gray | 1,411.31 | |
| D | 5 8V 1700 J | 17" | Type A-2 Web | 16 4/5" | 6" | Cast Iron | Gray | 1,668.78 | |
| D | 5 8V 1800 J | 18" | Type A-2 Web | 17 4/5" | 6" | Cast Iron | Gray | 1,775.28 |
