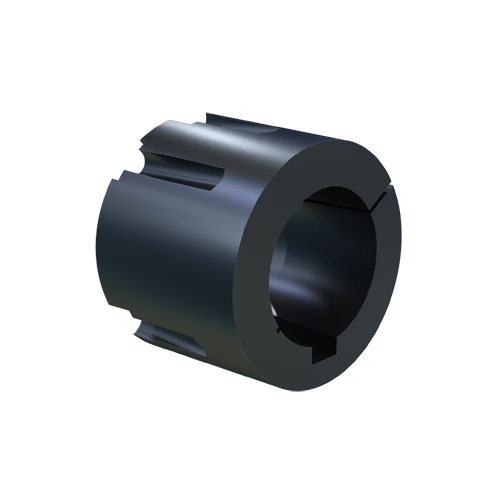

MARTIN SPROCKET 4545 3 11/16 Taper Bushing, 3.688 Inch Bore, 3/4 x 3/8 Inch Key, 4.5 Inch Length, Cast Iron
Item: AM7KKM
Model: 4545 3 11/16
In Stock
Get it by Thursday, Apr 16
3 11/16"
£332.58/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Barrel Diameter | 6 3/8" |
|---|---|
| Bolt Circle Diameter | 6.13" |
| Bore Diameter | 3 11/16" |
| Hub Diameter | 9 1/2" to 10 1/2" |
| Keyway Size | 3/4" x 3/8" |
| Length | 4 1/2" |
| Material | Cast Iron |
|---|---|
| Number Of Bolt Holes | 3 |
| Screw Size | 3/4" x 2" |
| Taper | 8° |
| Torque Rating | 110000 lbs.-in. |
| Type | Standard |
Product Details
Taper Bushing
Shipping Information
| country of origin | US |
|---|
| weight | 8.865000 |
|---|
Related Products
| Style | Model | Keyway Size | Type | Taper | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|
| A | 4545 1 15/16 | 1/2" x 1/4" | Standard | 8° | 277.15 | |
| B | 4545 2 1/8 | - | - | - | 323.34 | |
| C | 4545 2 3/16 | 1/2" x 1/4" | Standard | 8° | 277.15 | |
| D | 4545 2 1/4 | 1/2" x 1/4" | Standard | 8° | 277.15 | |
| E | 4545 2 3/8 | 5/8" x 5/16" | Standard | 8° | 277.15 | |
| F | 4545 2 7/16 | 5/8" x 5/16" | Standard | 8° | 277.15 | |
| F | 4545 2 1/2 | 5/8" x 5/16" | Standard | 8° | 277.15 |
