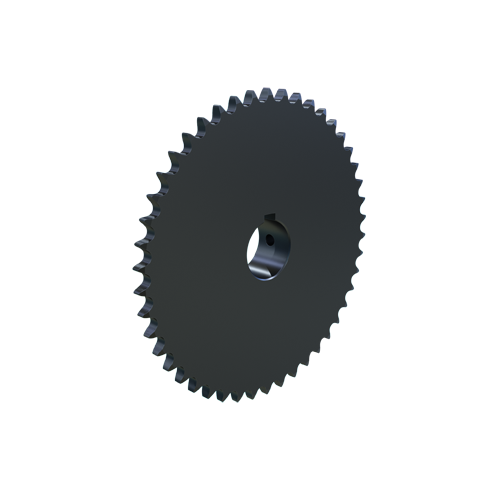

MARTIN SPROCKET 40BS46 1 7/16 Roller Chain Sprocket, Bore To Size, 1.438 Inch Bore, 7.610 Inch Outside Dia. Steel
Item: AJ9DBK
Model: 40BS46 1 7/16
26 In Stock
Ships within 2 days via
7.610"
1.438"
£128.35/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Bore Diameter | 1 7/16" |
|---|---|
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 7/16" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 3 1/2" |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/8" x 3/16" |
| Length Through Bore | 1 1/8" |
| Length Thru Bore | 1 1/8" |
| Material | Steel |
|---|---|
| No. Of Teeth | 46 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 46 |
| O.d. | 7.61" |
| Outside Dia. | 7.61" |
| Pitch | 1/2" |
| Pitch Dia. | 7.3268" |
| Screw Size | 3/8"-16 x 3/8" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1.13" |
| Storage Dimension Length | 7.61" |
| Storage Dimension Width | 7.61" |
| Type | Type B Bored to Size Single Strand Welded |
Shipping Information
| Height | 2.87 |
|---|---|
| Length | 19.33 |
| Width | 19.33 |
| Country Of Origin | US |
|---|---|
| Weight | 2.506500 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | For Chain Number | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 40BS9 1/2 | 9 | 1.4619" | 1.674" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | 25.19 | |
| B | 40BS9 5/8 | 9 | 1.4619" | 1.674" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 40 | 25.19 | |
| C | 40BS10 1/2 | 10 | 1.618" | 1.839" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | 26.12 | |
| D | 40BS10 5/8 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 40 | 26.12 | |
| E | 40BS10 3/4 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | 40 | 26.12 | |
| F | 40BS11 1/2 | 11 | 1.7747" | 2.003" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | 27.30 | |
| G | 40BS11 5/8 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 40 | 27.30 |
