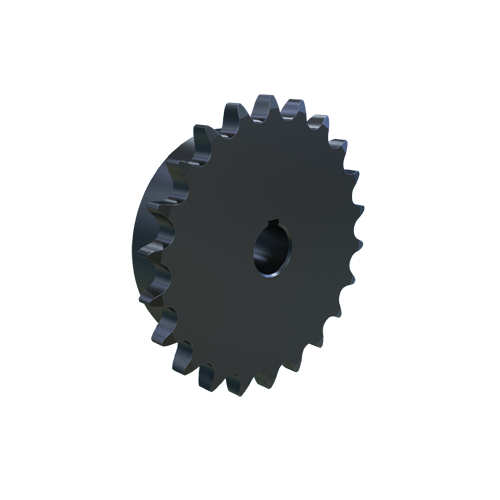

MARTIN SPROCKET 40BS22HT 5/8 Roller Chain Sprocket, 0.625 Inch Bore, 3.778 Inch Outside Dia. Steel, Hardened
Item: AJ9LJH
Model: 40BS22HT 5/8
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
3.778"
0.625"
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 5/8" |
|---|---|
| Bore Size | 5/8" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 2 7/8" |
| Hub Outside Dia. | 2 7/8" |
| Individually Packaged | Yes |
| Keyway Size | 3/16" x 3/32" |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
|---|---|
| Max. Bore Size | 1 7/8" |
| Min. Bore Size | 5/8" |
| No. Of Teeth | 22 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 22 |
| Outside Dia. | 3.778" |
| Pitch | 1/2" |
| Pitch Dia. | 3.5133" |
| Screw Size | 1/4"-20 x 1/4" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 4 5/16" |
| Storage Dimension Width | 4 5/16" |
| Type | Bored to Size Type BS |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 2.69 |
|---|---|
| length | 9.6 |
| width | 9.6 |
| country of origin | US |
|---|---|
| weight | 0.859500 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | For Chain Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 40BS9HT 5/8 | 9 | 1.4619" | 1.674" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | 45.00 | |
| B | 40BS10HT 1/2 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (2) 90° Apart (No Keyway) | 1/2" | 1/2" | 47.55 | |
| C | 40BS10HT 5/8 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | 47.55 | |
| D | 40BS10HT 3/4 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | 1/2" | 47.55 | |
| E | 40BS11HT 1/2 | 11 | 1.7747" | 2.003" | 7/8" | #10-24 | (1) Over Keyway And (1) At 90° | 1/2" | 1/2" | 50.12 | |
| F | 40BS11HT 5/8 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | 50.12 | |
| G | 40BS11HT 3/4 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | 1/2" | 50.12 |
