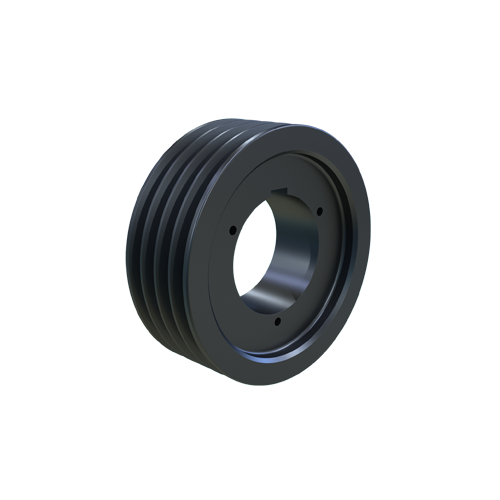

MARTIN SPROCKET 4 5V 850 R Sheave, MST Bushing, 8.5 Inch Outside Dia., 4 Groove, 8.4 Inch Pitch Dia., Cast Iron
Item: BA6AFL
Model: 4 5V 850 R
In Stock
Get it by Wednesday, Apr 15
8.5"
£566.7/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Belt Cross Section | 5V |
|---|---|
| Bushing Size | R1 |
| Bushing Style | Mst |
| Face Width | 3.062" |
| Material | Cast Iron |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
|---|---|
| No. Of Grooves | 4 |
| Outside Dia. | 8 1/2" |
| Pitch Dia. | 8 2/5" |
| Sheave Construction | Web |
Product Details
Sheave
Shipping Information
| height | 7.78 |
|---|---|
| length | 21.59 |
| width | 21.59 |
| country of origin | US |
|---|---|
| weight | 10.260000 |
Related Products
| Style | Model | Outside Dia. | Type | Material | Pitch Dia. | Face Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|
| A | 4 5V 750 Q | 7 1/2" | - | Cast Iron | 7 2/5" | 3.062" | 423.65 | |
| B | 4 5V 5000 Q | 50" | - | Cast Iron | 49.9" | 3.062" | 4,658.29 | |
| C | 4 5V 710 Q | 7.1" | - | Cast Iron | 7" | 3.062" | 402.47 | |
| D | 4 5V 630 Q | 6.3" | - | Steel | 6 1/5" | 3.062" | 352.33 | |
| E | 4 5V 1090 R | 10.9" | - | Cast Iron | 10 4/5" | 3.062" | 588.45 | |
| D | 4 5V 520 Q | 5 1/5" | - | Steel | 5.1" | 3.062" | 286.25 | |
| F | 4 5V 925 R | 9 1/4" | - | Cast Iron | 9.15" | 3.062" | 487.99 |
