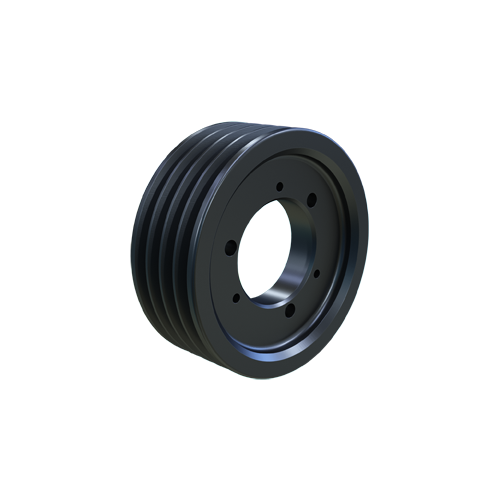

MARTIN SPROCKET 4 3V 500 SDS Sheave, QD Bushing, 5 Inch Outside Dia., 4 Groove, 4.95 Inch Pitch Dia., Steel
Item: AK6ACH
Model: 4 3V 500 SDS
In Stock
Get it by Thursday, Apr 16
5"
£137.33/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1/2" to 2" |
|---|---|
| Bore Type | QD Bushed |
| Bushing Type | SDS |
| Face Width | 1.906" |
| Length | 1.91" |
| Material | Steel |
| Number Of Grooves | 4 |
|---|---|
| Outside Dia. | 5" |
| Outside Diameter | 5" |
| Pitch Dia. | 4.95" |
| Suitable For Use With | 3V Cross Section V Belts |
| Type | Solid Type A-1 |
Product Details
Sheave
Shipping Information
| height | 4.85 |
|---|---|
| length | 12.7 |
| width | 12.7 |
| country of origin | US |
|---|---|
| weight | 2.250000 |
Related Products
| Style | Model | Type | Outside Dia. | Face Width | Material | Pitch Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|
| A | 4 3V 265 JA | Solid Type D-1 | 2.65" | 1.906" | Steel | 2 3/5" | 82.39 | |
| B | 4 3V 280 JA | Solid Type D-1 | 2 4/5" | 1 29/32" | Steel | - | 83.92 | |
| C | 4 3V 300 SH | Solid Type E-1 | 3" | 1.906" | Steel | 2.95" | 84.29 | |
| A | 4 3V 315 SH | Solid Type E-1 | 3.15" | 1.906" | Steel | 3.1" | 85.43 | |
| D | 4 3V 335 SH | Solid Type D-1 | 3.35" | 1.906" | Steel | 3.3" | 88.49 | |
| A | 4 3V 365 SH | Solid Type D-1 | 3.65" | 1.906" | Steel | 3 3/5" | 92.30 | |
| B | 4 3V 412 SH | Solid Type A-1 | 4.12" | 1 29/32" | Steel | 4.07" | 96.50 |
