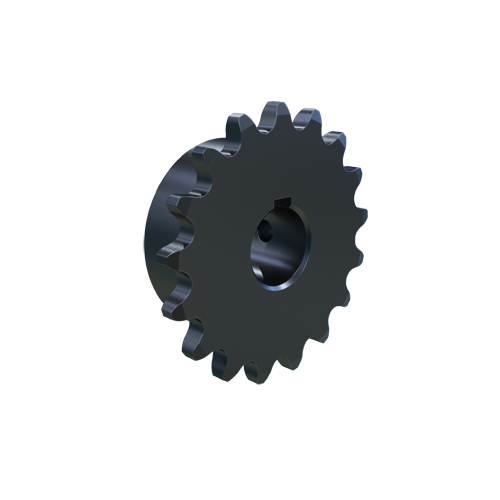

MARTIN SPROCKET 35BS17HT 5/8 Roller Chain Sprocket, 0.625 Inch Bore, 2.231 Inch Outside Dia. Steel, Hardened
Item: AJ9GTU
Model: 35BS17HT 5/8
29 In Stock
Ships within 2 days via
2.231"
0.625"
£56.35/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 5/8" |
|---|---|
| Bore Size | 5/8" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Chain Size | #35 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 1.594" |
| Hub Outside Dia. | 1.5938" |
| Individually Packaged | Yes |
| Keyway Size | 3/16" x 3/32" |
| Length Through Bore | 3/4" |
| Length Thru Bore | 3/4" |
| Material | Steel |
| Max. Bore Size | 1 1/16" |
|---|---|
| Min. Bore Size | 5/8" |
| No. Of Teeth | 17 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 17 |
| O.d. | 2.231" |
| Outside Dia. | 2.231" |
| Pitch | 3/8" |
| Pitch Dia. | 2.0408" |
| Pitch Diameter | 2.041" |
| Screw Size | 1/4"-20 x 1/4" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 13/16" |
| Storage Dimension Length | 2 5/16" |
| Storage Dimension Width | 2 5/16" |
| Type | Bored to Size Type BS |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 1.9 |
|---|---|
| length | 5.66 |
| width | 5.66 |
| country of origin | US |
|---|---|
| weight | 0.225000 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | For Chain Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 35BS10HT 1/2 | 10 | 1.2135" | 1.379" | 3/4" | #10-24 | 1/2" | 35 | 3/8" | 34.62 | |
| B | 35BS10HT 5/8 | 10 | 1.2135" | 1.379" | 3/4" | 1/4"-20 | 5/8" | 35 | 3/8" | 34.62 | |
| C | 35BS11HT 5/8 | 11 | 1.331" | 1.502" | 3/4" | 1/4"-20 | 5/8" | 35 | 3/8" | 36.55 | |
| D | 35BS12HT 1/2 | 12 | 1.4489" | 1 5/8" | 3/4" | #10-24 | 1/2" | 35 | 3/8" | 38.00 | |
| E | 35BS12HT 5/8 | 12 | 1.4489" | 1 5/8" | 3/4" | 1/4"-20 | 5/8" | 35 | 3/8" | 38.00 | |
| C | 35BS12HT 3/4 | 12 | 1.4489" | 1 5/8" | 3/4" | 1/4"-20 | 3/4" | 35 | 3/8" | 38.00 | |
| F | 35BS13HT 5/8 | 13 | 1.567" | 1.746" | 3/4" | 1/4"-20 | 5/8" | 35 | 3/8" | 39.95 |
