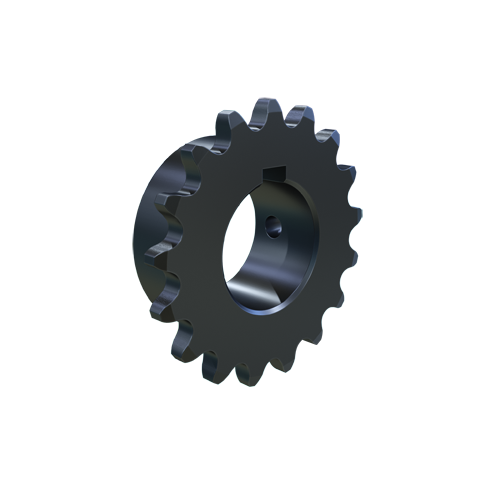

MARTIN SPROCKET 35BS17 1 Roller Chain Sprocket, Bore To Size, 1 Inch Bore, 2.231 Inch Outside Dia. Steel

Item: AJ8VTX
Model: 35BS17 1
11 In Stock

Ships within 2 days via

£34.43/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bore Diameter 1"
Bore Size 1"
Bore Type Finished Bore
Chain Number 35
Chain Pitch 3/8"
Chain Size #35
Construction Solid
Construction Type Solid
Finished Bore Size 1"
For Chain Number 35
For Chain Pitch 3/8"
Hub Configuration B
Hub Diameter 1.594"
Hub Outside Dia. 1.5938"
Individually Packaged Yes
Keyway Size 1/4" x 1/8"
Length Through Bore 3/4"
Length Thru Bore 3/4"
Material Steel
No. Of Teeth 17
Number Of Chain Rows 1
Number Of Teeth 17
O.d. 2.231"
Outside Dia. 2.231"
Pitch 3/8"
Pitch Dia. 2.0408"
Pitch Diameter 2.041"
Screw Size 1/4"-20 x 1/4"
Set Screw Location (1) Over Keyway And (1) At 90°
Set Screw Size 5/16"-18
Set Screw Thread Type Coarse
Single Strand Tooth Thickness 0.168"
Storage Dimension Height 15/16"
Storage Dimension Length 3 1/2"
Storage Dimension Width 3 1/2"
Type Bored to Size Type BS

Product Details

Shipping Information

Height 1.9
Length 5.66
Width 5.66
Country Of Origin US
Weight 0.148500
