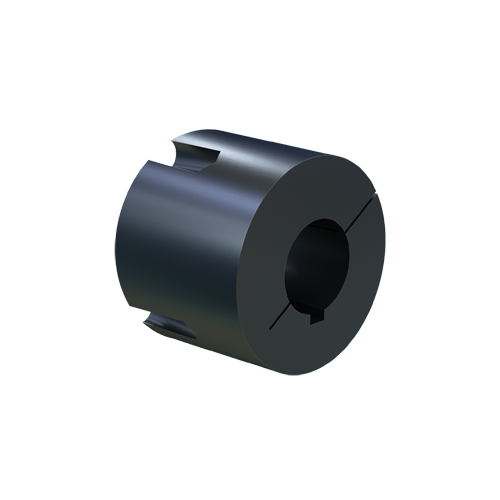

MARTIN SPROCKET 3030 1 11/16 Taper Bushing, 1.688 Inch Bore, 3/8 x 3/16 Inch Key, 3 Inch Length, Cast Iron
Item: AJ9VPZ
Model: 3030 1 11/16
10 In Stock
Ships within 2 days via
1 11/16"
£137.86/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Barrel Diameter | 4 1/4" |
|---|---|
| Bolt Circle Diameter | 4" |
| Bore Diameter | 1 11/16" |
| Bore Size | 1 11/16" |
| Class | Class 20, Class 30 |
| Hub Diameter | 6 1/4", 5 3/4" |
| Keyway Size | 3/8" x 3/16" |
| Length | 3" |
| Material | Cast Iron |
|---|---|
| Number Of Bolt Holes | 2 |
| Screw Size | 5/8"-11 x 1 1/4" |
| Suitable For Use With | Taper Bushed Parts |
| Taper | 8° |
| Torque Rating | 24000 lbs.-in. |
| Type | Standard |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
| Country Of Origin | US |
|---|---|
| Weight | 3.582000 |
Related Products
| Style | Model | Keyway Size | Bore Size | Taper | Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|
| A | 3030 15/16 | 5/16" x 5/32" | - | 8° | Standard | 114.88 | |
| B | 3030 1 | 1/4" x 1/8" | 1" | 8° | Standard | 114.88 | |
| C | 3030 1 1/8 | 1/4" x 1/8" | 1 1/8" | 8° | Standard | 114.88 | |
| D | 3030 1 3/16 | 1/4" x 1/8" | - | 8° | Standard | 114.88 | |
| E | 3030 1 1/4 | 1/4" x 1/8" | 1 1/4" | 8° | Standard | 114.88 | |
| F | 3030 1 3/8 | 5/16" x 5/32" | 1 3/8" | 8° | Standard | 114.88 | |
| G | 3030 1 7/16 | 3/8" x 3/16" | 1 7/16" | 8° | Standard | 114.88 |
