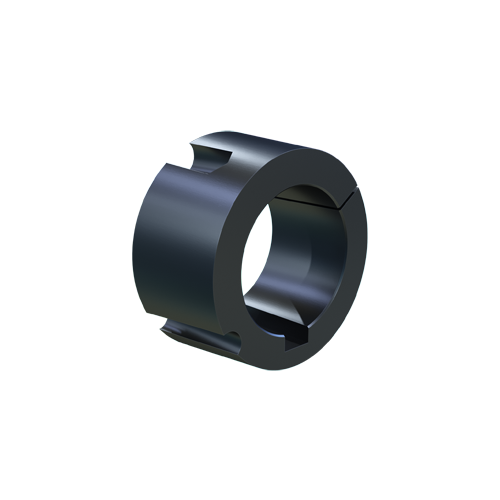

MARTIN SPROCKET 3020 1 1/16 Taper Bushing, Standard, 1/4 X 1/8 Inch Key, 1 1/16 Inch Bore, Steel
Item: AM3ANE
Model: 3020 1 1/16
17 In Stock
Ships within 2 days via
1 1/16"
£94.45/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Barrel Diameter | 4 1/4" |
|---|---|
| Bolt Circle Diameter | 4" |
| Bore Diameter | 1 1/16" |
| Hub Diameter | 5 5/8" |
| Keyway Size | 1/4" x 1/8" |
| Length | 2" |
| Material | Steel |
| Number Of Bolt Holes | 2 |
|---|---|
| Screw Size | 5/8"-11 x 1 1/4" |
| Suitable For Use With | Taper Bushed Parts |
| Taper | 8° |
| Torque Rating | 24000 lbs.-in. |
| Type | Standard |
Product Details
Taper Bushing
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 2.844000 |
Related Products
| Style | Model | Keyway Size | Bore Size | Taper | Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|
| A | 3020 1 | 1/4" x 1/8" | 1" | 8° | Standard | 78.71 | |
| B | 3020 1 1/8 | 1/4" x 1/8" | 1 1/8" | 8° | Standard | 78.71 | |
| A | 3020 1 3/16 | 1/4" x 1/8" | 1 3/16" | 8° | Standard | 78.71 | |
| A | 3020 1 1/4 | 1/4" x 1/8" | 1 1/4" | 8° | Standard | 78.71 | |
| A | 3020 1 3/8 | 5/16" x 5/32" | 1 3/8" | 8° | Standard | 78.71 | |
| A | 3020 1 7/16 | 3/8" x 3/16" | 1 7/16" | 8° | Standard | 78.71 | |
| C | 3020 1 1/2 | 3/8" x 3/16" | 1 1/2" | 8° | Standard | 78.71 |
