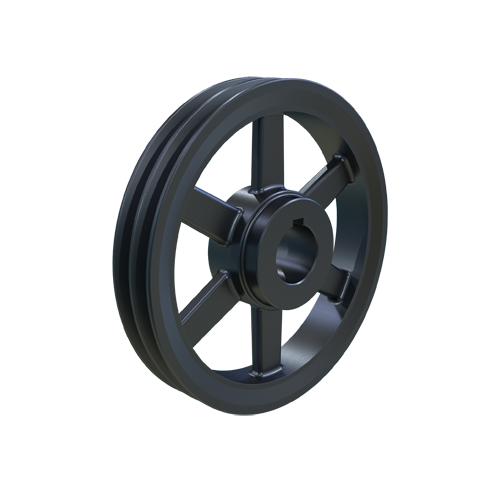

MARTIN SPROCKET 2AK84 1 7/16 Sheave, 1.438 Inch Bore, 8.250 Inch Outside Dia., 2 Groove, Cast Iron
Item: BA6RWU
Model: 2AK84 1 7/16
In Stock
Get it by Thursday, Apr 16
8.250"
1.438"
£166.46/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| 3l Belt Pitch Dia. | 7.66" |
|---|---|
| 4la Or A Belt Pitch Dia. | 8" |
| Bore Diameter | 1 7/16" |
| Bore Type | Finished |
| Bushing Type | H |
| Face Width | 1 3/8" |
| Hub Diameter | 2 1/8" |
| Hub Projection | 0.344" |
| Length | 1 23/32" |
|---|---|
| Material | Cast Iron |
| Number Of Grooves | 2 |
| Outside Dia. | 8 1/4" |
| Outside Diameter | 8 1/4" |
| Series | 2AK Series |
| Suitable For Use With | A, 3L, 4L Cross Section Belts |
| Type | Arm, Spoke Bored to Size Type C |
Product Details
Shipping Information
| Height | 5.08 |
|---|---|
| Length | 20.96 |
| Width | 20.96 |
| Country Of Origin | US |
|---|---|
| Weight | 3.240000 |
