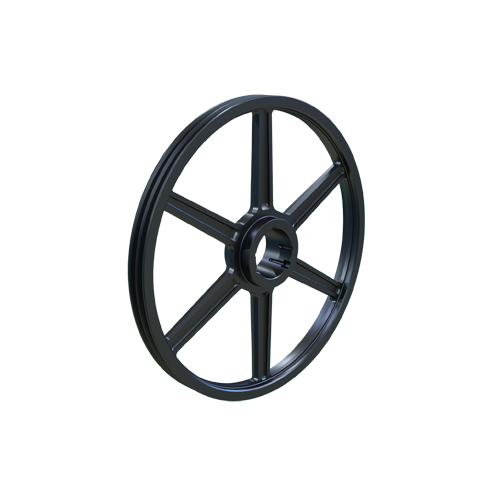

MARTIN SPROCKET 2 C 300 TB Sheave, TB Bushing, 30.4 Inch Outside Dia., 2 Groove, 30 Inch Pitch Dia., Cast Iron
Item: AZ9ECQ
Model: 2 C 300 TB
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
30.4"
£1384.76/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/2" to 3 1/4" |
|---|---|
| Bore Type | TB Bushed |
| Bushing Type | 3535 |
| Color | Gray |
| Face Width | 2 3/8" |
| Length | 3 1/2" |
| Material | Cast Iron |
| Number Of Grooves | 2 |
|---|---|
| Outside Dia. | 30.4" |
| Outside Diameter | 30.4" |
| Pitch Dia. | 30" |
| Suitable For Use With | C Cross Section V Belts |
| Type | Arm, Spoke Type C-3 |
Product Details
Sheave
Shipping Information
| height | 5.08 |
|---|---|
| length | 77.22 |
| width | 77.22 |
| country of origin | US |
|---|---|
| weight | 11.250000 |
Related Products
| Style | Model | Outside Dia. | Type | Pitch Dia. | Face Width | Material | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 2 C 70 TB | 7 2/5" | Solid Type A-1 | - | 2 3/8" | Cast Iron | Gray | 315.14 | |
| A | 2 C 75 TB | 7.9" | Solid Type A-1 | 7 1/2" | 2 3/8" | Cast Iron | Gray | 328.03 | |
| B | 2 C 80 TB | 8 2/5" | Type A-2 Web | - | 2 3/8" | Cast Iron | Gray | 350.49 | |
| C | 2 C 85 TB | 8.9" | Type A-2 Web | 8 1/2" | 2 3/8" | Cast Iron | Gray | 356.70 | |
| C | 2 C 90 TB | 9 2/5" | Type A-2 Web | - | 2 3/8" | Cast Iron | Gray | 362.89 | |
| C | 2 C 95 TB | 9.9" | Type A-2 Web | 9 1/2" | 2 3/8" | Cast Iron | Gray | 382.00 | |
| C | 2 C 100 TB | 10 2/5" | Type A-2 Web | - | 2 3/8" | Cast Iron | Gray | 420.20 |
