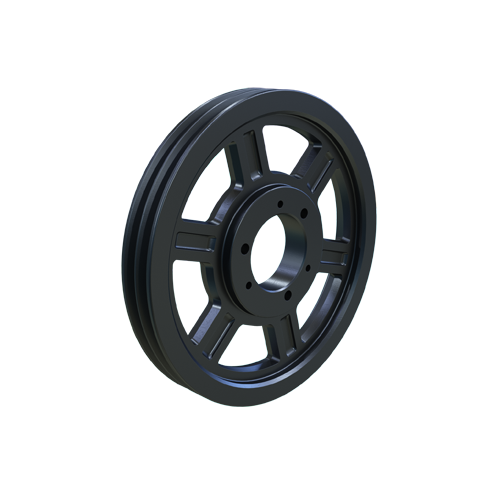

MARTIN SPROCKET 2 5V 1250 SF Sheave, QD Bushing, 12.5 Inch Outside Dia., 2 Groove, 12.4 Inch Pitch Dia., Cast Iron
Item: AK6AUD
Model: 2 5V 1250 SF
In Stock
Get it by Wednesday, Apr 15
12.5"
£384.48/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 0.5" to 2.938" |
|---|---|
| Bore Type | QD Bushed |
| Bushing Type | SF |
| Face Width | 1.688" |
| Length | 2 1/16" |
| Material | Cast Iron |
| Number Of Grooves | 2 |
|---|---|
| Outside Dia. | 12 1/2" |
| Outside Diameter | 12 1/2" |
| Pitch Dia. | 12 2/5" |
| Suitable For Use With | 5V Cross Section V Belts |
| Type | Arm, Spoke Type C-3 |
Product Details
Sheave
Shipping Information
| height | 5.23 |
|---|---|
| length | 31.75 |
| width | 31.75 |
| country of origin | US |
|---|---|
| weight | 8.100000 |
Related Products
| Style | Model | Outside Dia. | Type | Face Width | Pitch Dia. | Material | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 2 5V 710 SK | 7.1" | Solid Type C-1 | 1.688" | - | Cast Iron | - | 228.85 | |
| B | 2 5V 750 SK | 7 1/2" | Solid Type C-1 | 1.688" | 7 2/5" | Cast Iron | - | 232.67 | |
| C | 2 5V 800 SK | 8" | Solid Type C-1 | 1.688" | 7.9" | Cast Iron | - | 236.50 | |
| D | 2 5V 850 SK | 8 1/2" | Solid Type C-1 | 1.688" | 8 2/5" | Cast Iron | - | 244.12 | |
| E | 2 5V 900 SK | 9" | Type C-2 Web | 1.688" | 8.9" | Cast Iron | - | 259.37 | |
| F | 2 5V 925 SK | 9 1/4" | Type C-2 Web | 1.688" | 9.15" | Cast Iron | - | 277.30 | |
| G | 2 5V 975 SK | 9 3/4" | Arm, Spoke Type C-3 | 1.688" | 9.65" | Cast Iron | - | 287.98 |
