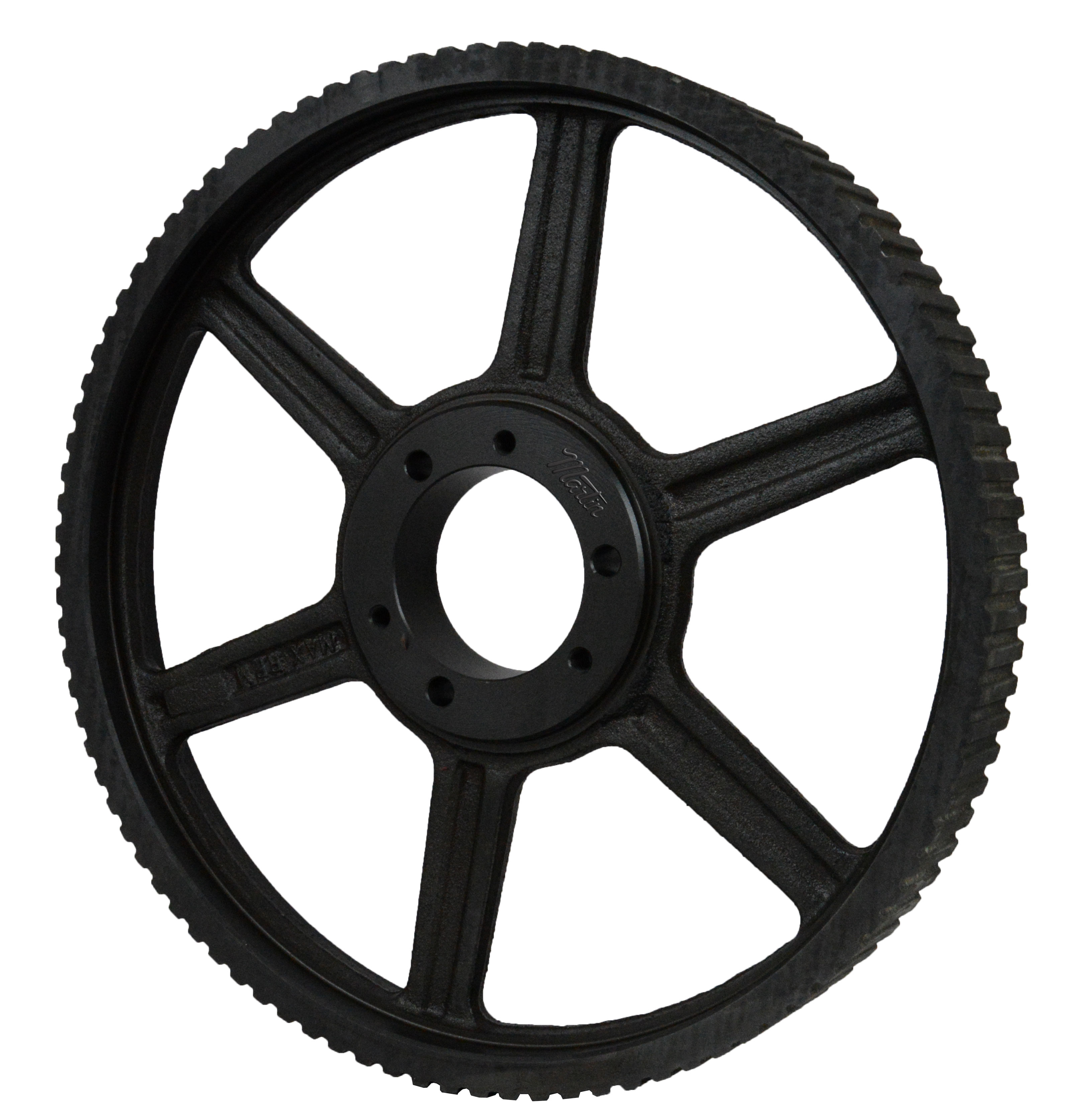

MARTIN SPROCKET 120H150 SF Timing Pulley, 120 Teeth, 1.813 Inch Face Width, 1.5 Inch Belt Width, Cast Iron
Item: AK6DAR
Model: 120H150 SF
In Stock
Get it by Thursday, Apr 16
1.813"
120
£675.28/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 0.5" to 2.938" |
|---|---|
| Bore Type | QD Bushed |
| Bushing Type | SF |
| Face Width | 1.813" |
| Length | 9/32" |
| Material | Cast Iron |
| No. Of Grooves | 120 |
| No. Of Teeth | 120 |
|---|---|
| O.d. | 19.045" |
| Pitch | 1/2" |
| Pitch Dia. | 19.099" |
| Suitable For Use With | 1 1/2" W Type H Belt |
| Type | Spoked Type H-3 |
Product Details
Timing Pulley
Shipping Information
| height | 0.71 |
|---|---|
| length | 48.39 |
| width | 48.39 |
| country of origin | US |
|---|---|
| weight | 15.750000 |
Related Products
| Style | Model | Face Width | Material | Type | Flange Dia. | Pitch Dia. | Bore Type | Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 30H100 SD | 1.312" | Cast Iron | Solid Type GF-1 | 5.005" | - | QD Bushed | 1/2" | 159.94 | |
| B | 32H100 SK | 1.313" | Cast Iron | Solid Type GF-1 | 5.323" | - | QD Bushed | 1/2" | 171.57 | |
| C | 36H100 SK | 1.313" | Cast Iron | Solid Type GF-1 | 5.959" | - | QD Bushed | 1/2" | 200.53 | |
| D | 40H100 SK | 1.313" | Cast Iron | Solid Type GF-1 | 6.595" | - | QD Bushed | 1/2" | 224.72 | |
| E | 44H100 SK | 1.313" | Cast Iron | Solid Type GF-1 | 7.231" | 7.003" | QD Bushed | 1/2" | 264.10 | |
| F | 48H100 SK | 1.313" | Cast Iron | Solid Type GF-2 | 7.867" | - | QD Bushed | 1/2" | 234.80 | |
| G | 60H100 SF | 1.313" | Cast Iron | Type H-2 Web | - | - | QD Bushed | 1/2" | 240.97 |
