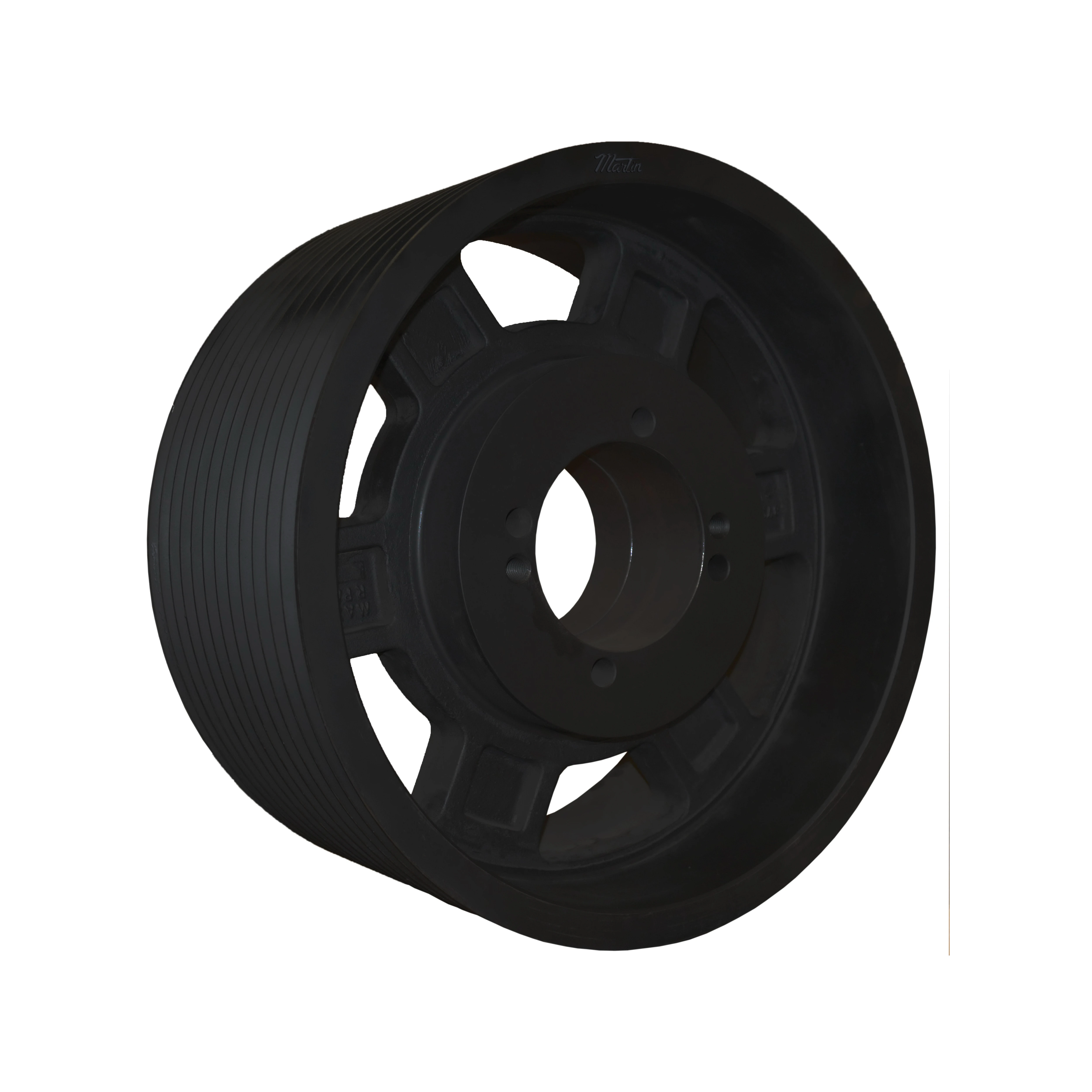

MARTIN SPROCKET 12 8V 3550 P Sheave, QD Bushing, 35.5 Inch Outside Dia., 12 Groove, 35.3 Inch Pitch Dia., Cast Iron
Item: AZ9XTE
Model: 12 8V 3550 P
In Stock
Get it by Thursday, Apr 16
35.5"
£9377.92/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 2 15/16" to 5 15/16" |
|---|---|
| Bore Type | QD Bushed |
| Bushing Type | P |
| Color | Gray |
| Face Width | 13 7/8" |
| Length | 14" |
| Material | Cast Iron |
| No. Of Grooves | 12 |
|---|---|
| O.d. | 35 1/2" |
| Outside Dia. | 35 1/2" |
| Pitch Dia. | 35.3" |
| Suitable For Use With | 8V Cross Section V Belts |
| Type | Arm, Spoke Type A-3 |
Product Details
Sheave
Shipping Information
| height | 35.56 |
|---|---|
| length | 90.17 |
| width | 90.17 |
| country of origin | US |
|---|---|
| weight | 362.250000 |
Related Products
| Style | Model | Outside Dia. | Type | Pitch Dia. | Face Width | Material | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 12 8V 1400 M | 14" | Solid Type A-1 | 13 4/5" | 13 7/8" | Cast Iron | - | 4,392.46 | |
| B | 12 8V 2120 N | 21.2" | Type A-2 Web | 21" | 13 7/8" | Cast Iron | Gray | 5,205.88 | |
| C | 12 8V 1900 N | 19" | Type A-2 Web | 18 4/5" | 13 7/8" | Cast Iron | - | 4,880.52 | |
| D | 12 8V 1600 M | 16" | Solid Type A-1 | 15 4/5" | 13 7/8" | Cast Iron | Gray | 4,555.15 | |
| E | 12 8V 1800 M | 18" | Solid Type A-1 | 17 4/5" | 13 7/8" | Cast Iron | Gray | 4,717.83 | |
| F | 12 8V 1250 M | 12 1/2" | Solid Type A-1 | 12.3" | 13 7/8" | Cast Iron | Gray | 4,229.78 | |
| G | 12 8V 1320 M | 13 1/5" | Solid Type A-1 | 13" | 13 7/8" | Cast Iron | Gray | 4,311.12 |
