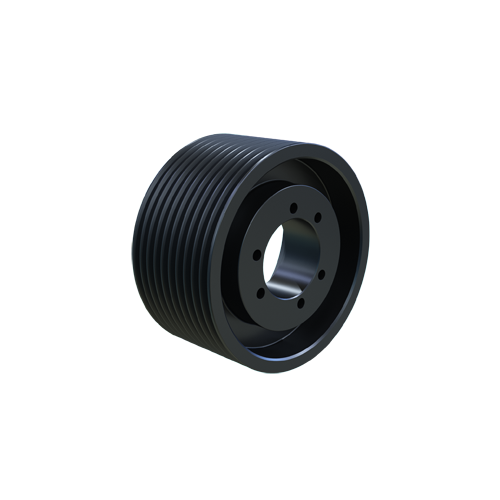

MARTIN SPROCKET 10 5V 1400 J Sheave, QD Bushing, 14 Inch Outside Dia., 10 Groove, 13.9 Inch Pitch Dia., Cast Iron
Item: AK6BNW
Model: 10 5V 1400 J
In Stock
Get it by Thursday, Apr 16
14"
£1561.76/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/4" to 4 1/2" |
|---|---|
| Bore Type | QD Bushed |
| Bushing Type | J |
| Face Width | 7.188" |
| Length | 7.19" |
| Material | Cast Iron |
| No. Of Grooves | 10 |
| Outside Dia. | 13.9" |
|---|---|
| Outside Diameter | 14" |
| Pitch Dia. | 13.9" |
| Product Datasheet | martin-sprocket-1-3v-1060-sds.pdf |
| Suitable For Use With | 5V Cross Section V Belts |
| Type | Solid Type A-1 |
Product Details
Shipping Information
| Height | 18.26 |
|---|---|
| Length | 35.56 |
| Width | 35.56 |
| Country Of Origin | US |
|---|---|
| Weight | 54.900000 |
Related Products
| Style | Model | Outside Dia. | Type | Face Width | Pitch Dia. | Material | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 10 5V 800 E | 8" | Solid Type A-1 | 7.188" | 7.9" | Cast Iron | - | 495.47 | |
| B | 10 5V 850 E | 8 1/2" | Solid Type A-1 | 7.188" | 8 2/5" | Cast Iron | - | 534.79 | |
| C | 10 5V 900 F | 9" | Solid Type A-1 | 7.188" | 8.9" | Cast Iron | - | 589.85 | |
| D | 10 5V 925 F | 9 1/4" | Type A Solid | 7 3/16" | 9.15" | Cast Iron | - | 597.72 | |
| E | 10 5V 975 F | 9 3/4" | Solid | 7.188" | 9.65" | Cast Iron | - | 707.82 | |
| F | 10 5V 1030 F | 10.3" | Solid Type A-1 | 7 3/16" | 10 1/5" | Cast Iron | Gray | 731.42 | |
| G | 10 5V 1090 F | 10.9" | Solid Type A-1 | 7.188" | 10 4/5" | Cast Iron | - | 755.00 |
