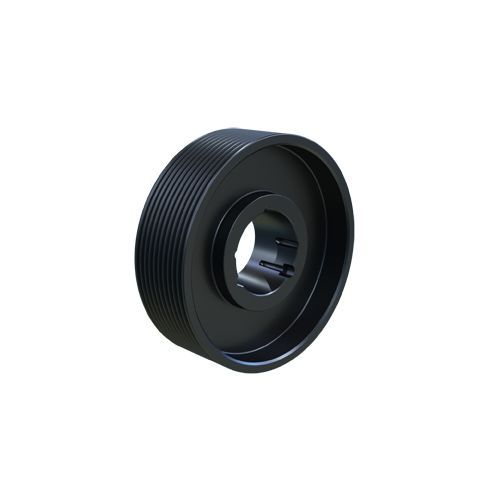

MARTIN SPROCKET 10 3V 1400 TB Sheave, TB Bushing, 14 Inch Outside Dia., 10 Groove, 13.95 Inch Pitch Dia., Cast Iron
Item: AK4ZAK
Model: 10 3V 1400 TB
In Stock
Get it by Thursday, Apr 16
£803.63/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/2" to 3 1/4" |
|---|---|
| Bore Type | TB Bushed |
| Bushing Type | 3535 |
| Class | Class 30 |
| Color | Gray |
| Face Width | 4 11/32" |
| Length | 4.69" |
| Material | Cast Iron |
|---|---|
| No. Of Grooves | 10 |
| Outside Dia. | 14" |
| Outside Diameter | 14" |
| Pitch Dia. | 13.95" |
| Suitable For Use With | 3V Cross Section V Belts |
| Type | Type A-2 Web |
Product Details
Shipping Information
| Height | 5.08 |
|---|---|
| Length | 35.56 |
| Width | 35.56 |
| Country Of Origin | US |
|---|---|
| Weight | 25.920000 |
Related Products
| Style | Model | Type | Outside Dia. | Face Width | Material | Pitch Dia. | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 10 3V 475 TB | Solid Type A-1 | 4 3/4" | 4 11/32" | Cast Iron | 4.7" | Gray | 280.07 | |
| B | 10 3V 500 TB | Solid Type A-1 | 5" | 4.344" | Cast Iron | 4.95" | - | 284.10 | |
| C | 10 3V 530 TB | Solid Type A-1 | 5.3" | 4 11/32" | Cast Iron | 5 1/4" | Gray | 286.14 | |
| D | 10 3V 560 TB | Solid Type A-1 | 5 3/5" | 4.344" | Steel | 5.55" | - | 287.36 | |
| E | 10 3V 650 TB | Solid Type A-1 | 6 1/2" | 4 11/32" | Steel | 6.45" | - | 304.41 | |
| F | 10 3V 690 TB | Solid Type A-1 | - | 4 11/32" | Cast Iron | 6.85" | Gray | 311.32 | |
| G | 10 3V 800 TB | Solid Type A-1 | 8" | 4 11/32" | Cast Iron | 7.95" | Gray | 414.00 |
