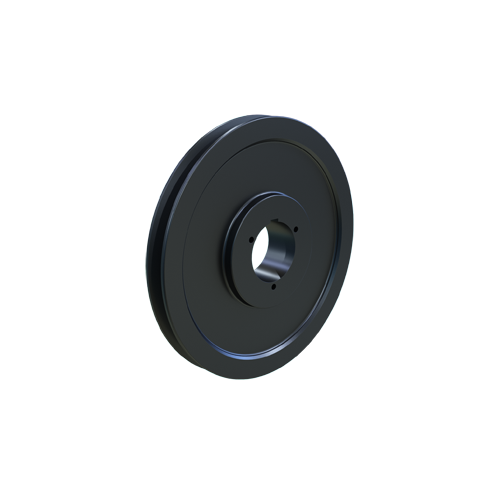

MARTIN SPROCKET 1 C 120 Q Sheave, MST Bushing, 12.4 Inch Outside Dia., 1 Groove, 12 Inch Pitch Dia., Cast Iron
Item: BA6VXV
Model: 1 C 120 Q
In Stock
Get it by Wednesday, Apr 15
12.4"
£621.05/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Belt Cross Section | C |
|---|---|
| Bushing Size | Q1 |
| Bushing Style | Mst |
| Face Width | 1 1/4" |
| Material | Cast Iron |
| Max. Bore Size | 2.688" |
| Min. Bore Size | 3/4" |
|---|---|
| No. Of Grooves | 1 |
| Outside Dia. | 12 2/5" |
| Pitch Dia. | 12" |
| Sheave Construction | Arm, Spoke |
Product Details
Sheave
Shipping Information
| height | 3.18 |
|---|---|
| length | 31.5 |
| width | 31.5 |
| country of origin | US |
|---|---|
| weight | 8.775000 |
Related Products
| Style | Model | Outside Dia. | Material | Pitch Dia. | Face Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|
| A | 1 C 80 Q | 8 2/5" | Cast Iron | 8" | 1 1/4" | 359.41 | |
| B | 1 C 106 Q | 11" | Cast Iron | 10 3/5" | 1 1/4" | 433.15 | |
| C | 1 C 94 Q | 9 4/5" | Cast Iron | 9 2/5" | 1 1/4" | 387.52 | |
| C | 1 C 114 Q | 11 4/5" | Cast Iron | 11 2/5" | 1 1/4" | 495.54 | |
| D | 1 C 130 Q | 13 2/5" | Cast Iron | 13" | 1 1/4" | 665.03 | |
| E | 1 C 60 Q | 6 2/5" | Steel | 6" | 1 1/4" | 315.60 | |
| F | 1 C 240 Q | 24.4" | Cast Iron | 24" | 1 1/4" | 981.27 |
