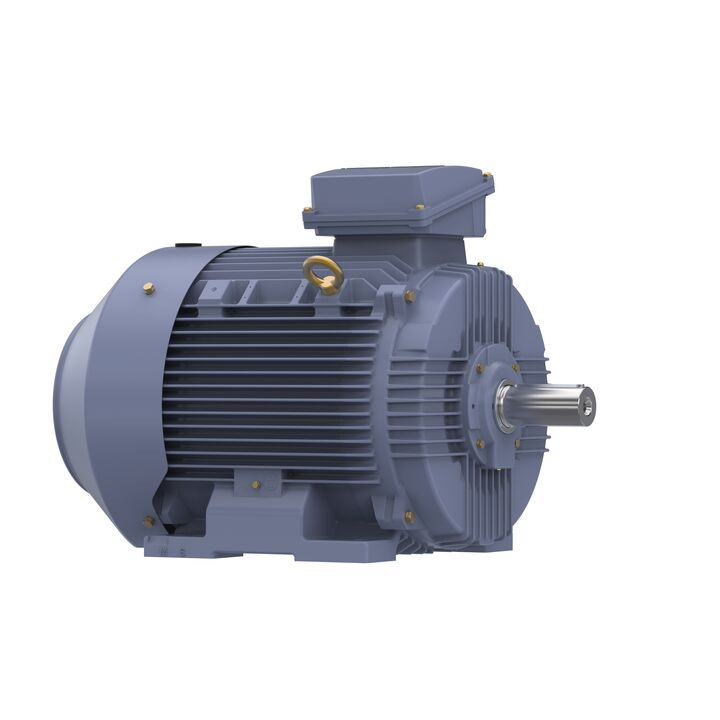

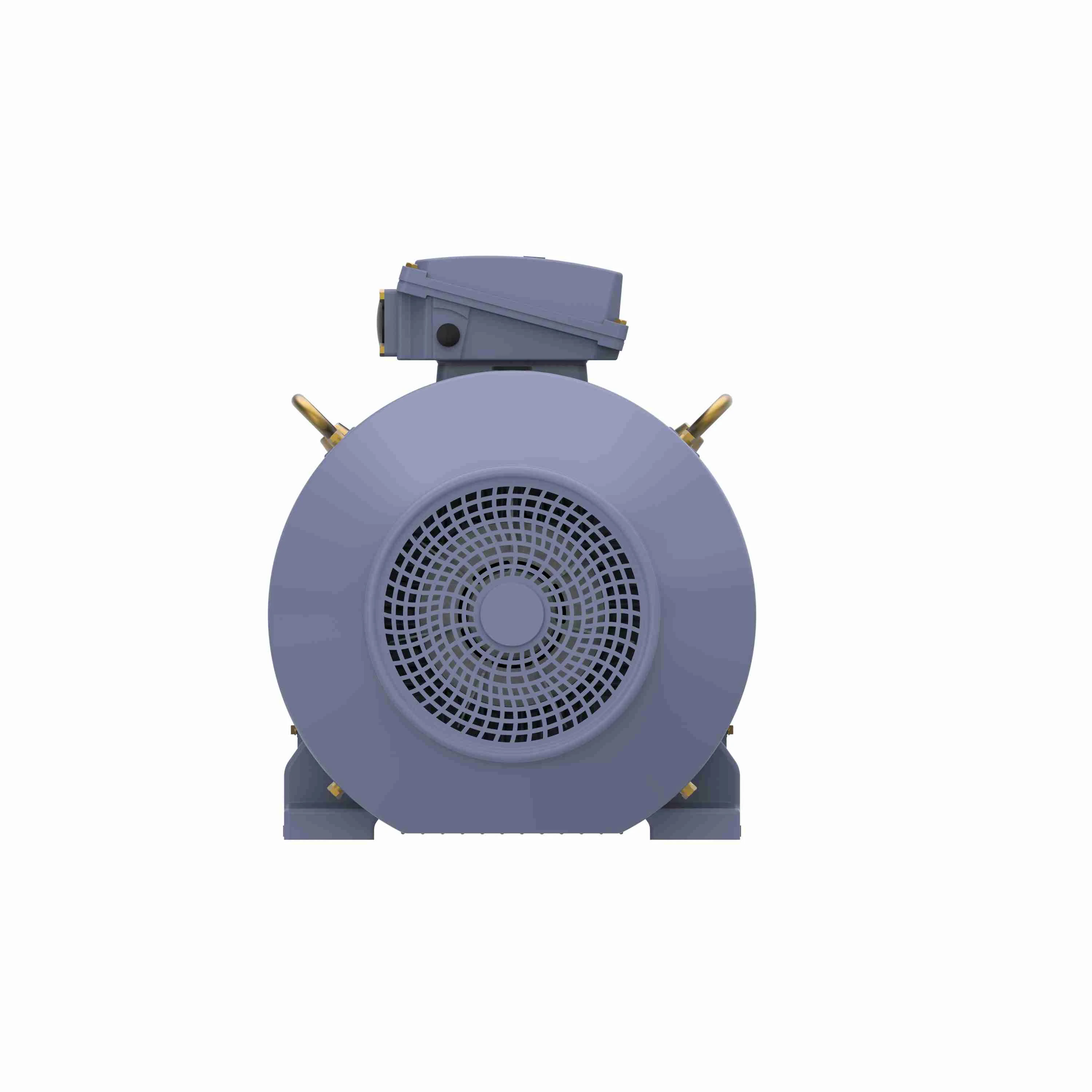

MARATHON MOTORS TCA0552AE211GAA009 R504A Cast Iron Motor, 75/60 HP, 3 Phase, 60/50 Hz, 230/460 and 200/400V, 1800 and 1500 RPM
Item: CH6RTJ
Model: TCA0552AE211GAA009
In Stock
Get it by Wednesday, Apr 15
5.00% off
£11532.89/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Temp. | 40°C |
|---|---|
| Application | General Application |
| Bearing Type | Ball |
| Bearings | Ball |
| Cc Number | CC003A |
| Duty | Continuous |
| Efficiency | 95.4% |
| Frame | 250M |
| Frequency | 50/60 Hz |
| Full Load Amps | 174/87A |
| Full Load Amps @ 50hz | 168/84A |
| Hp | 75 hp |
| Hp @ 50hz | 75 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 801 mm |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1790 RPM |
| Nema Design | N |
| Nominal Efficiency | 95.4% |
| Number Of Speeds | 1 |
| Overall Length | 941 mm |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 65 mm |
| Shaft Length | 140 mm |
| Standard Logo | ce.png,ul.png |
| Standards | Ce, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Motor Thermal Protection | None |
Product Details
General Purpose Motor
Shipping Information
| height | 89.99 |
|---|---|
| length | 111.99 |
| width | 69.01 |
| country of origin | IN |
|---|---|
| weight | 585.328500 |
