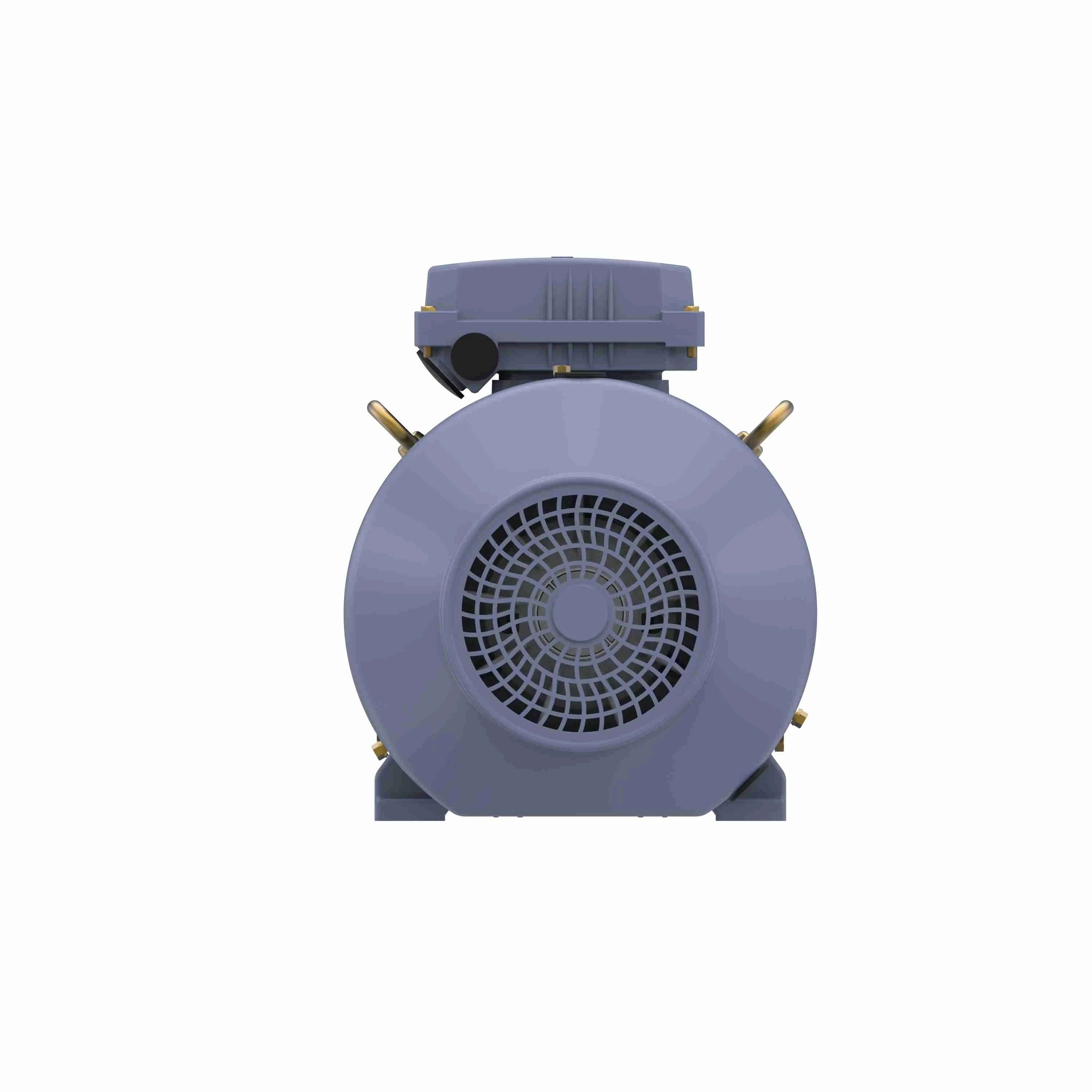

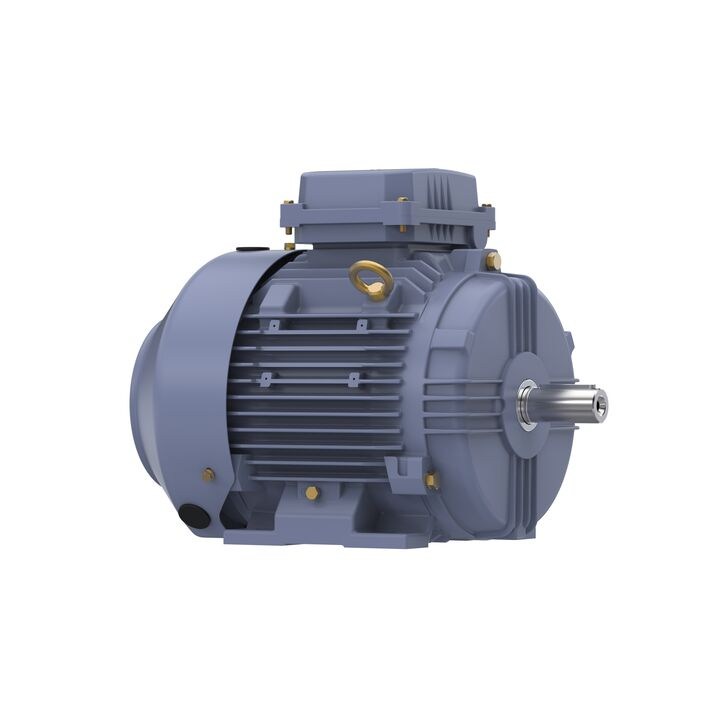

MARATHON MOTORS TCA0042AE211GAA009 R325B Cast Iron Motor, 5.50/4 HP, 3 Phase, 60/50 Hz, 230/460 and 200/400V, 1800 and 1500 RPM
Item: CH6RRH
Model: TCA0042AE211GAA009
In Stock
Get it by Thursday, Apr 16
5.00% off
£1417.88/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Type | Ball |
|---|---|
| Bearings | Ball |
| Cc Number | CC003A |
| Design | N |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 112M |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 13.8/6.9A |
| Hp | 5 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length | 399 mm |
| Length Less Shaft | 339 mm |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1765 RPM |
| Nema Design | N |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Number Of Speeds | 1 |
| Overall Length | 399 mm |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 28 mm |
| Shaft Length | 60 mm |
| Standard Logo | ce.png, ul.png |
| Standards | Ce, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Motor Thermal Protection | None |
Product Details
Shipping Information
| Height | 40.64 |
|---|---|
| Length | 43.18 |
| Width | 27.94 |
| Country Of Origin | IN |
|---|---|
| Weight | 56.547000 |
Related Products
| Style | Model | Voltage | Hp | Frame | Nominal Efficiency | Full Load Amps | Shaft Dia. | Shaft Length | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TCA0031AE211GAA009 | 230/460V AC | 4 hp | 100L | 88.5% | 9.8/4.9A | 28 mm | 60 mm | 398 mm | 987.60 | |
| A | TCA0032AE211GAA009 | 230/460V AC | 4 hp | 100L | 89.5% | 10.4/5.2A | 28 mm | 60 mm | 398 mm | 1,208.35 | |
| B | TCA0033AE211GAA009 | 230/460V AC | 4 hp | 132S | 89.5% | 11.6/5.8A | 38 mm | 80 mm | 465 mm | 1,857.71 | |
| C | TCA0041AP211GAA009 | 575V AC | 5 1/2 hp | 112M | 89.5% | 5A | 28 mm | 60 mm | 399 mm | 1,447.35 | |
| B | TCA0043AE211GAA009 | 230/460V AC | 5 1/2 hp | 132M | 91% | 16.2/8.1A | 38 mm | 80 mm | 503 mm | 2,144.37 | |
| A | TCA1P13AE211GAA009 | - | - | - | 87.5% | 4.4/2.2A | 28 mm | 60 mm | 398 mm | 1,214.03 | |
| B | TCA7P51AE211GAA009 | 230/460V AC | 10 hp | 132S | 90.2% | 23.8/11.9A | 38 mm | 80 mm | 465 mm | 1,769.95 |
