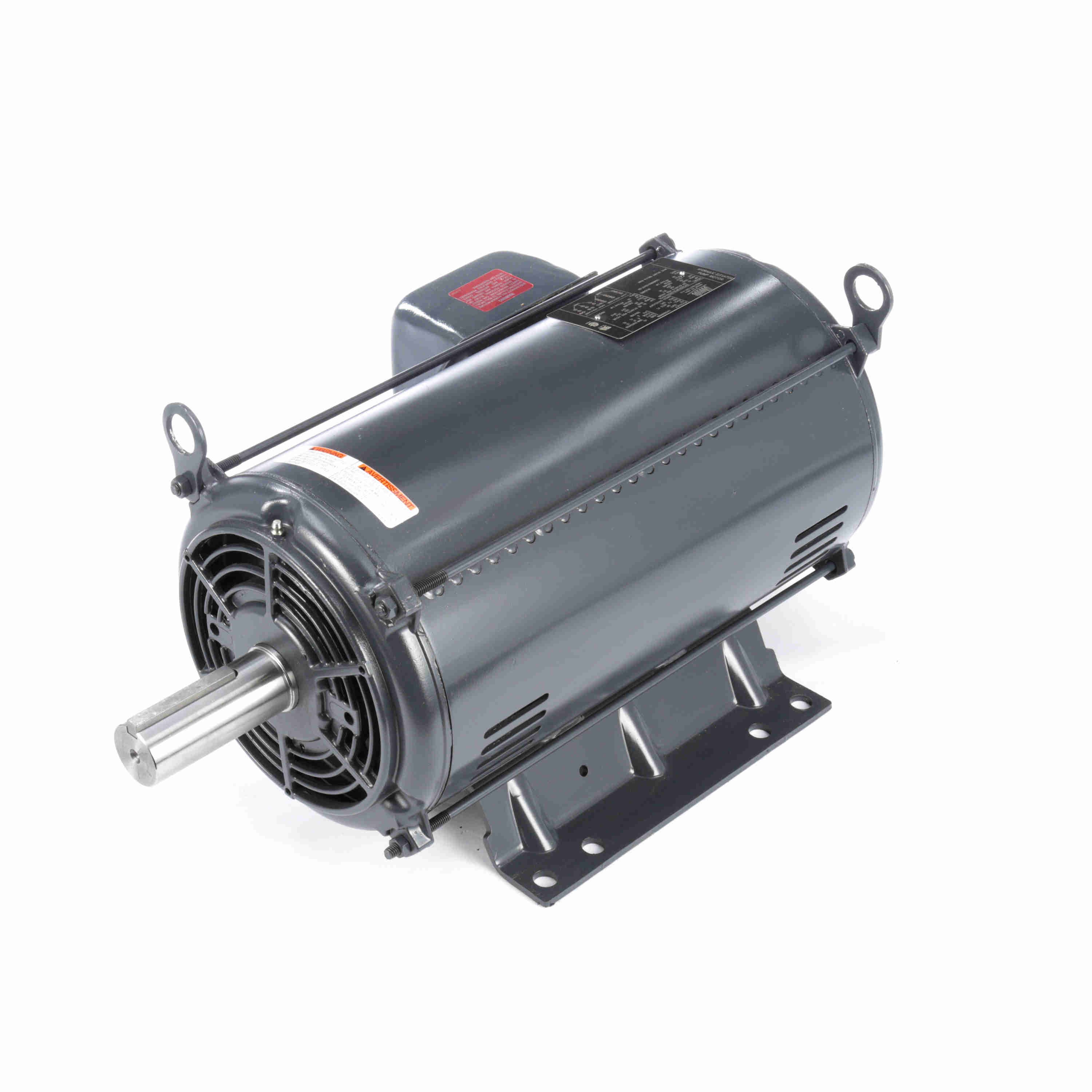

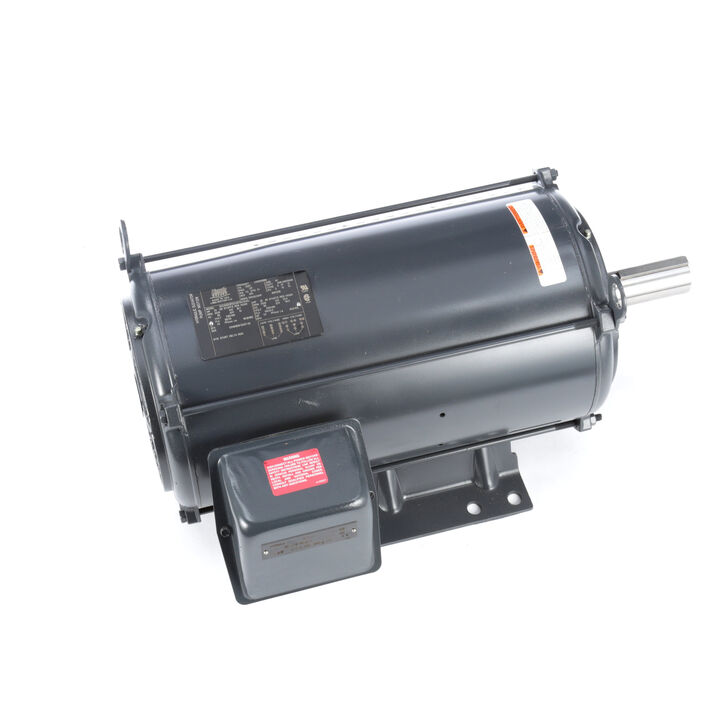

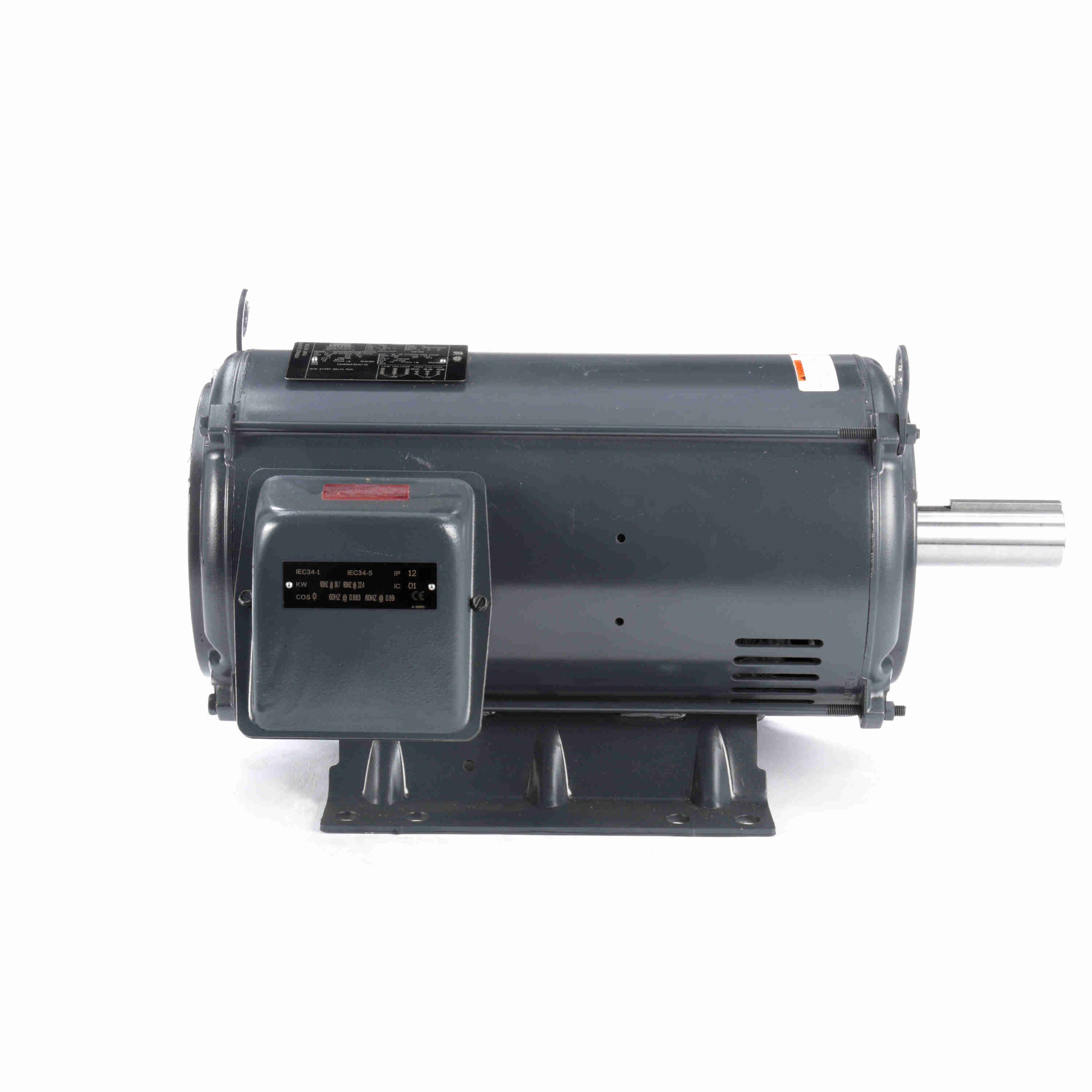

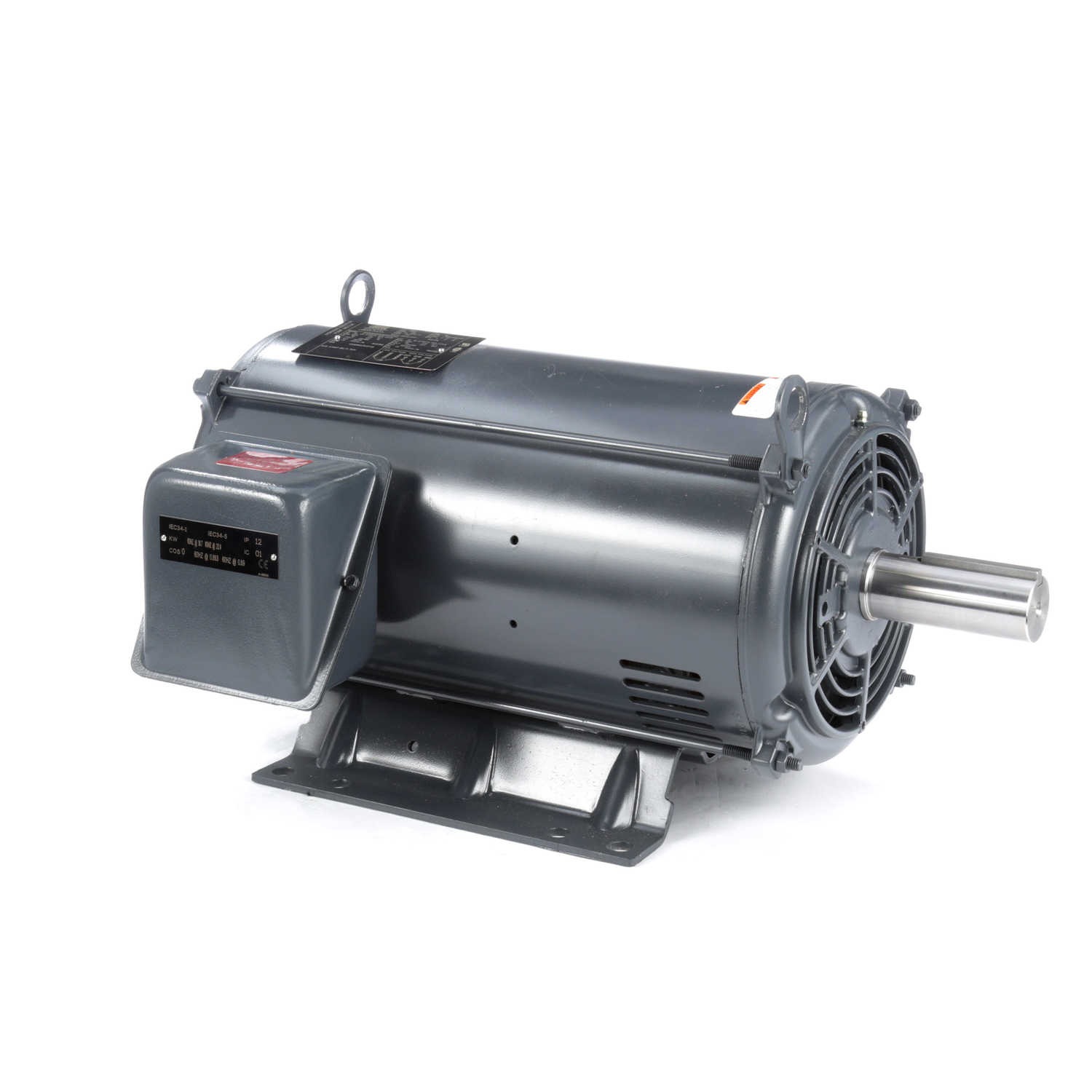

MARATHON MOTORS LM30098 SSD2P25/30T61YEH2 Elevator Duty Motor, 25/30 HP, 3 Ph, 60 Hz, 230/460 and 230/460V, 3600 and 3600 RPM
Item: AJ2WHG
Model: LM30098
In Stock
Get it by Wednesday, Apr 15
£3468.64/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Definite Purpose Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 58/29/69/34.5A |
| Amps Rating | 29/58A |
| Application Type | Elevator Motors, Hydraulic Pump Motors |
| Assembly/box Mounting | F1, F2 Capable |
| Code | E |
| Design Code | Inv |
| Drive End Bearing Size | 309 |
| Drive End Bearing Type | Ball |
| Efficiency | 91% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | ODP |
| Frame | 256T |
| Frame Length | 15.45" |
| Frame Material | Rolled Steel |
| Frame Size | 256T |
| Frequency | 60 Hz |
| Full Load Amps | 58/29A |
| Grease Type | Polyrex EM |
| Height | 12" |
| Hp | 25 hp |
| Insulation Class | Class F |
| Ip Code | IP12 |
| Kva Code | E |
| Kw | 18.7 kW |
| Length | 22 8/25" |
| Lubrication | Polyrex EM |
| Material | Rolled Steel |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
|---|---|
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | E |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 208 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 18.7/22.4 kW |
| Packaging | B |
| Phase | 3 |
| Power | 18.7 kW |
| Power Factor | 88.3 |
| Resistance Main | 0.365 ohms |
| Rotation Type | Reversible |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4" |
| Shaft Type | T |
| Standard Logo | CE.png, CSA.png, UL.png |
| Starting Method | Wye Start Delta Run |
| Thermal Protection | No Protection |
| Torque Rating | 37.5 lbs.-ft. |
| Type | TDR |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V AC |
| Voltage Rating | 230/460V AC |
| Width | 13.77" |
Product Details
- Eff 75%: 92.4
- Bearing OPE: 208
- CC Number: EXEMPT
- Bearing PE: 309
- Nameplate: 92117-R-X-BC-B-A-X
- Winding: K2152192
- GROUP: 6
- Paint: GRAY - LINCOLN
- Eff 100%: 91 / 90.2
Shipping Information
| height | 36.53 |
|---|---|
| length | 67.31 |
| width | 45.72 |
| country of origin | US |
|---|---|
| weight | 105.750000 |
