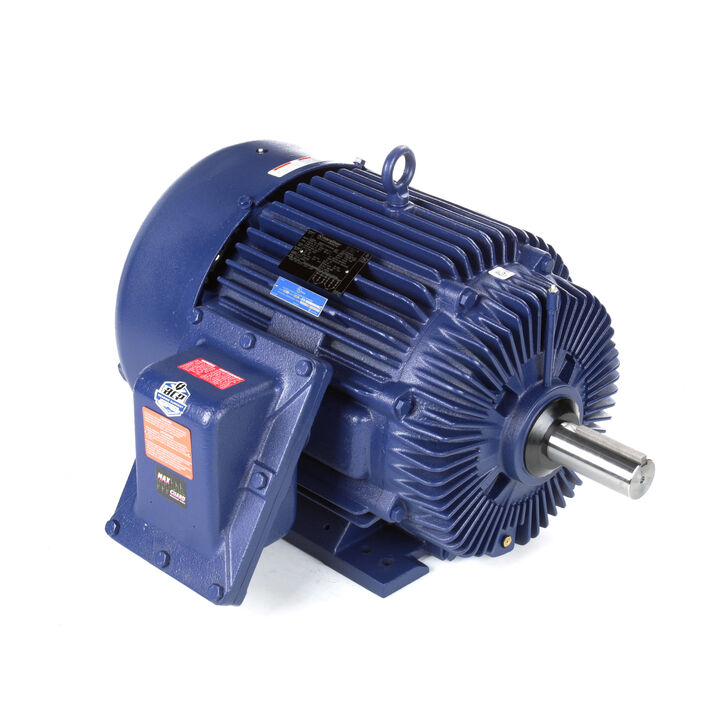

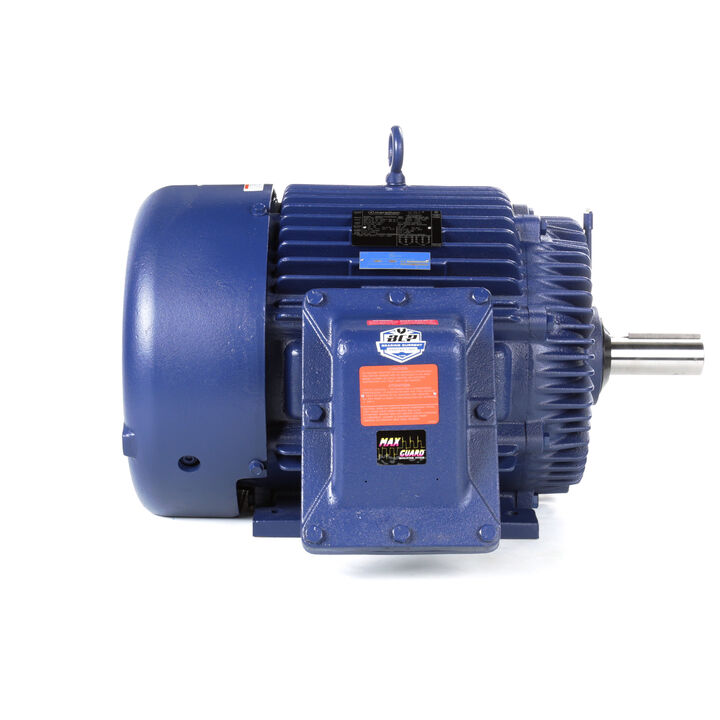

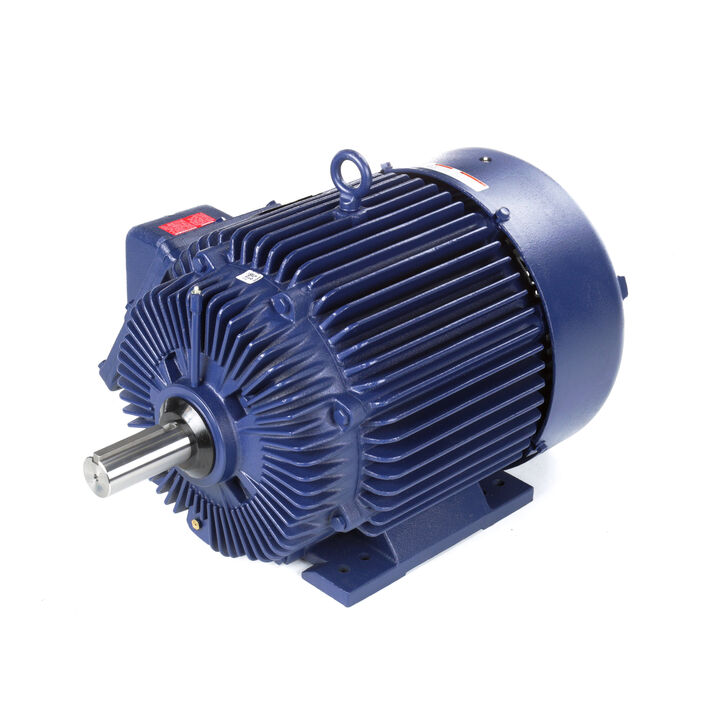

MARATHON MOTORS 326TTGS16546 E570-P / 326TTGS16546AN Explosion Proof Motor, 50/40 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380 V, 1800 RPM
Item: AJ2NUU
Model: 326TTGS16546
In Stock
Get it by Thursday, Apr 16
£12372/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Class I-Group C & D, Class II-Group F & G |
|---|---|
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Hazardous Location Class | 1C, D/2F, G |
| Hazardous Location Division | Division 1 |
| Hp | 50 hp |
| Motor Type | Squirrel Cage Induction Run |
|---|---|
| Nameplate Rpm | 1800 RPM |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 2 1/8" |
| Standard Logo | ul.png |
| Temp. Code | T3C |
Product Details
Shipping Information
| Height | 62.97 |
|---|---|
| Length | 96.22 |
| Width | 80.98 |
| HS Code | 8501528040 |
|---|---|
| Country Of Origin | US |
| Weight | 364.500000 |
Related Products
| Style | Model | Hp | Nameplate Rpm | Hazardous Location Class | Frame | Motor Thermal Protection | Temp. Code | Shaft Dia. | Enclosure Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 364TTGS16536 | 60 hp | 1780 RPM | 1 C, D / 2 F, G | 364T | T Stat | T3B | 2 3/8" | Totally Enclosed Fan Cooled | 12,889.35 | |
| B | 365TTGS16540 | 75 hp | 1782 RPM | 1 C, D / 2 F, G | 365T | T Stat | T3B | 2 3/8" | Totally Enclosed Fan Cooled | 15,806.10 | |
| C | 286TTGN16577 | 20 hp | 1175 RPM | 1 C, D / 2 F, G | 286T | T Stat | T3B | 1 7/8" | Totally Enclosed Fan Cooled | 6,587.55 | |
| D | 326TTGS6532 | 50 hp | 1777 RPM | 1 C, D / 2 F, G | 326T | T Stat | T3B | 2 1/8" | Totally Enclosed Fan Cooled | 9,821.13 | |
| E | 364TTGS16577 | 40 hp | 1185 RPM | 1 C, D / 2 F, G | 364T | T Stat | T3B | 2 3/8" | Totally Enclosed Fan Cooled | 13,987.65 | |
| F | 324TSTGS6501 | 40 hp | 3545 RPM | 1 C, D / 2 F, G | 324TS | T Stat | T3B | 1 7/8" | Totally Enclosed Fan Cooled | 10,375.19 | |
| G | 324TTGS6529 | 40 hp | 1780 RPM | 1 C, D / 2 F, G | 324T | T Stat | T3B | 2 1/8" | Totally Enclosed Fan Cooled | 9,264.86 |
