MARATHON MOTORS

See our 858 reviews on trustpilot

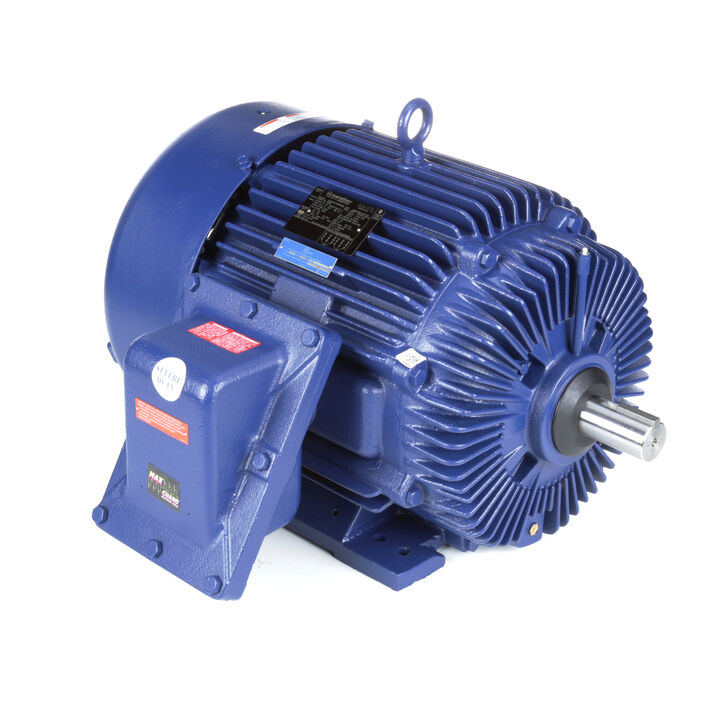

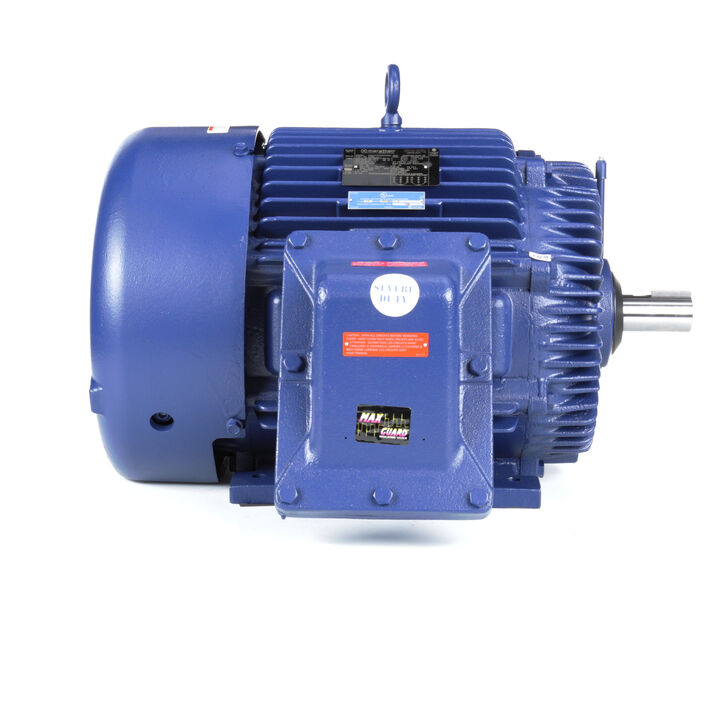

MARATHON MOTORS 324TSTGS6501 E566 / 324TSTGS6501BS Explosion Proof Motor, 40/30 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380 V, 3600 RPM

Item: AE9MQP
Model: 324TSTGS6501
In Stock

Get it by Thursday, Apr 16

£12450.23/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Temp. 40°C
Bearings Ball
Cc Number CC003A
Duty Continuous
Duty Cycle Continuous
Efficiency Group Premium
Enclosure Type Totally Enclosed Fan Cooled
Frame 324TS
Frame Material Cast Iron
Frequency 60 Hz
Full Load Amps 94/47A
Hazardous Location Class 1 C, D / 2 F, G
Hazardous Location Division Division 1
Hp 40 hp
Includes (11) Leads In Conduit Box
Insulation Class Class F
Lead Length 8"
Length Less Shaft 24 7/8"
Manufacturers Warranty Length 3 yrs.
Max. Ambient Temp. 104°F
Motor Application Hazardous Location
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Motor Thermal Protection T Stat
Motor Type Three Phase
Nameplate Rpm 3545 RPM
Nema Design B
No. Of Speeds 1
Number Of Speeds 1
Overall Length 28 7/8"
Phase 3
Service Factor 1.15
Shaft Dia. 1 7/8"
Shaft Length 4"
Standard Logo ul.png, csa.png
Temp. Code T3B
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC
Warranty 3 yrs.

Product Details

Shipping Information

Height 62.97
Length 96.22
Width 80.98
HS Code 8501528040
Country Of Origin US
Weight 330.300000
