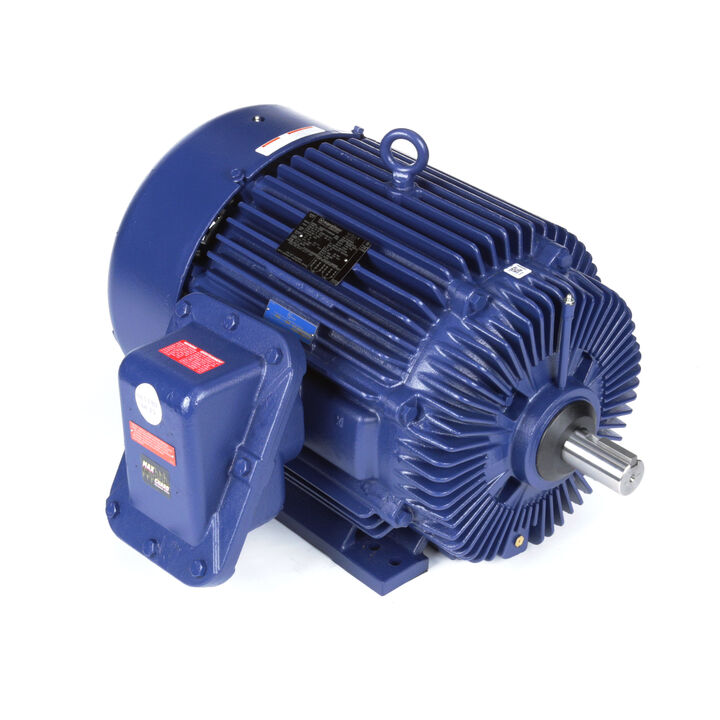

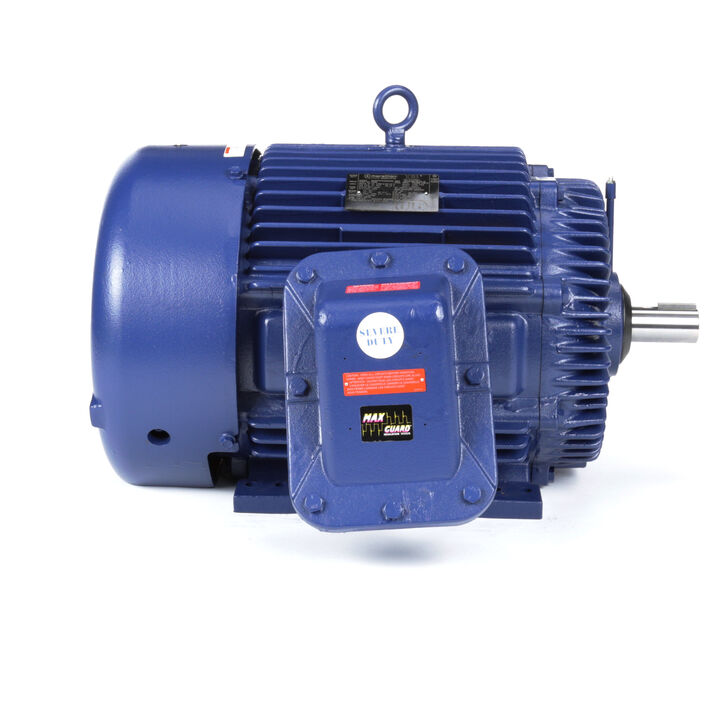

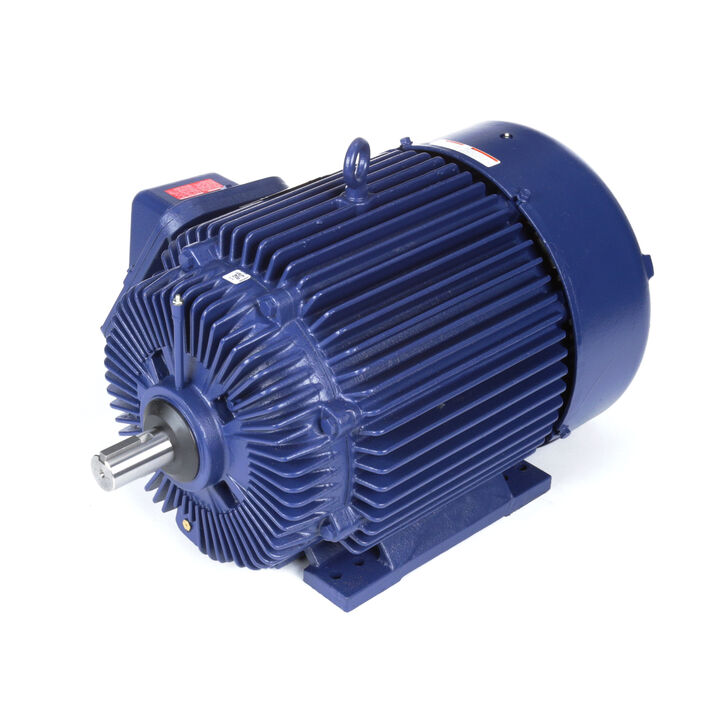

MARATHON MOTORS 326TSTGS6501 E569 / 326TSTGS6501AR Explosion Proof Motor, 50/40 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380 V, 3600 RPM

Item: CT2FVV
Model: 326TSTGS6501
In Stock

Get it by Friday, Apr 17

£12502.56
5.00% off
£11877.43/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Temp. 104°F
Bearing Type Ball
Bearings Ball
Cc Number CC003A
Conduit Box Location Exterior
Cord Length 6"
Duty Continuous
Duty Cycle Continuous
Efficiency 94.5%
Frame 326TS
Frame Material Cast Iron
Full Load Amps 118/59A
Green Environmental Attribute Product Contributes To Reducing Energy Consumption
Hazardous Location Class 1 C, D / 2 F, G
Hazardous Location Division Division 1
Hp 50 hp
Hz 60 Hz
Includes (11) Leads In Conduit Box
Insulation Class Class F
Lead Length 6"
Length Less Shaft 26 3/8"
Manufacturers Warranty Length 3 yrs.
Max. Ambient Temp. 104°F
Motor Application Hazardous Location
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Thermal Protection T Stat
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 3555 RPM
Nema Design B
No. Of Speeds 1
Nominal Efficiency 94.5%
Number Of Speeds 1
Overall Length 30 3/8"
Phase 3
Service Factor 1.15
Shaft Dia. 1 7/8"
Shaft Length 4"
Standard Logo csa, ul.png
Temp. Code T3B
Thermal Protection Thermostat
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC

Product Details

Shipping Information

Height 62.97
Length 96.22
Width 80.98
HS Code 8501528040
Country Of Origin US
Weight 373.950000
