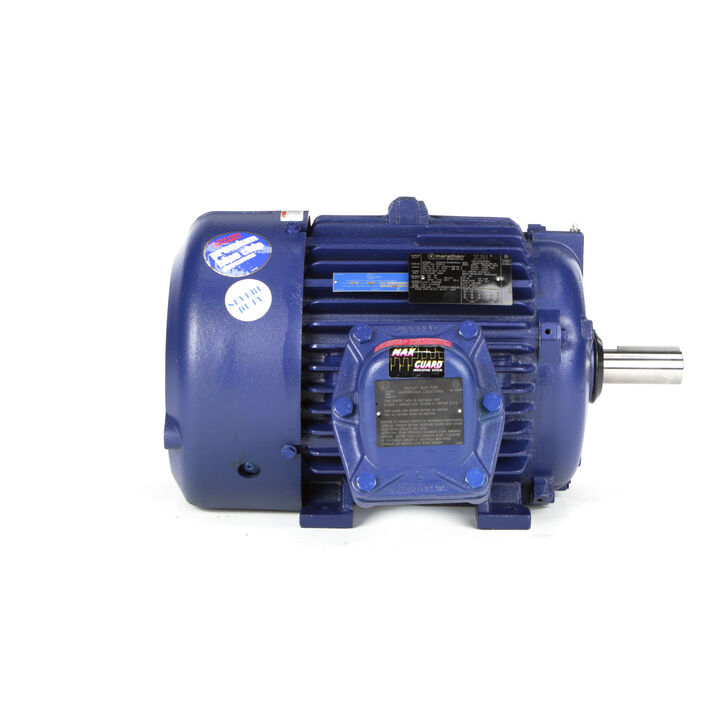

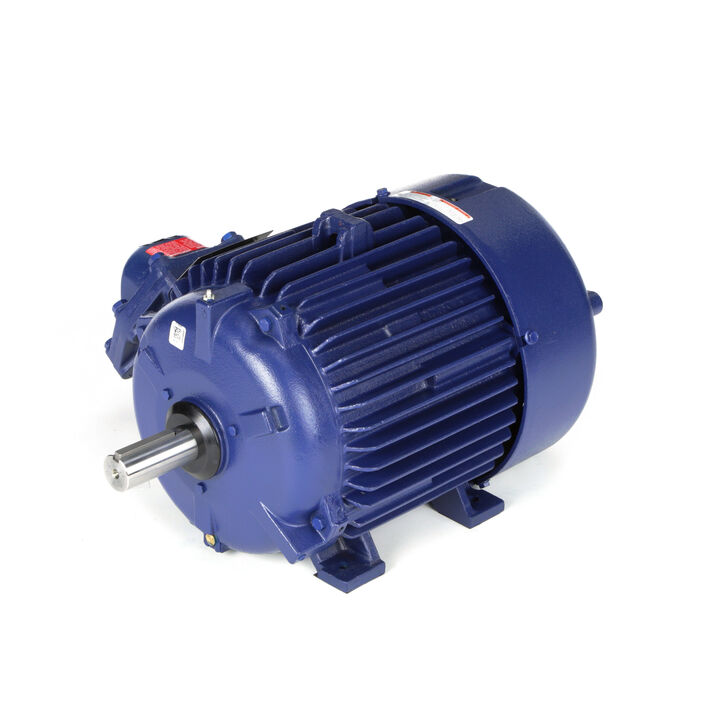

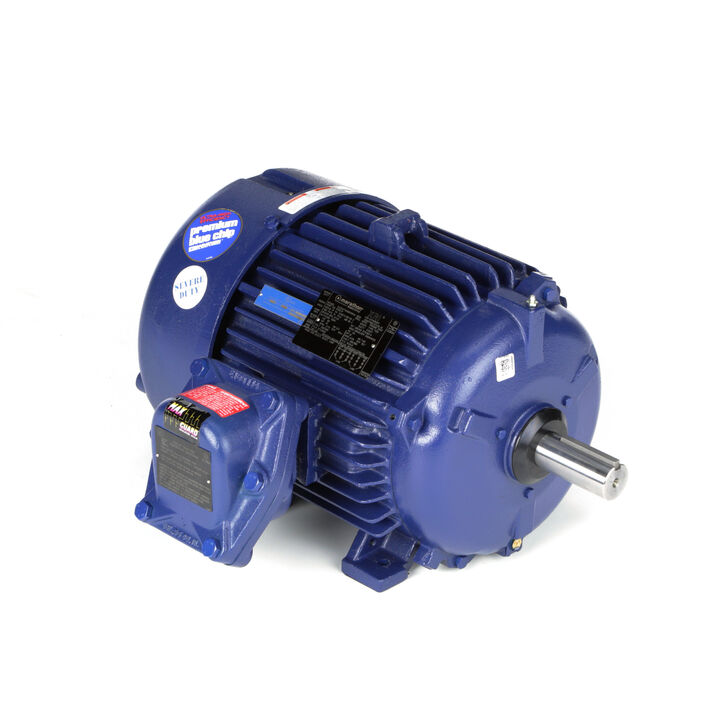

MARATHON MOTORS 254TTGN16549 E503-P / 254TTGN16549AA Explosion Proof Motor, 15/10 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380 V, 1800 RPM
Item: AJ2NUW
Model: 254TTGN16549
In Stock
Get it by Wednesday, Apr 15
£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Class I-Group C & D, Class II-Group F & G |
|---|---|
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Hazardous Location Class | 1C, D/2F, G |
| Hazardous Location Division | Division 1 |
| Hp | 15 hp |
| Motor Type | Squirrel Cage Inverter Rated |
|---|---|
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Temp. Code | T3C |
Product Details
Hazardous Location Motor
Shipping Information
| height | 49.38 |
|---|---|
| length | 99.06 |
| width | 81.92 |
| hs code | 8501524000 |
|---|---|
| country of origin | US |
| weight | 167.400000 |
