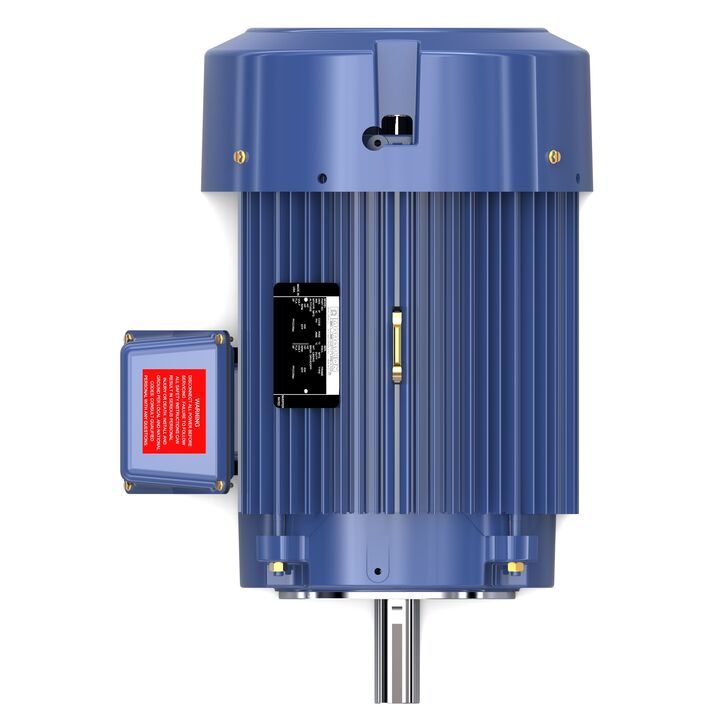

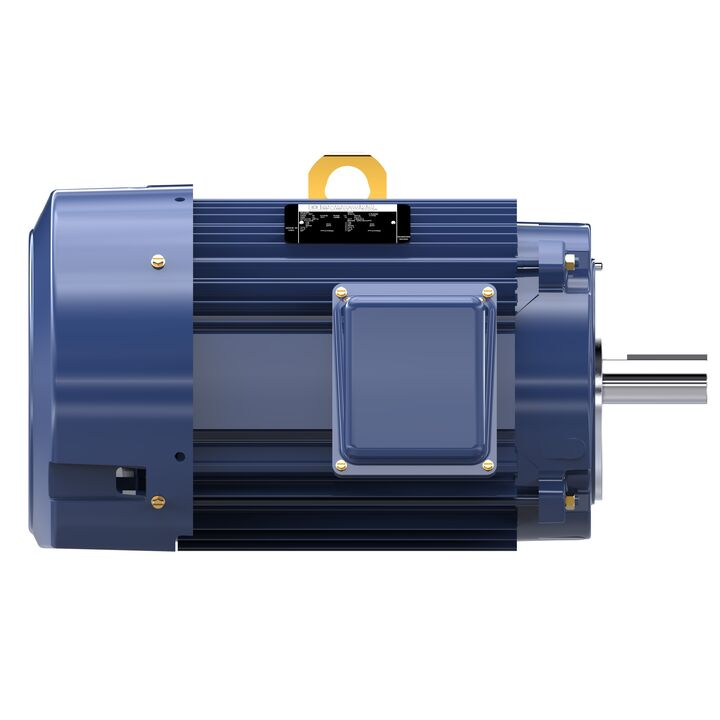

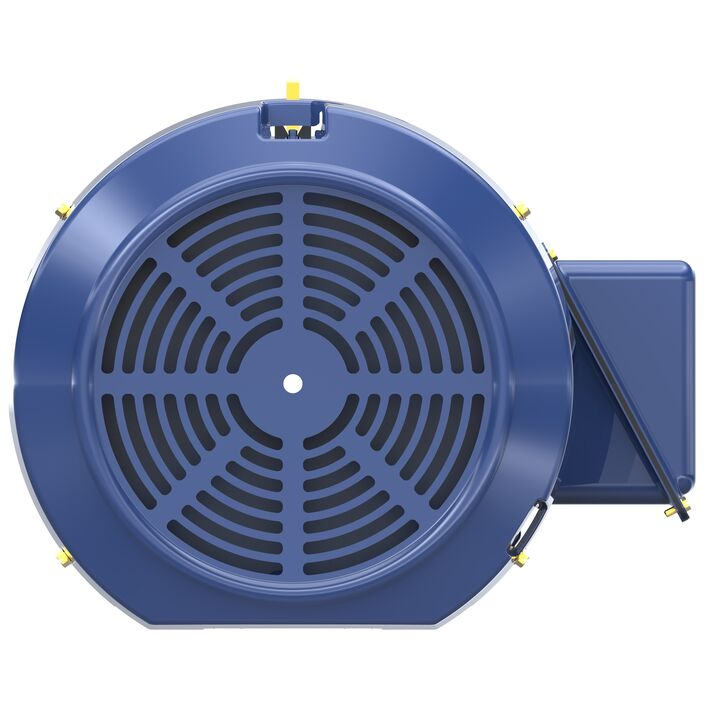

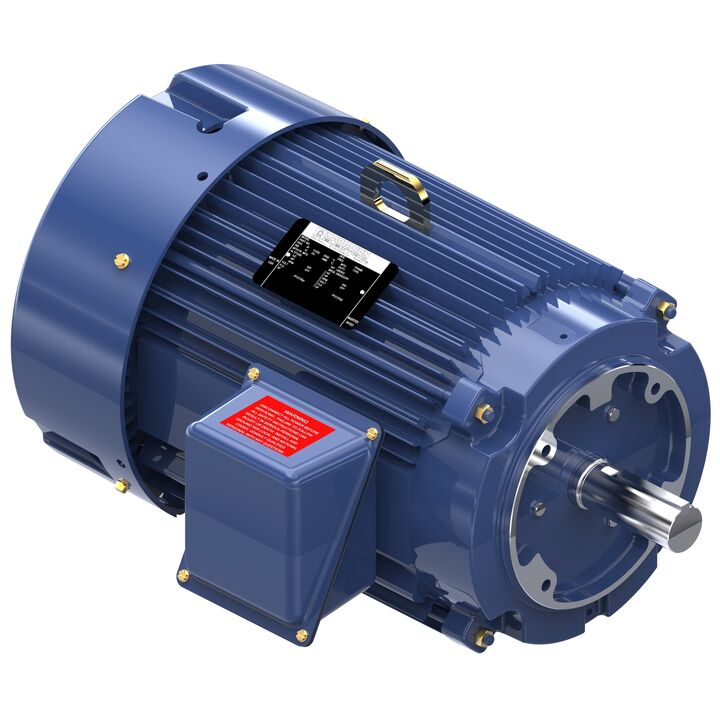

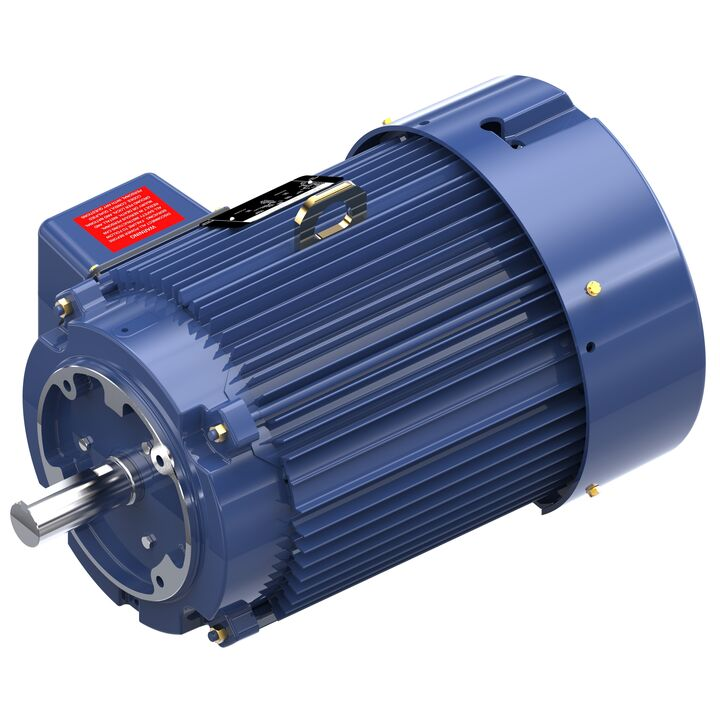

MARATHON MOTORS 254TTFL16039 C227B / 254TTFL16039AN General Purpose Motor, 15/10 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Item: CD2LLQ
Model: 254TTFL16039
In Stock
Get it by Thursday, Apr 16
5.00% off
£3989.24/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Temp. | 104°F |
|---|---|
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 88.5% |
| Efficiency Group | Premium |
| Frame | 254TC |
| Frame Material | Aluminum |
| Frequency | 50/60 Hz |
| Full Load Amps | 37.5/18.8A |
| Full Load Amps @ 50hz | 37.5/18.8A |
| Hp | 15 hp |
| Hp @ 50hz | 15 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 20 1/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Aluminum |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1775 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 88.5% |
| Overall Length | 24" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 3 3/4" |
| Standard Logo | ce.png,csa.png,ul.png |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Motor Thermal Protection | None |
Product Details
General Purpose Motor
Shipping Information
| height | 49.81 |
|---|---|
| length | 99.06 |
| width | 81.92 |
| hs code | 8501524000 |
|---|---|
| country of origin | US |
| weight | 117.450000 |
