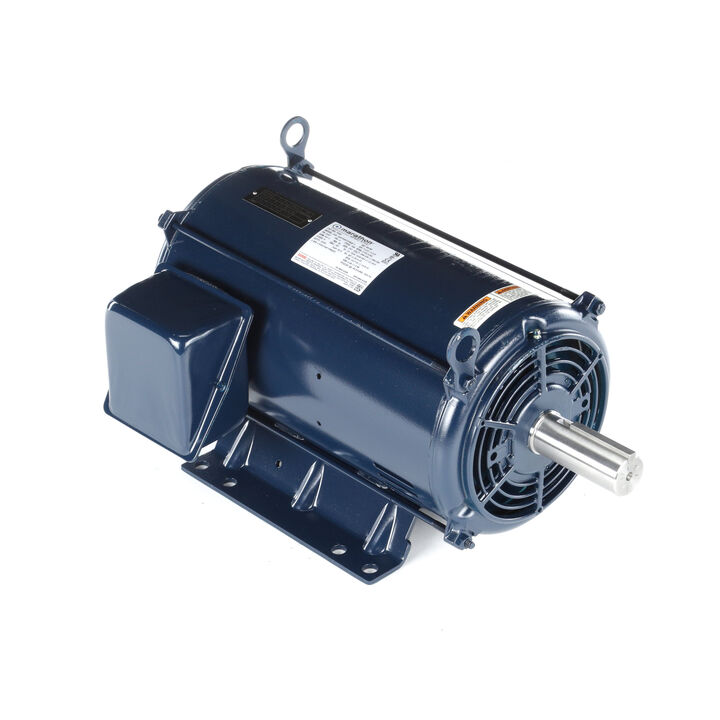

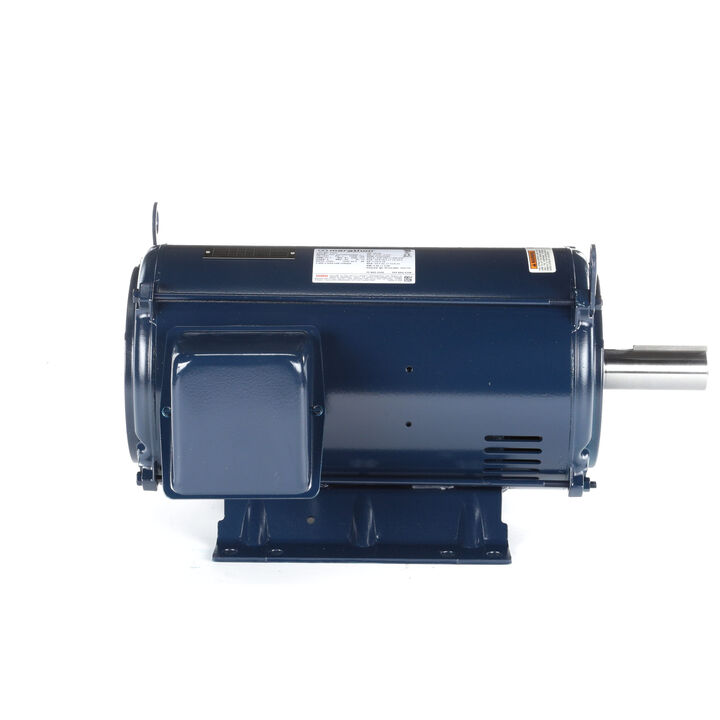

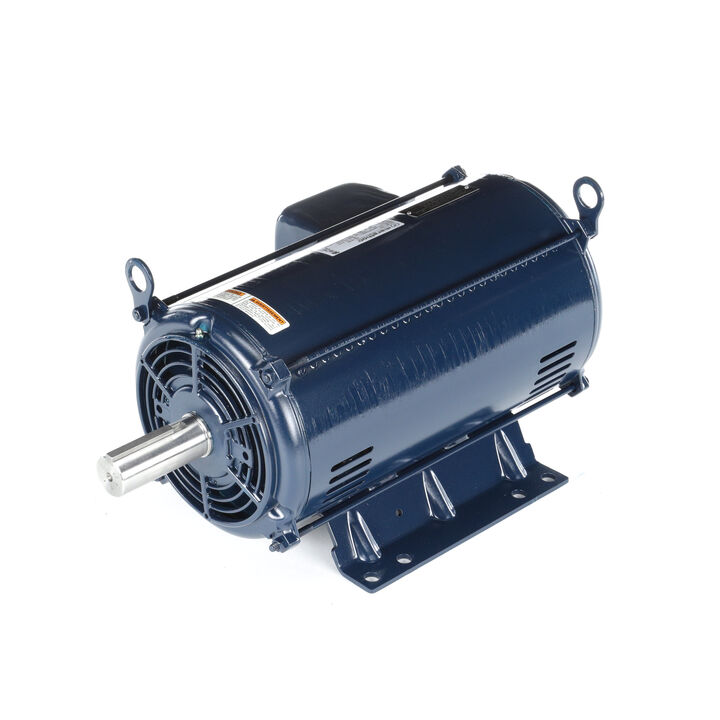

MARATHON MOTORS 254TTDX7278 Y456 / 254TTDX7278AB Kiln Duty Motor, 7.50/3.33 HP, 3 Phase, 60/60 Hz, 200-230 and 200-230V, 1800 and 1800 RPM
Item: AF6JVH
Model: 254TTDX7278
In Stock
Get it by Thursday, Apr 16
£3767.87/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Type | Ball |
|---|---|
| Duty | Continuous |
| Duty Cycle | Continuous |
| Finish | Blue Epoxy |
| Frame | 254T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 20.8/11A |
| Hp | 7 1/2 hp, 3 1/3 hp |
| Insulation Class | Class B |
| Length Less Shaft | 18 1/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Belt Drive Fan/Blower |
|---|---|
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1770/1180 RPM |
| No. Of Speeds | 2 |
| Nominal Efficiency | 87.5% |
| Number Of Speeds | 2 |
| Overall Length | 22 5/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4 3/16" |
| Shaft Type | Keyed |
| Standard Logo | ul.png, csa.png |
| Thermal Protection | None |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 200-230V AC |
Product Details
Shipping Information
| Height | 35.56 |
|---|---|
| Length | 77.47 |
| Width | 42.7 |
| HS Code | 8501524000 |
|---|---|
| Country Of Origin | US |
| Weight | 78.750000 |
