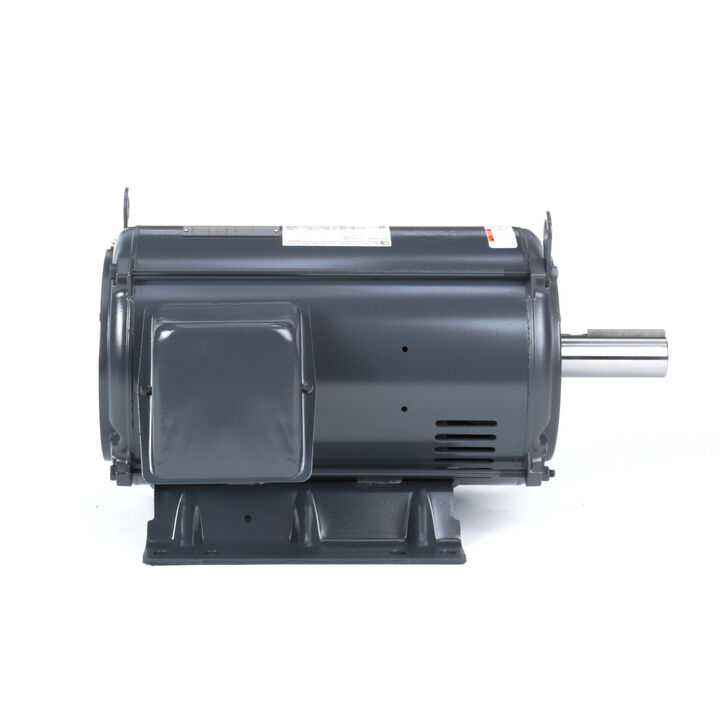

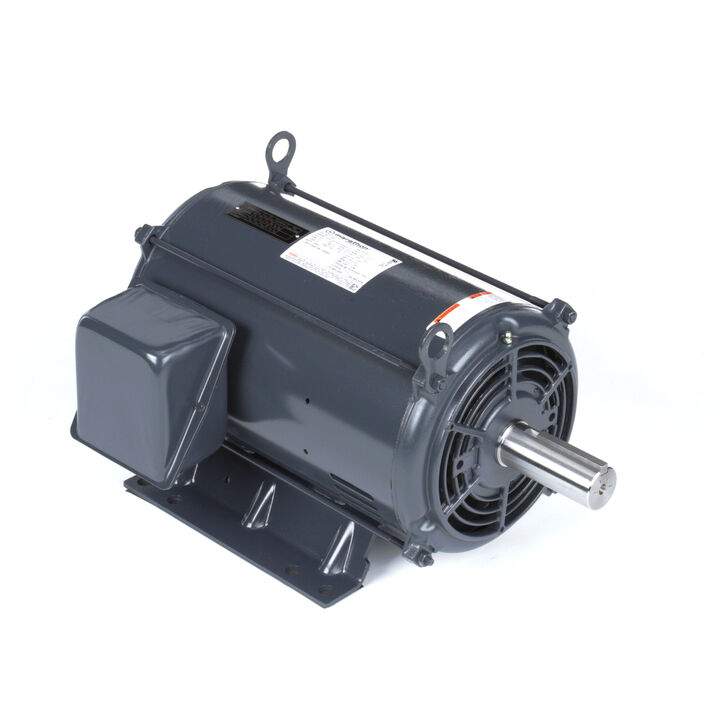

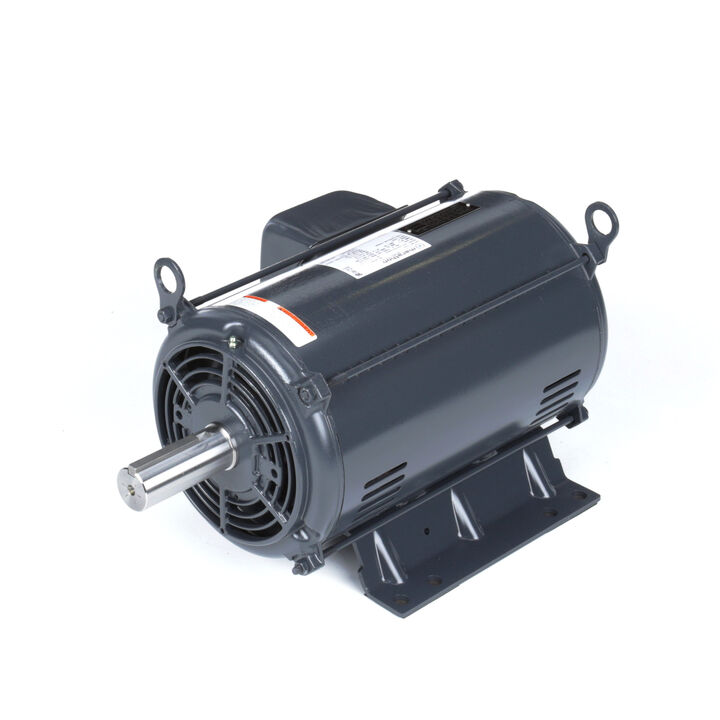

MARATHON MOTORS 254TTDX7208 Y418 / 254TTDX7208AB Multispeed Motor, 7.50 and 3.33 HP, 3 Phase, 60 Hz, 460V, 1800 and 1800 RPM
Item: AF6JVG
Model: 254TTDX7208
In Stock
Get it by Thursday, Apr 16
£3767.87/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Type | Ball |
|---|---|
| Duty | Continuous |
| Duty Cycle | Continuous |
| Finish | Blue Epoxy |
| Frame | 254T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10/5.6A |
| Hp | 3 1/3 hp, 7 1/2 hp |
| Insulation Class | Class B |
| Length Less Shaft | 16 3/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
|---|---|
| Motor Sub Application | Belt Drive Fan/Blower |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1755 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 84% |
| Number Of Speeds | 1 |
| Overall Length | 20 9/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4 3/16" |
| Shaft Type | Keyed |
| Standard Logo | ul.png,csa.png |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Motor Thermal Protection | None |
| standard | CSA (LR2025), UL (E49747) |
Product Details
Belt Drive Motor
Shipping Information
| height | 35.56 |
|---|---|
| length | 57.15 |
| width | 42.7 |
| hs code | 8501524000 |
|---|---|
| country of origin | US |
| weight | 69.300000 |
Related Products
| Style | Model | Hp | Nameplate Rpm | No. Of Speeds | Frame | Shaft Dia. | Voltage | Frame Material | Full Load Amps | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 145TTDR5701 | 1 hp, 1/4 hp | 1725/860 RPM | 2 | 145T | 7/8" | - | Steel | 1.5/0.75A | 1,433.18 | |
| B | 145TTDR5702 | 1 1/2 hp, 3/8 hp | 1740/885 RPM | 2 | 145T | 7/8" | 460V AC | Steel | 2.2/1.1A | 1,432.34 | |
| C | 254TTDX7278 | 7 1/2 hp, 3 1/3 hp | 1770/1180 RPM | 2 | 254T | 1 5/8" | 200-230V AC | Rolled Steel | 20.8/11A | 3,139.89 |
