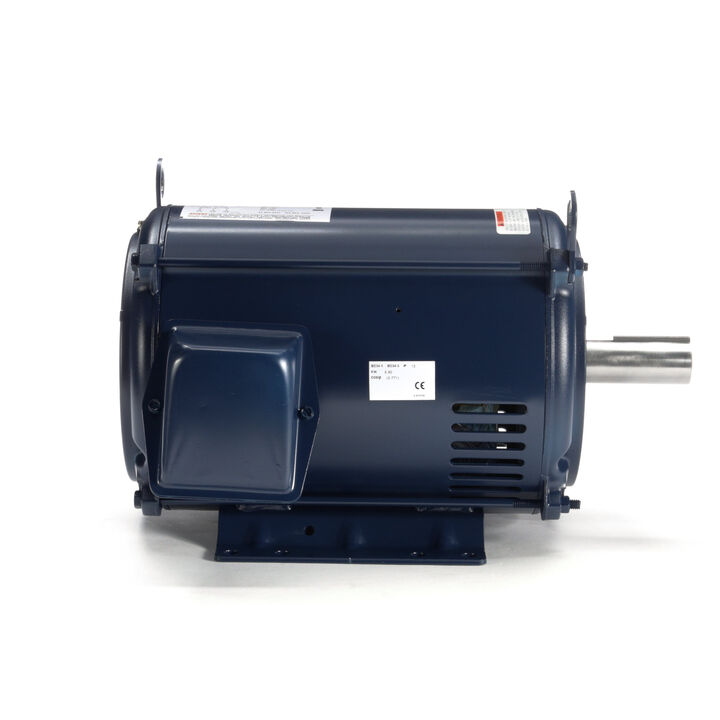

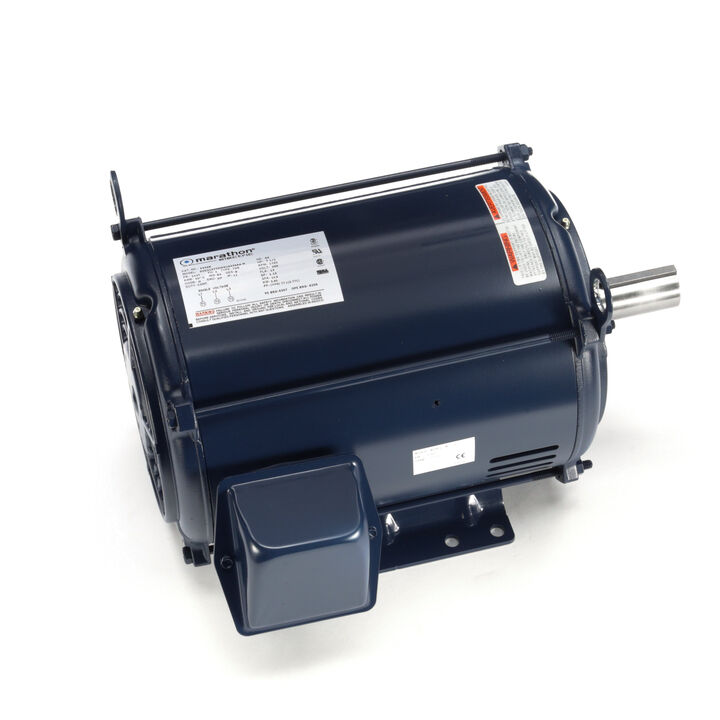

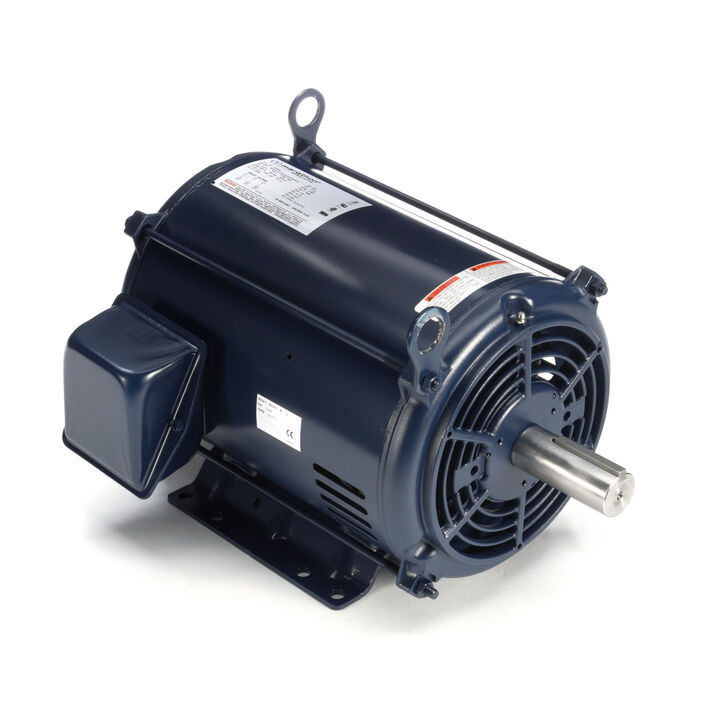

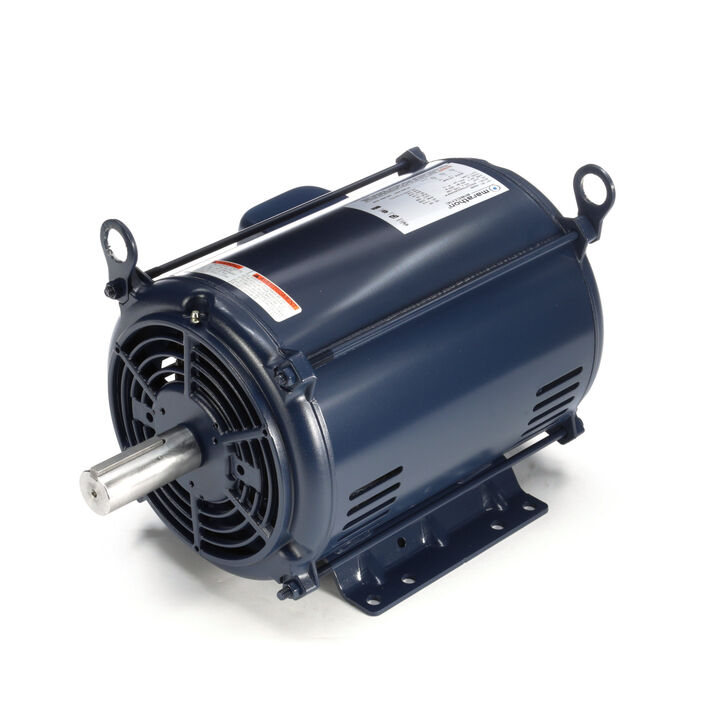

MARATHON MOTORS 213TTDWD16334 E906B / 213TTDWD16334AA General Purpose General Purpose Motor, 7.50 HP, 3 Phase, 60 Hz, 200V, 1800 RPM

Item: CD3RPT

Model: 213TTDWD16334

In Stock

Get it by Friday, Apr 17

~~£1,463.60~~

5.00% off

£1,390.43/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications

Ambient Temp.	104°F
Base Type	Rigid Base
Bearing Type	Ball
Cc Number	CC003A
Duty Cycle	Continuous
Efficiency	81.5%
Efficiency Group	Premium
Frame	213T
Frame Material	Steel
Frequency	60 Hz
Full Load Amps	23A
Hp	7 1/2 hp
Insulation Class	Class F
Inverter Rated	Yes
Length Less Shaft	13 13/16"
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	40°C
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Open Dripproof
Motor Frame Material	Steel
Motor Mounting Position	Horizontal

Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise/Counter Clockwise
Motor Type	Three Phase
Mounting Type	Rigid Base
Nameplate Rpm	1765 RPM
No. Of Speeds	1
Nominal Efficiency	81.5%
Overall Length	17 5/16"
Phase	3
Rpm Range	1701-1800 RPM
Service Factor	1.15
Shaft Dia.	1 3/8"
Shaft Length	3 1/2"
Standard Logo	csa.png, ul.png
Thermal Protection	None
Usable @ 200v	Yes
Usable @ 208v	No
Voltage	200V AC
Motor Thermal Protection	None
standard	CSA (LR2025), UL (E49747)
