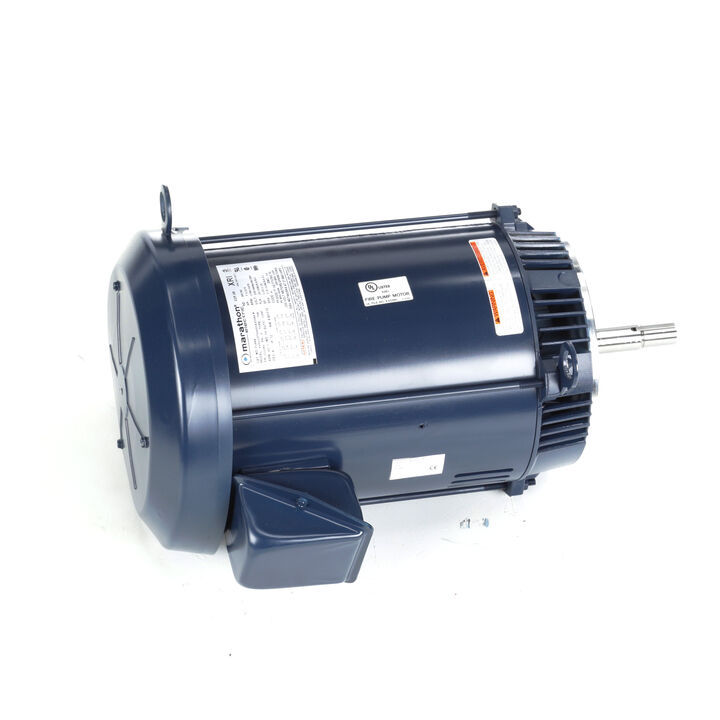

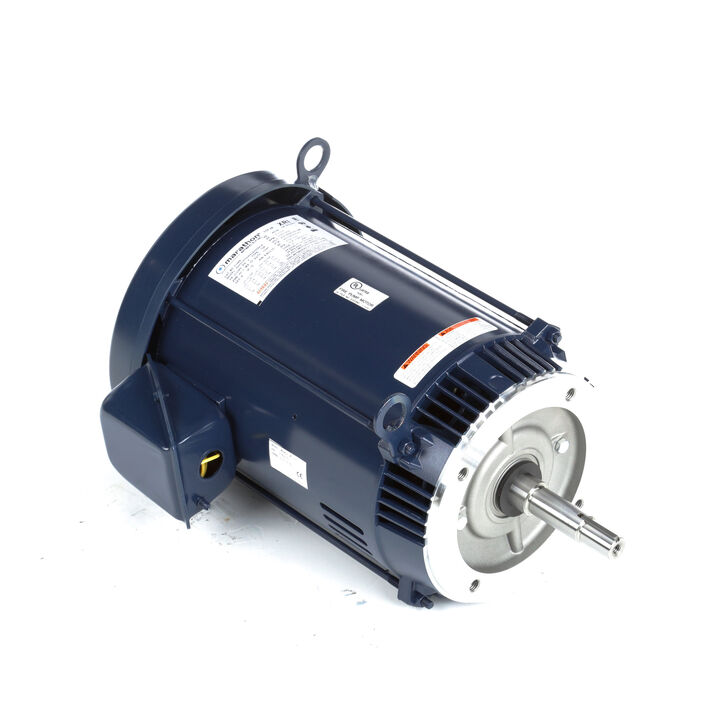

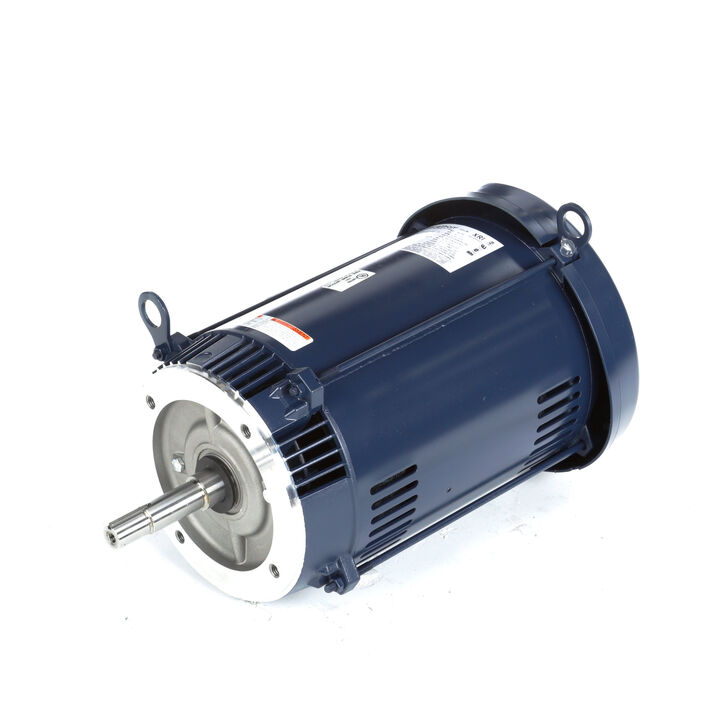

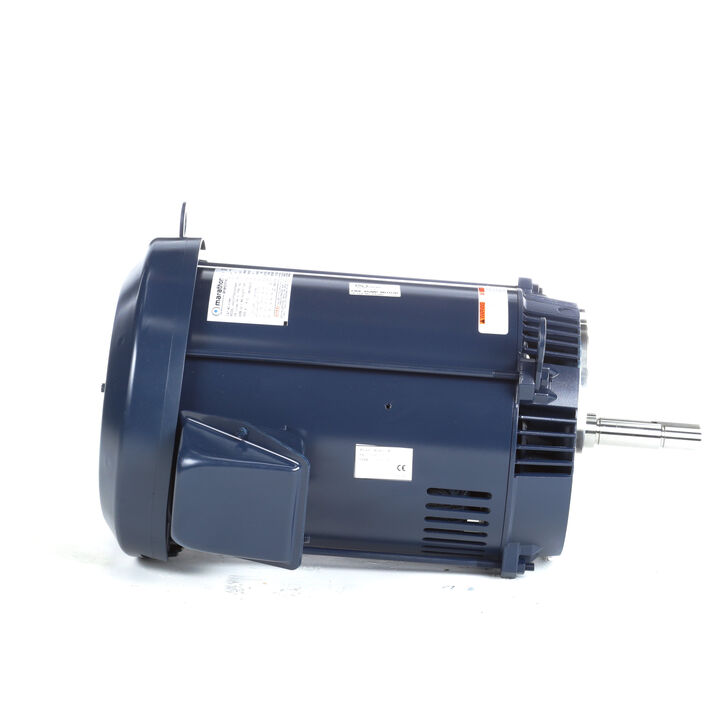

MARATHON MOTORS 213TTDWD16333 E168A / 213TTDWD16333AA Close Coupled Pump Motor, 7.50/5 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Item: CD3KLH
Model: 213TTDWD16333
In Stock
Get it by Friday, Apr 17
5.00% off
£1860.85/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Type | Ball |
|---|---|
| Body Dia. | 9 1/2" |
| Bolt Circle Dia. | 7 1/4" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency | 91.1% |
| Frame Material | Steel |
| Frame Size | 213JMV |
| Frame Type | 213JMV |
| Frequency | 50/60 Hz |
| Full Load Amps | 20/10A |
| Height | 11 7/16" |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 16 3/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
|---|---|
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Close Coupled Pump |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1765 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.1% |
| Overall Height | 11 7/16" |
| Overall Length | 20 7/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4 1/4" |
| Standard Logo | ce.png, csa.png, ul.png |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Motor Thermal Protection | None |
| standard | CE MARK, CSA CERTIFIED, UL RECOGNIZED |
Product Details
Shipping Information
| Height | 37.47 |
|---|---|
| Length | 77.47 |
| Width | 42.7 |
| HS Code | 8501524000 |
|---|---|
| Country Of Origin | MX |
| Weight | 54.900000 |
