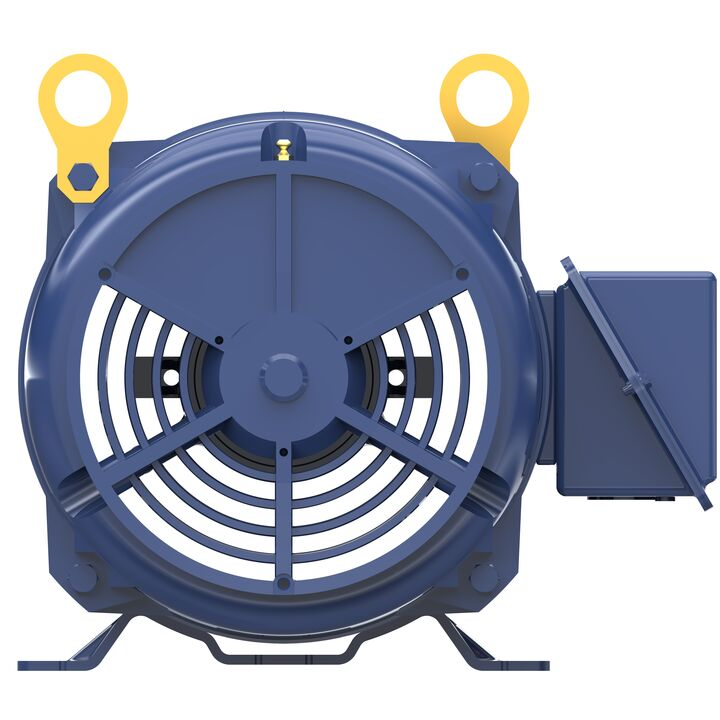

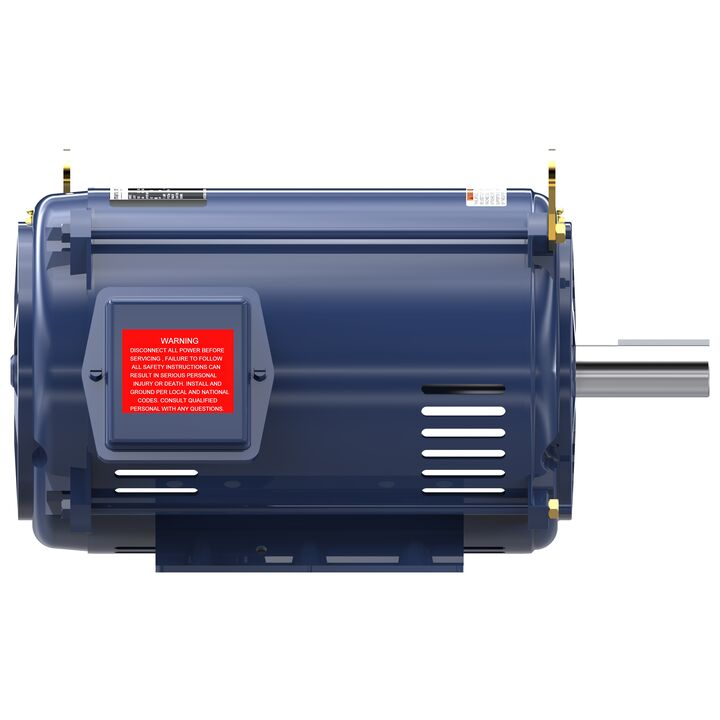

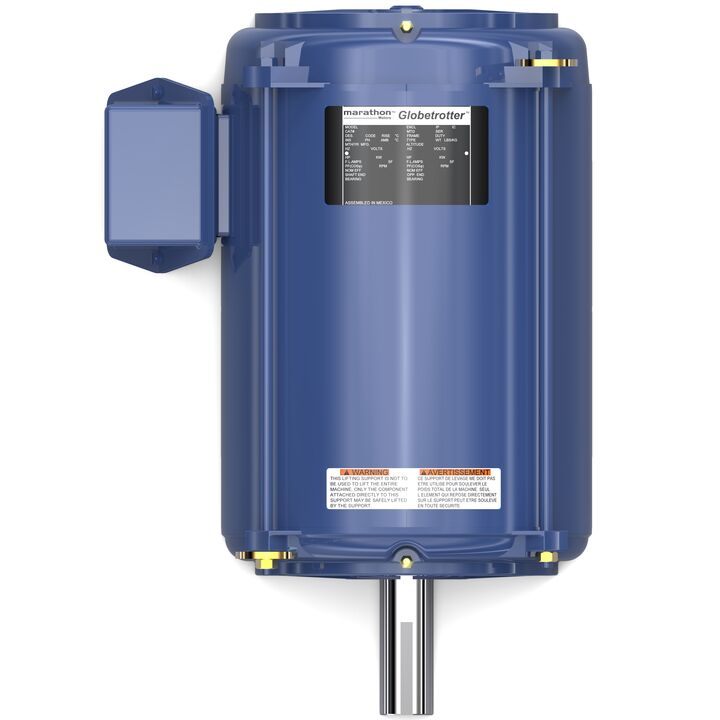

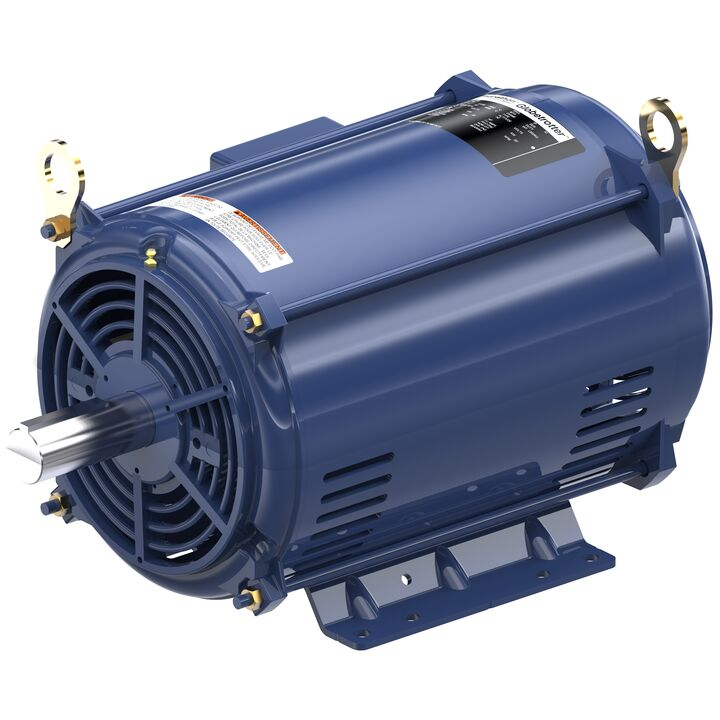

MARATHON MOTORS 213TTDWD16060 U430B / 213TTDWD16060AA General Purpose Motor, 7.50/5 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Item: CJ2HHM
Model: 213TTDWD16060
In Stock
Get it by Friday, Apr 17
5.00% off
£1903.78/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Temp. | 104°F |
|---|---|
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 91% |
| Frame | 213T |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 20/10A |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 14" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Nameplate Rpm | 1765 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91% |
| Overall Length | 17 1/2" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 1/2" |
| Standard Logo | ce.png, csa.png, ul.png |
| Thermal Protection | Automatic |
| Voltage | 230/460V AC |
| standard | CE LISTED, CSA (LR2025), UL (E6312) |
Product Details
Shipping Information
| Height | 35.56 |
|---|---|
| Length | 56.36 |
| Width | 41.91 |
| Country Of Origin | MX |
|---|---|
| Weight | 60.750000 |
