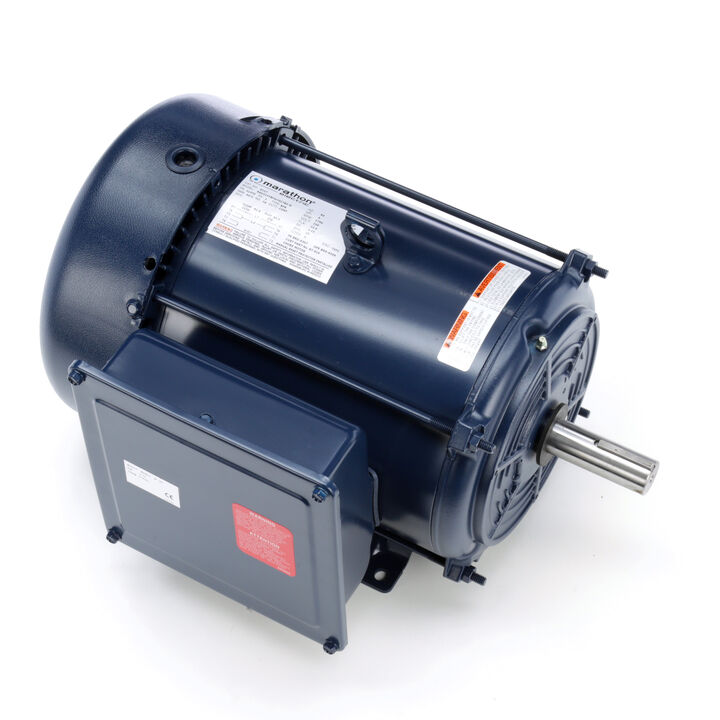

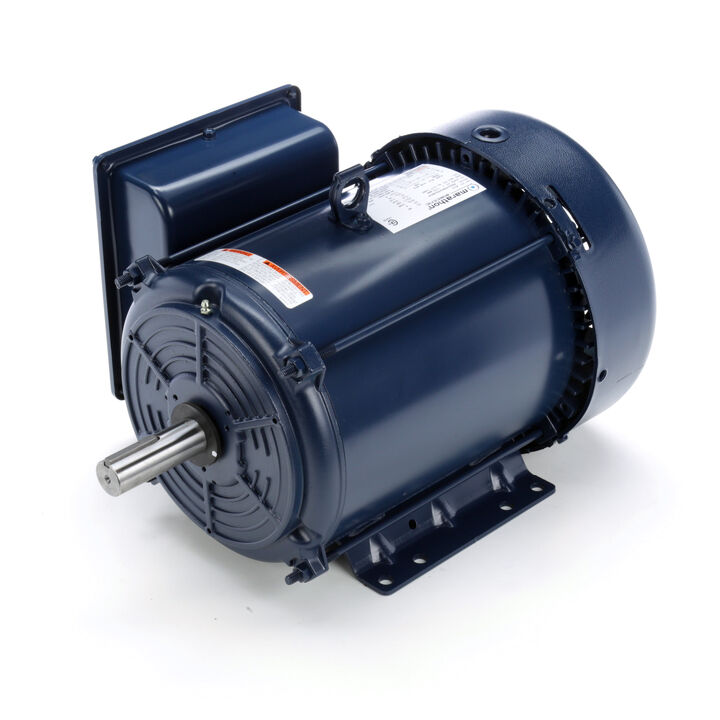

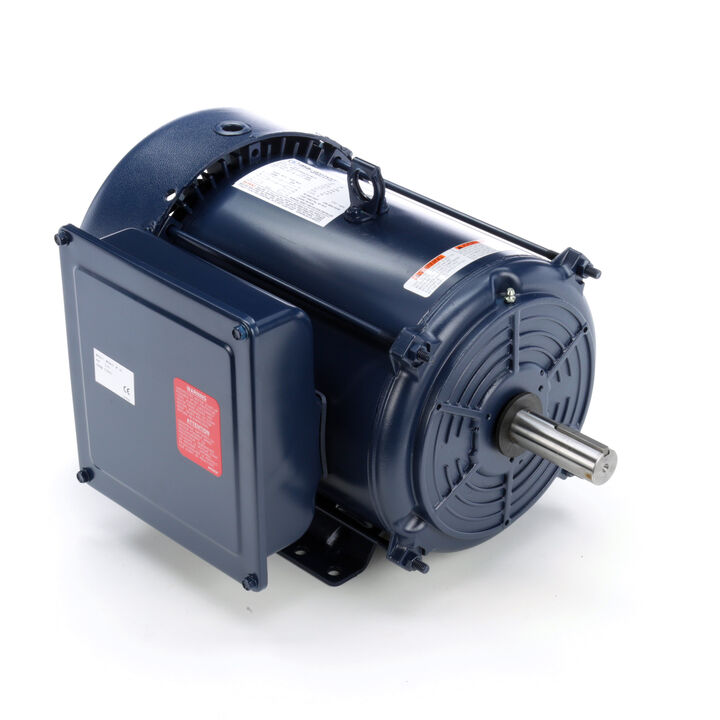

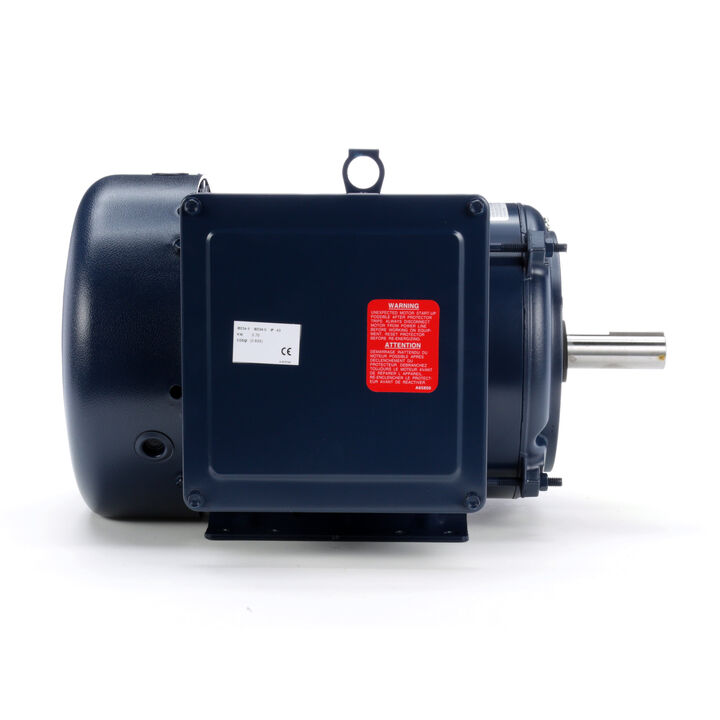

MARATHON MOTORS 213TBFW7027 Z117 / 213TBFW7027BD General Purpose Farm Duty Motor, 5 HP, 1 Phase, 60 Hz, 230V, 1800 RPM
Item: AF8FXU
Model: 213TBFW7027
In Stock
Get it by Friday, Apr 17
5.00% off
£1927.48/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | Farm Duty |
|---|---|
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | Yes |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Efficiency Group | Standard |
| Finish | Enamel |
| Frame | 213TZ |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 22.6A |
| Hp | 5 hp |
| Includes | Condensate Drain, Shaft Slinger |
| Insulation Class | Class F |
| Length Less Shaft | 14 7/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Extra High Torque |
| Motor Thermal Protection | Manual |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1740 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82.5% |
| Number Of Speeds | 1 |
| Overall Length | 18 5/16" |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 3 1/2" |
| Standard Logo | csa.png, ul.png |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| standard | CSA CERTIFIED, UL RECOGNIZED |
Product Details
Shipping Information
| Height | 35.56 |
|---|---|
| Length | 57.15 |
| Width | 42.7 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | MX |
| Weight | 53.550000 |
Related Products
| Style | Model | Voltage | Hp | Nameplate Rpm | Motor Design | Frame | Overall Length | Shaft Length | Efficiency | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 182TCFW9061 | 115/230V AC | 2 hp | 1760 RPM | Capacitor Start | 182TZ | 14 7/16" | 2 13/16" | 74% | 1,265.01 | |

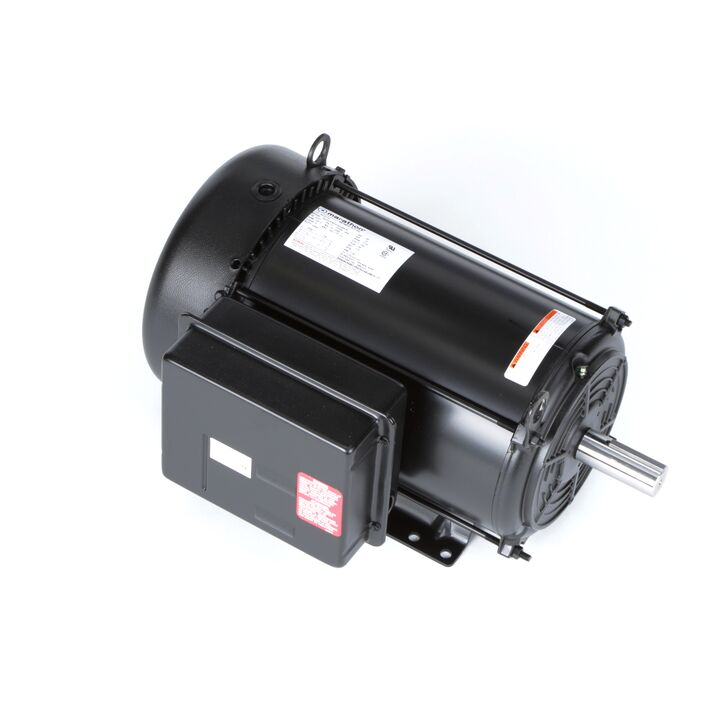

| B | 215TBFW7028 | 230V AC | 7 1/2 hp | 1750 RPM | Capacitor Start/Run | 215TZ | 21 1/16" | 3 1/2" | 85.5% | 2,809.53 |
