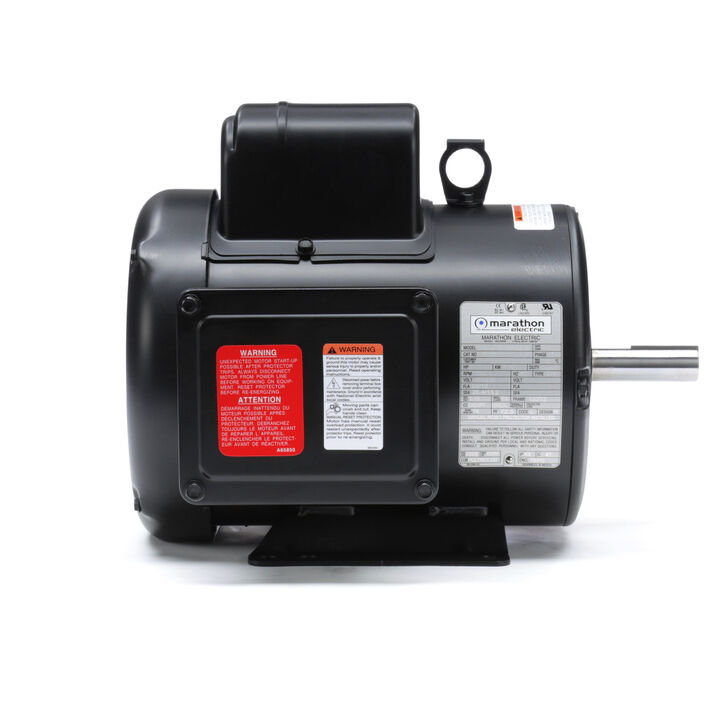

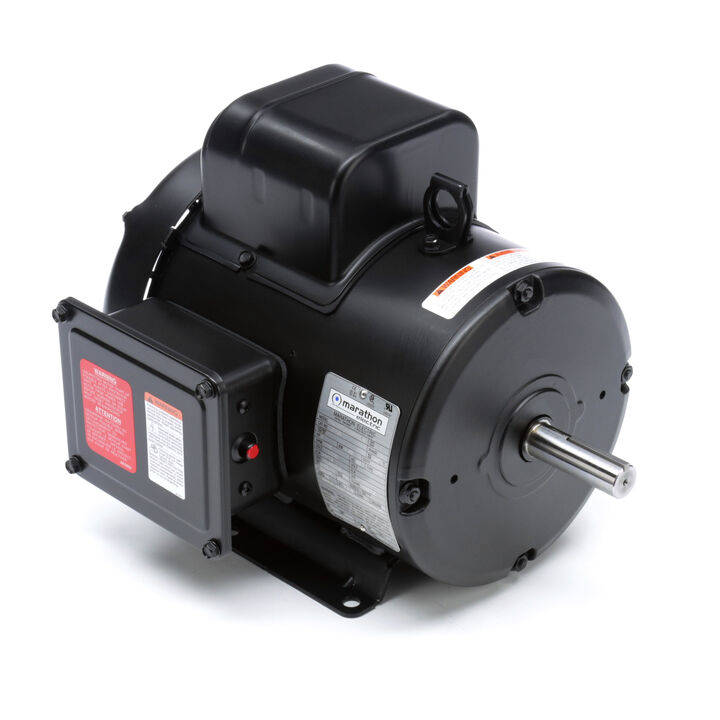

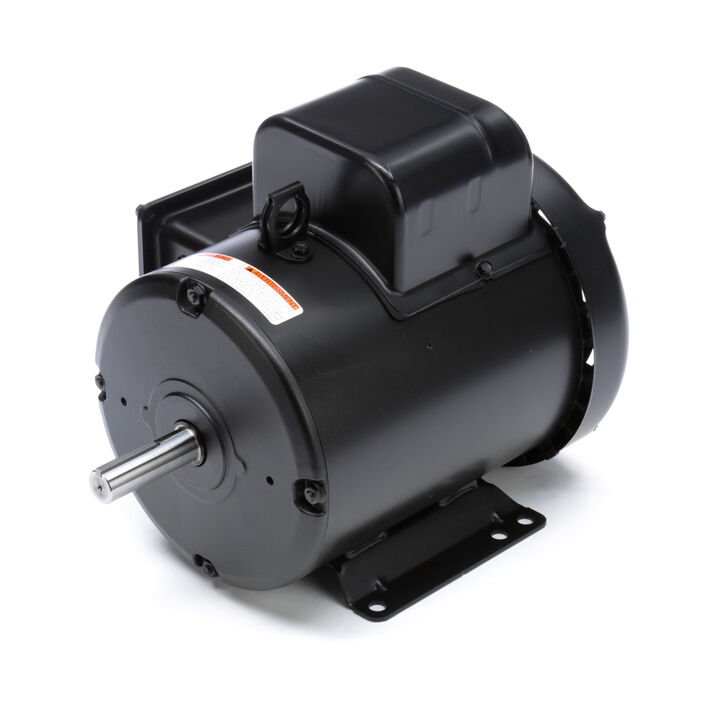

MARATHON MOTORS 182TCFW9061 Z112A / 182TCFW9061CC General Purpose Farm Duty Motor, 2 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Item: AF8FXQ
Model: 182TCFW9061
In Stock
Get it by Friday, Apr 17
5.00% off
£1442.11/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | Farm Duty |
|---|---|
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | Yes |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Efficiency Group | Standard |
| Finish | Enamel |
| Frame | 182TZ |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 24/12A |
| Hp | 2 hp |
| Includes | Condensate Drain, Shaft Slinger |
| Insulation Class | Class F |
| Length Less Shaft | 11 5/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Extra High Torque |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1760 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 74% |
| Number Of Speeds | 1 |
| Overall Length | 14 7/16" |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 13/16" |
| Standard Logo | csa.png, ul.png |
| Thermal Protection | Manual |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/230V AC |
| standard | CSA CERTIFIED, UL RECOGNIZED |
Product Details
Shipping Information
| Height | 31.45 |
|---|---|
| Length | 51.13 |
| Width | 37.16 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | MX |
| Weight | 30.600000 |
