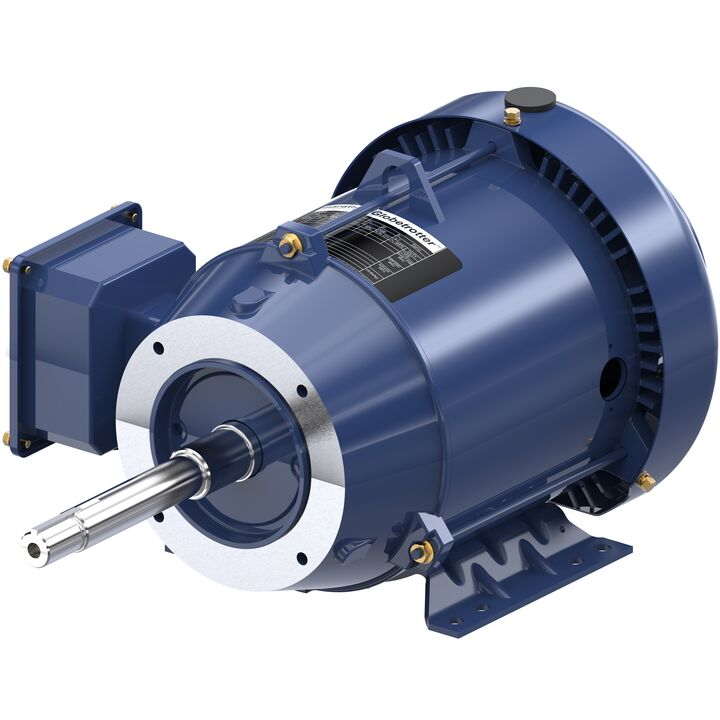

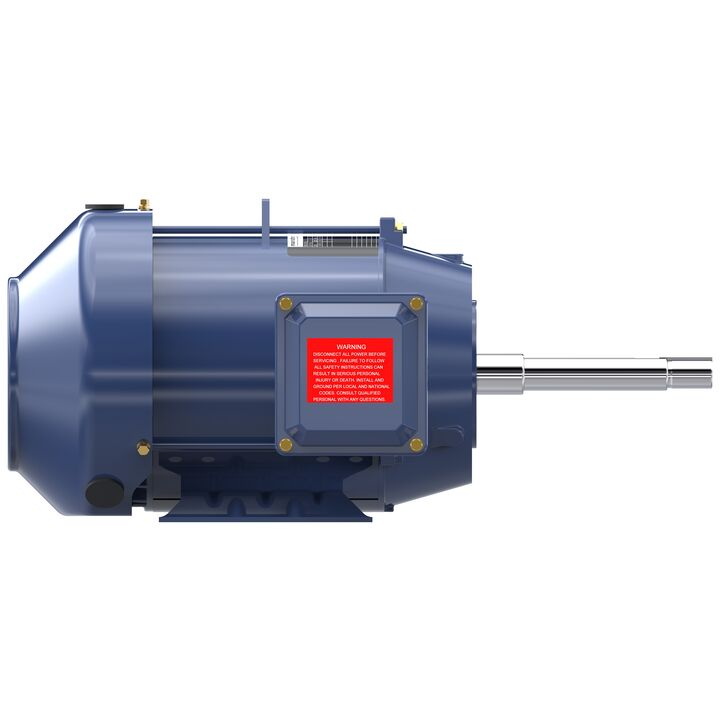

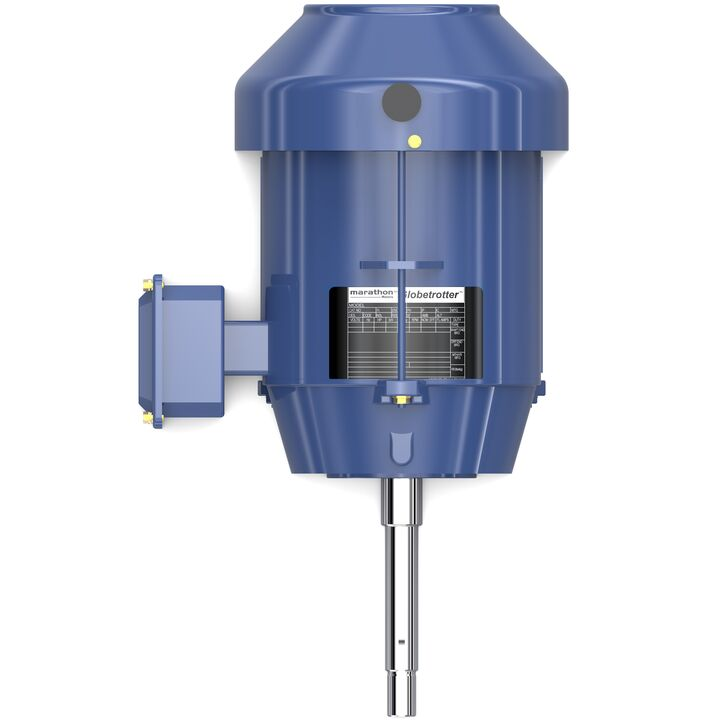

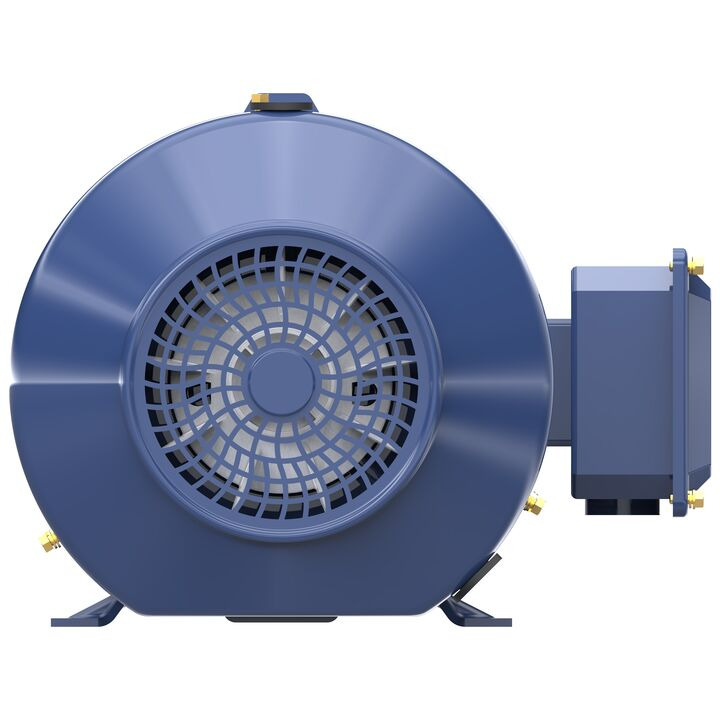

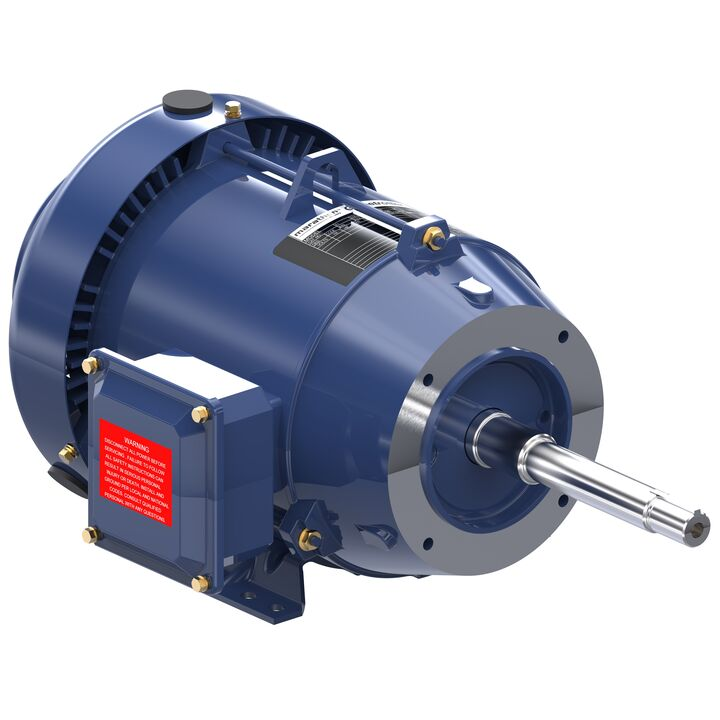

MARATHON MOTORS 184TTFBD6012 GT3412A / 184TTFBD6012CB Close Coupled Pump Motor, 5/3 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM
Item: CH6HZB
Model: 184TTFBD6012
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£2170.73/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Type | Ball |
|---|---|
| Body Dia. | 8 2/5" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency | 88.5% |
| Efficiency Group | Premium |
| Frame Material | Steel |
| Frame Size | 184JP |
| Frame Type | 184JP |
| Frequency | 60 Hz |
| Full Load Amps | 12.4/6.2A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Height | 9 13/16" |
| Hp | 5 hp |
| Insulation Class | Class F |
| Length Less Shaft | 11 3/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
|---|---|
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Close Coupled Pump |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 3525 RPM |
| Nema Design | A |
| No. Of Speeds | 1 |
| Nominal Efficiency | 88.5% |
| Overall Height | 9 13/16" |
| Overall Length | 18 11/16" |
| Phase | 3 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/4" |
| Shaft Length | 7 3/8" |
| Standard Logo | ce.png,csa.png,ul.png |
| Standards | Ce, Csa, Ul Listed |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Motor Thermal Protection | None |
Product Details
Close-Coupled Pump Motor
Shipping Information
| height | 32.59 |
|---|---|
| length | 62.08 |
| width | 40.01 |
| country of origin | MX |
|---|---|
| weight | 45.000000 |
Related Products
| Style | Model | Voltage | Hp | Rpm Range | Nameplate Rpm | Motor Enclosure Design | Motor Design | Shaft Dia. | Motor Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

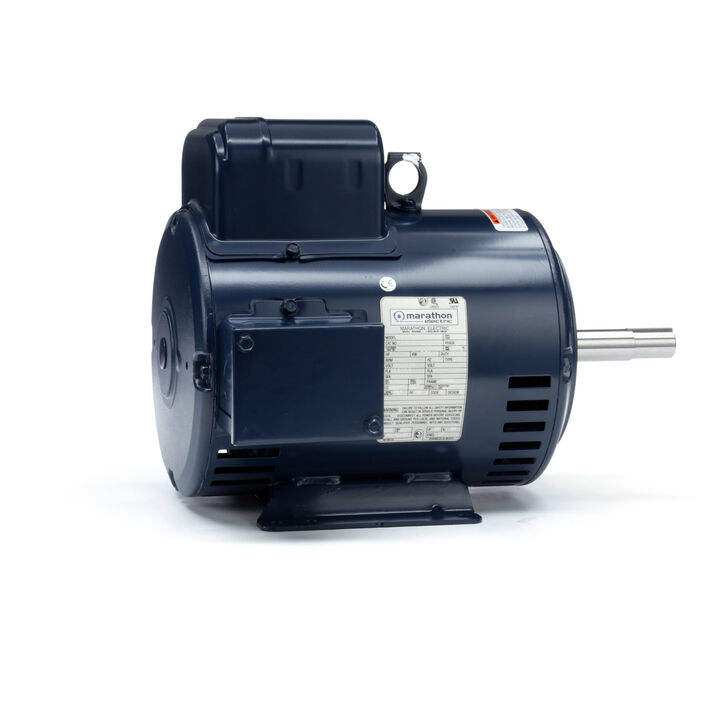

| A | 184TCDW7047 | 115/230V AC | 3 hp | 1701-1800 RPM | 1750 RPM | Open Dripproof | Capacitor Start | 7/8" | Capacitor Start/Induction Run | 1,522.39 | |

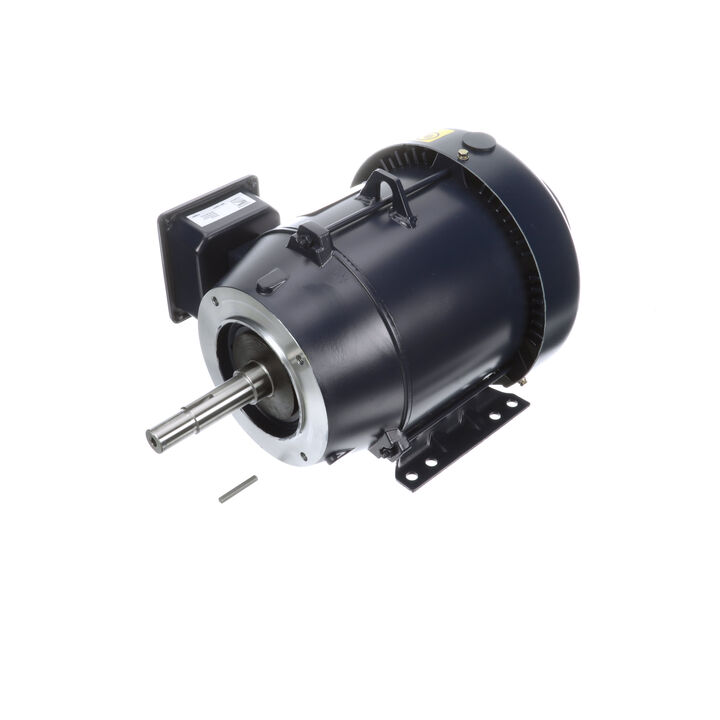

| B | 182TTFBD6006 | 230/460V AC | 3 hp | 3001-3600 RPM | 3530 RPM | Totally Enclosed Fan Cooled | 3 Phase | 1 1/4" | Three Phase | 1,055.90 |
