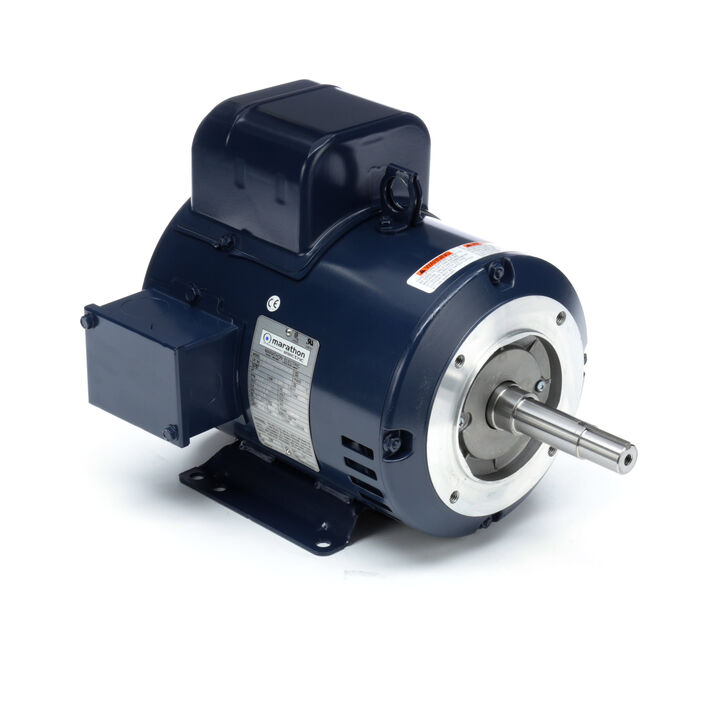

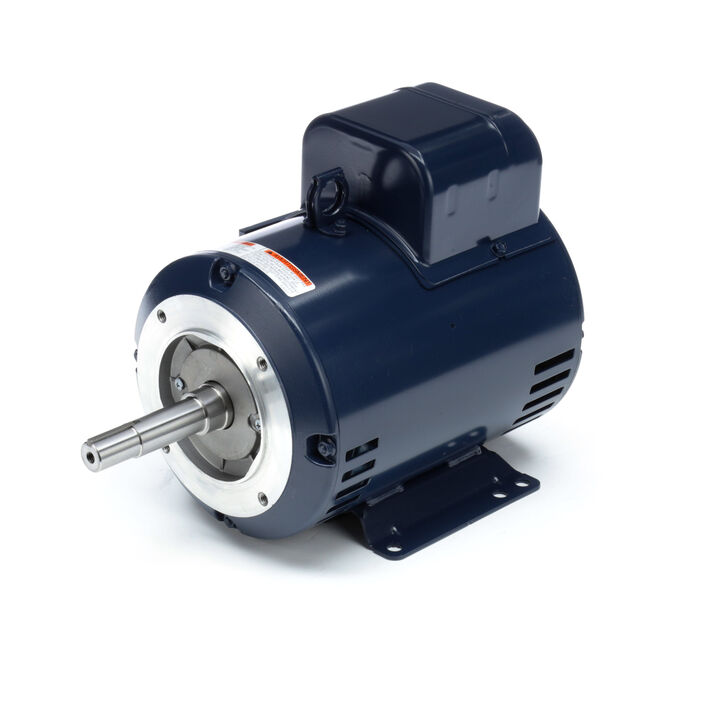

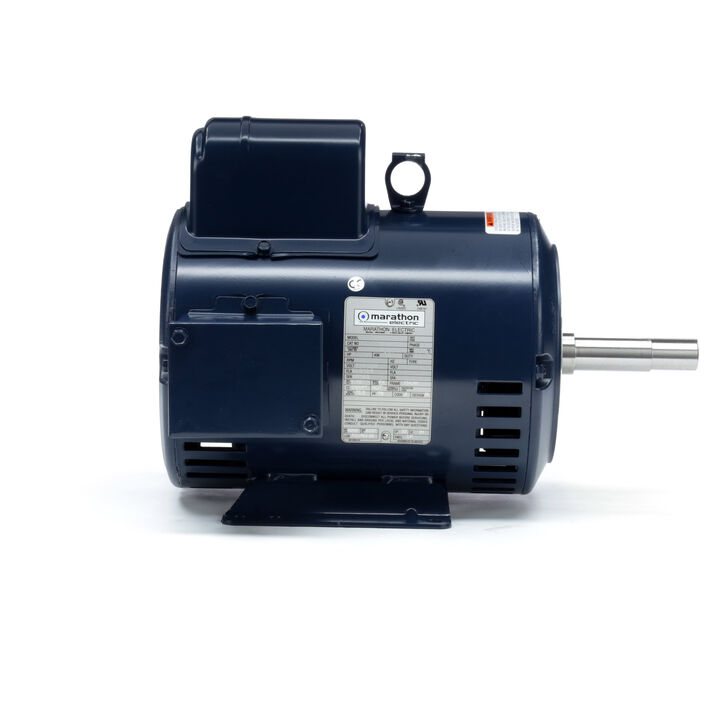

MARATHON MOTORS 184TCDW7047 Z407A / 184TCDW7047AA Close Coupled Pump Motor, 3 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Item: AF8LFE
Model: 184TCDW7047
In Stock
Get it by Thursday, Apr 16
£1552.84/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Type | Ball |
|---|---|
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Position | F1 |
| Efficiency Group | Standard |
| Frame Material | Steel |
| Frame Size | 184JM |
| Frame Type | 184JM |
| Frequency | 60 Hz |
| Full Load Amps | 33.5/16.8A |
| Height | 11 3/16" |
| Hp | 3 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 11 9/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
|---|---|
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Close Coupled Pump |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 75.5% |
| Overall Height | 11 3/16" |
| Overall Length | 15 13/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4 1/4" |
| Standard Logo | ce.png, csa.png, nema.png, ul.png |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Motor Thermal Protection | None |
| standard | CE, CSA, IP 22, NEMA JM, UL |
Product Details
Shipping Information
| Height | 32.72 |
|---|---|
| Length | 45.57 |
| Width | 33.17 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | MX |
| Weight | 35.100000 |
