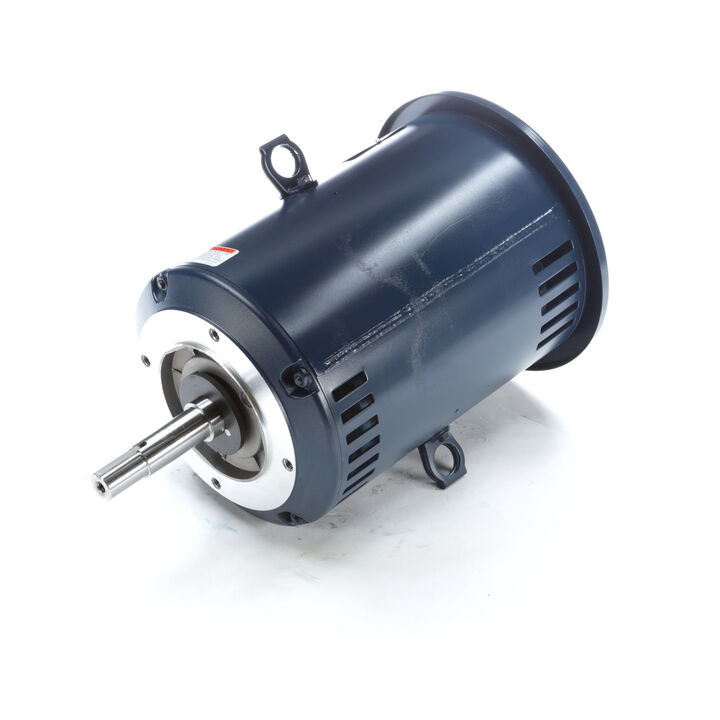

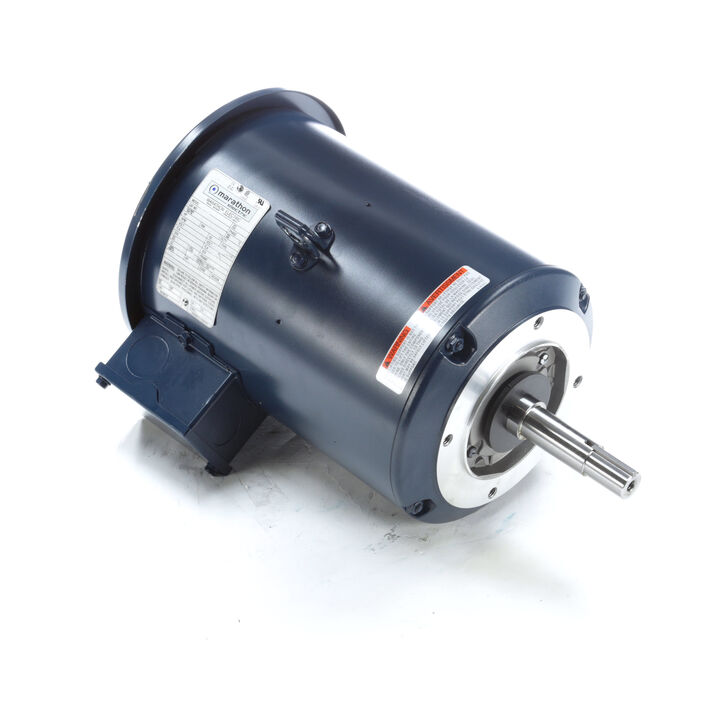

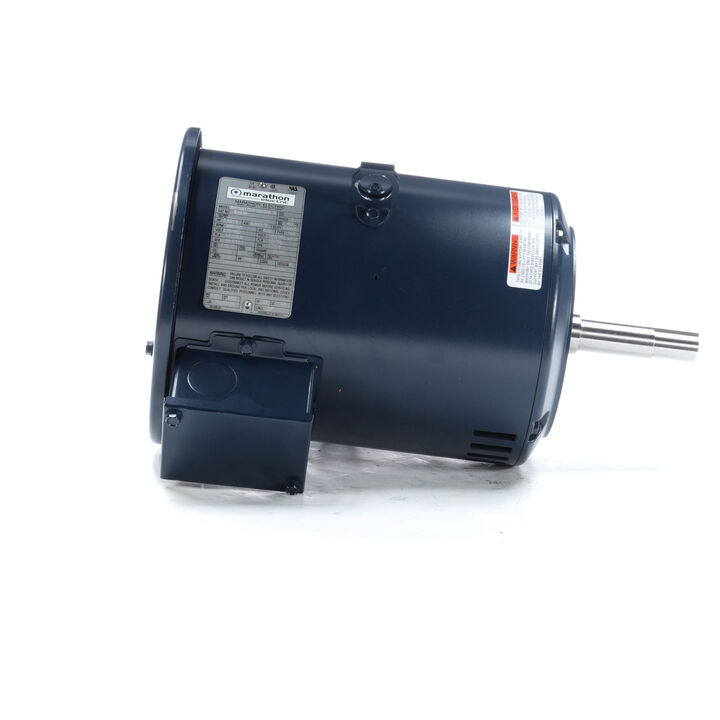

MARATHON MOTORS 184TTDW16310 E163B / 184TTDW16310AA Close Coupled Pump Motor, 7.50/5 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM

Item: CT2FPE
Model: 184TTDW16310
In Stock

Get it by Thursday, Apr 16

£1884.38/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Temp. 40°C
Bearing Type Ball
Bolt Circle Dia. 5 7/8"
Cc Number CC003A
Conduit Box Location Exterior
Conduit Box Position F1
Duty Cycle Continuous
Efficiency 88.5%
Frame 184JMV
Frame Material Steel
Frequency 50/60 Hz
Full Load Amps 17.8/8.9A
Height 9 13/16"
Hp 7 1/2 hp
Insulation Class Class F
Inverter Rated No
Length Less Shaft 12 7/8"
Max. Ambient Temp. 40°C
Motor Application Pump
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Open Dripproof
Motor Frame Material Steel
Motor Mounting Position Vertical Shaft Down
Motor Mounting Type Face
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Sub Application Close Coupled Pump
Mounting Type Face
Nameplate Rpm 3490 RPM
Nema Design A
No. Of Speeds 1
Nominal Efficiency 88.5%
Overall Height 9 13/16"
Overall Length 17 1/8"
Phase 3
Rpm Range 3001-3600 RPM
Service Factor 1.15
Shaft Dia. 7/8"
Shaft Length 4 1/4"
Standard Logo ce.png, csa.png, ul.png
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC
Motor Thermal Protection None
standard CE MARK, CSA CERTIFIED, UL RECOGNIZED

Product Details

Shipping Information

Height 34.14
Length 46.51
Width 34.29
HS Code 8501524000
Country Of Origin MX
Weight 40.500000
