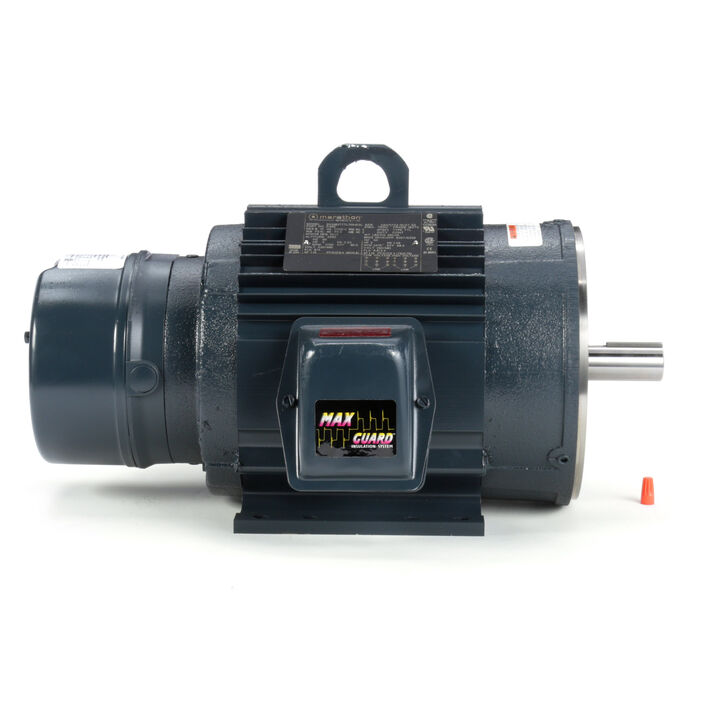

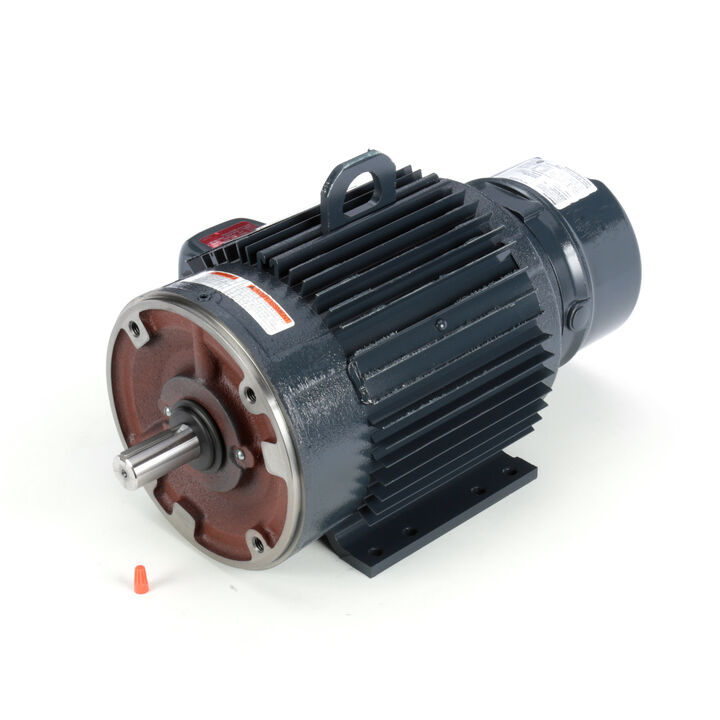

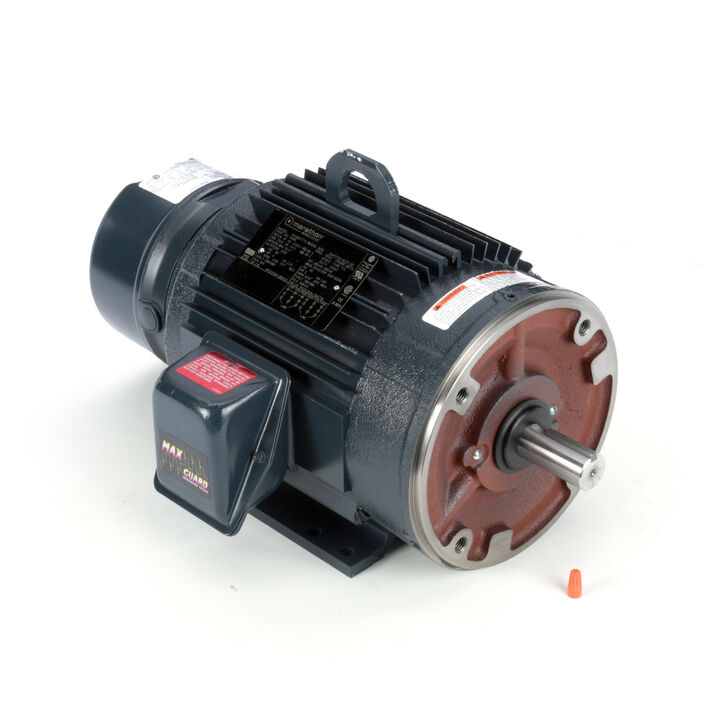

MARATHON MOTORS 182TTTL7034 C405 / 182TTTL7034ES Brake Motor, 3 and 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Item: AA7PTD
Model: 182TTTL7034
In Stock
Get it by Wednesday, Apr 15
£3206.99/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Temp. | 40°C |
|---|---|
| Application | Brake Motor |
| Bearing Type | Ball |
| Bearings | Ball |
| Brake Model/series | Series 56, Series 87 |
| Brake Rating | 25 lbs.-ft. |
| Break-down Torque | 25 lbs.-ft. |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Frame | 182TC |
| Frame Material | Aluminum |
| Frequency | 50/60 Hz |
| Full Load Amps | 8/4A |
| Hp | 3 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 17 1/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Brake Motor |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Aluminum |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1760 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 90.2% |
| Number Of Speeds | 1 |
| Overall Length | 19 11/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Series | Series 56, Series 87 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 5/8" |
| Standard Logo | ce.png,csa.png,ul.png |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Motor Thermal Protection | None |
Product Details
Brake Motor
Shipping Information
| height | 35.56 |
|---|---|
| length | 57.15 |
| width | 42.7 |
| hs code | 8501524000 |
|---|---|
| country of origin | US |
| weight | 45.000000 |
