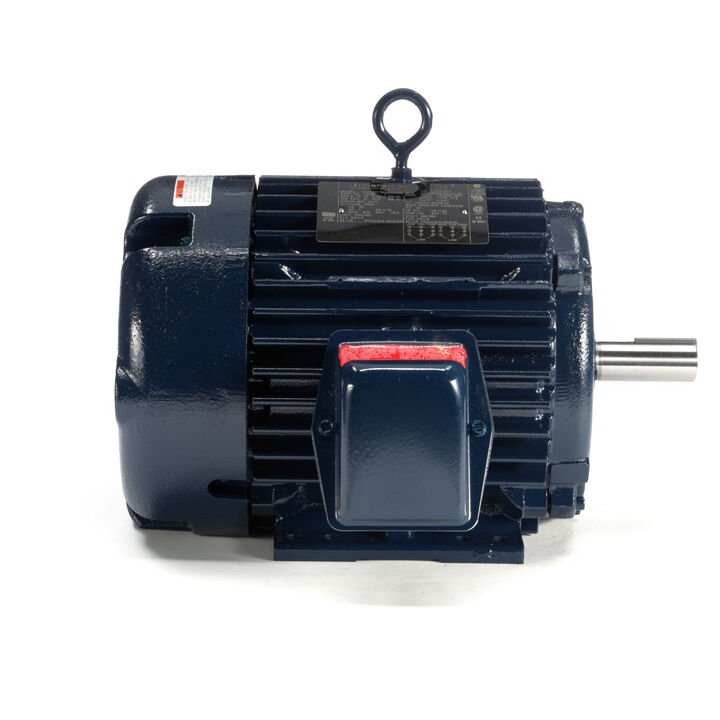

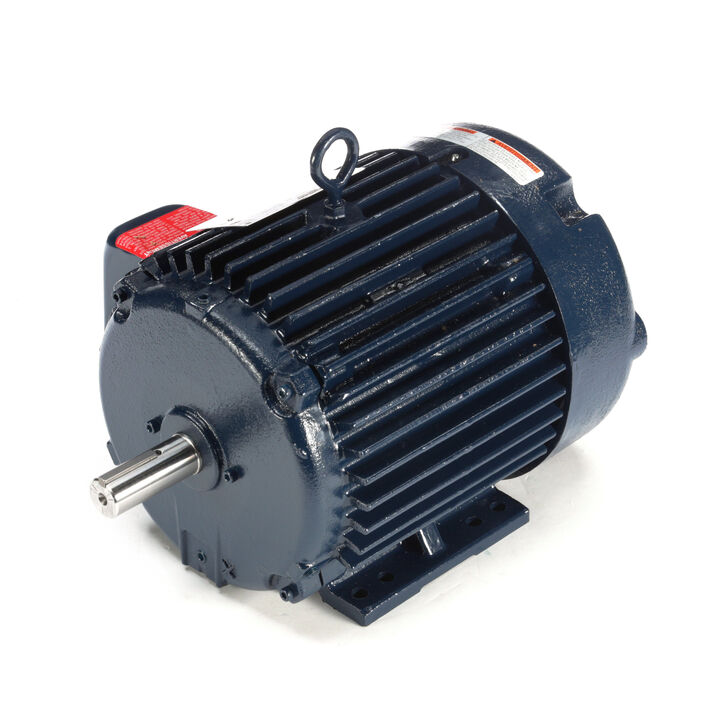

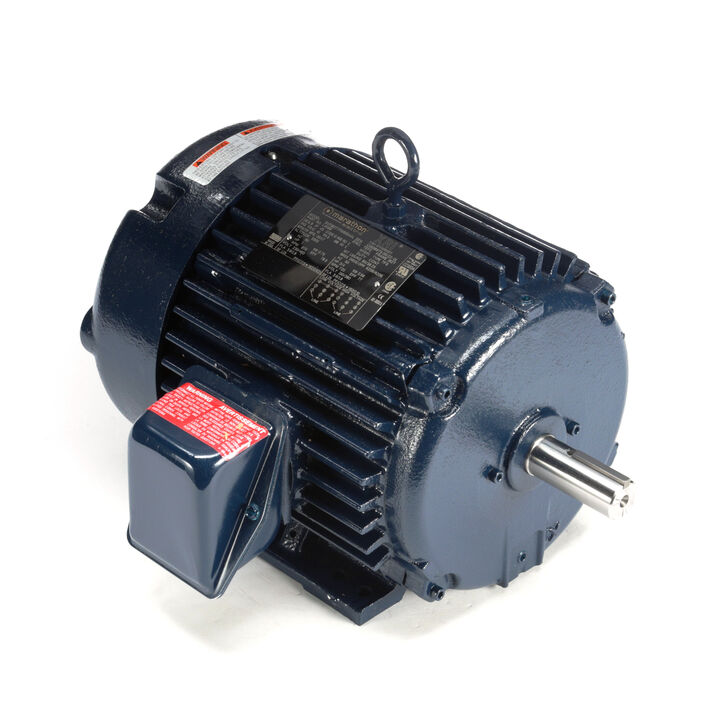

MARATHON MOTORS 182TTFN16101 L409B / 182TTFN16101AA General Purpose Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 900 and 750 RPM

Item: AJ2NRX
Model: 182TTFN16101
InStock

Get it by Friday, Apr 17

£1,919.04/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Item General Purpose Motor
Ambient Temp. 104°F
Base Type Rigid Base
Bearing Type Ball
Cc Number CC003A
Duty Cycle Continuous
Efficiency 78.5%
Frame 184T
Frame Material Cast Iron
Frequency 50/60 Hz
Full Load Amps 3.8/1.9A
Full Load Amps @ 50hz 2A
Hp 1 hp
Hp @ 50hz 1 hp
Insulation Class Class F
Inverter Rated No
Length Less Shaft 13"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Motor Application General Application
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Type Three Phase
Nameplate Rpm 870 RPM
Nema Design B
No. Of Speeds 1
Nominal Efficiency 78.5%
Overall Length 15 7/8"
Phase 3
Rpm Range 0-1100 RPM
Service Factor 1.15
Shaft Dia. 1 1/8"
Shaft Length 2 7/8"
Standard Logo ce.png, csa.png, ul.png
Standards Ce Approved, Csa (Lr2025), Ul (E49747)
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC
Motor Thermal Protection None

Product Details

    • Supersedes Marathon - L409 / 182TTFS8101, L409A / 182TTFN4101

Shipping Information

Height 37.47
Length 57.15
Width 42.54
HS Code 8501524000
Country Of Origin US
Weight 38.250000
