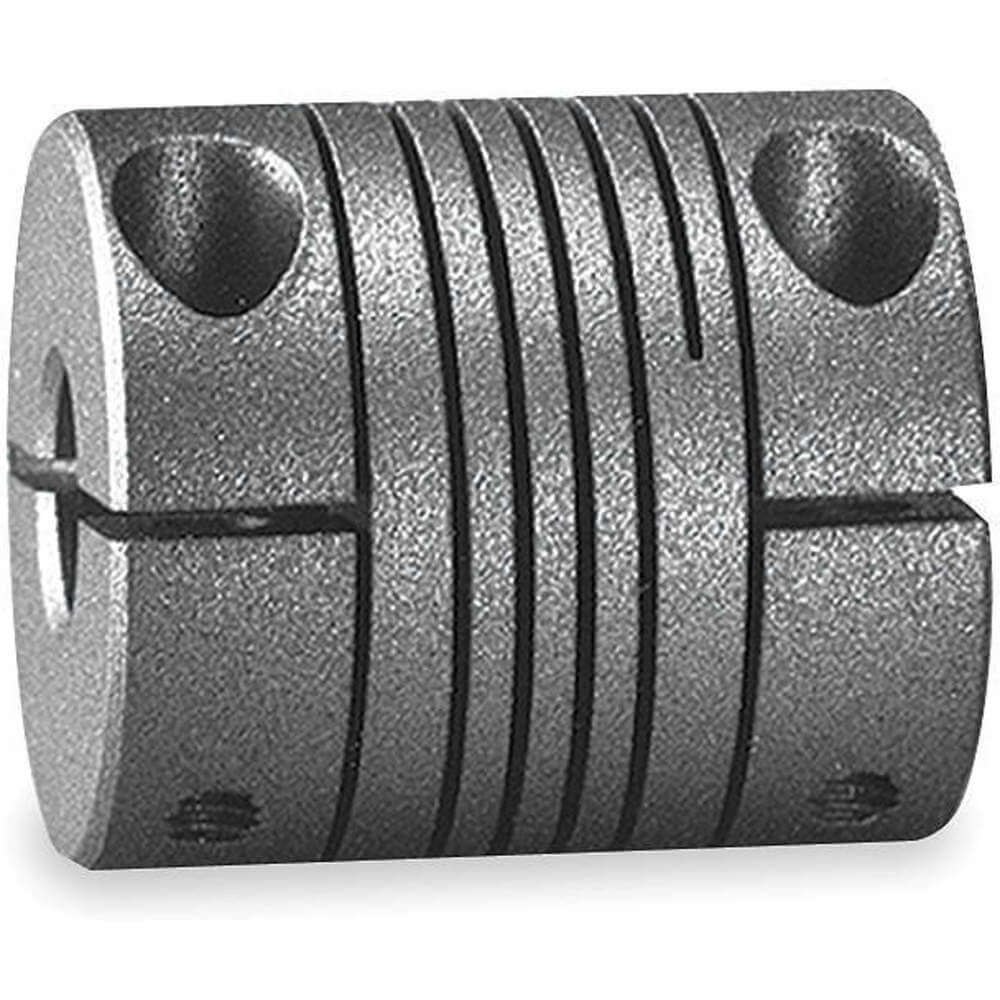

Item | Motion Control Coupling |
Axial Misalignment | +/-0.010" |
Bore A | 1/4" X 1/4" |
Bore B | 1/4" X 1/4" |
Bore Dia. | 1/4 x 1/4" |
Bore Type | Bored |
Coupling Size | EC075 |
Coupling Type | Single Beam Clamp Style |
Finish | Anodized |
Hub Dia. | 0.748" |
Hub Material | Aluminum |
Keyway | Without Keyway |
Length through Bore | 6mm |
Material | Anodized Aluminum |
Max. Angular Misalignment | 5 Deg. |
Max. Axial Misalignment (In.) | +/-.010 |
Max. Bore | 8.00 mm |
Max. Bore | 8mm |
Max. Operating Temp. | 200 Deg. F |
Max. Parallel Misalignment (In.) | 0.005 |
Max. RPM | 10,000 |
Max. Speed | 10,000 rpm |
Max. Temp. Range (F) | 200 |
Min. Bore | 4mm |
Nominal Torque | 5 in.-lbs. |
Outside Dia. | 0.748" |
Overall Length | 23mm |
Parallel Misalignment | 0.005" |
Screw Size | M2.5 |
Screw Type | Clamp Screw |
Size | EC075 |
Style | Single Beam Clamp |
System of Measurement | Imperial |
Torque | 5 In.Lbs. |
Ship weight (kg) | 0.03 |
Ship height (cm) | 2.54 |
Ship length (cm) | 7.62 |
Ship width (cm) | 2.54 |
HS code | 8483908040 |
Country of Origin | HU |
A. Lovejoy EC075 single-beam coupling has a maximum torque capacity of 17 inch-lb.
A.
A. Regular inspection of the coupling is recommended to ensure that the set screws are tight and the coupling is free of wear or damage.
Model | Length through Bore | Bore A | Bore B | Max. Bore | Min. Bore | Nominal Torque | Outside Dia. | Overall Length | Price | |
---|---|---|---|---|---|---|---|---|---|---|
68514456640 | 0.276" | 1/4" X 1/4" | 1/4" X 1/4" | - | - | 11 in.-lbs. | 0.984" | 32mm | £132.92 | RFQ
|
68514456630 | 0.197" | 3/16" x 1/4" | 3/16" x 1/4" | - | 0.157" | 5 in.-lbs. | 0.748" | 23mm | £112.82 | RFQ
|
68514456618 | 3mm | 1/4" X 1/4" | 1/4" X 1/4" | 0.118" | 0.118" | 1.8 in.-lbs. | 0.512" | 13mm | £79.88 | RFQ
|
