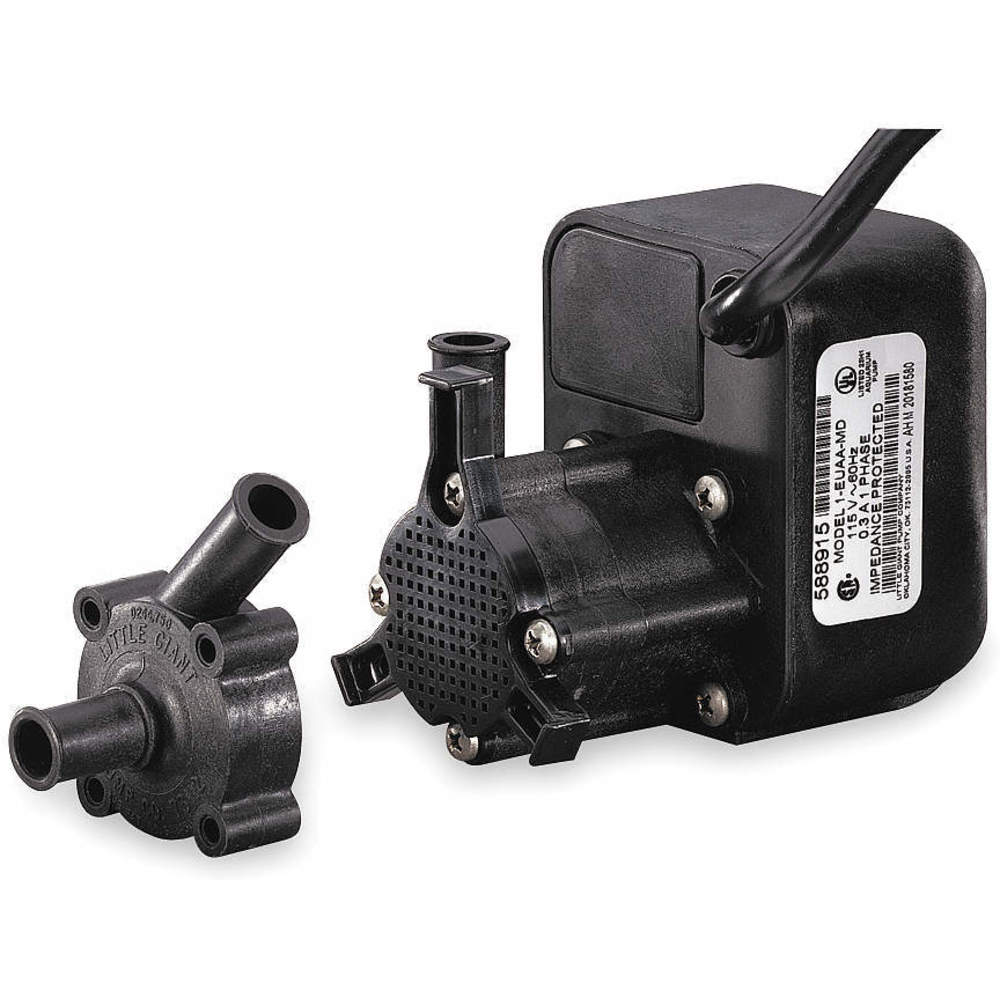

LITTLE GIANT PUMPS 588205 1-EUAA-MD Magnetic Drive Pump, 1/200 Hp, 115V, Submersible/In Line
Item: AC2YQU
Model: 588205
22 In Stock
Ships within 2 days via
5.00% off
£343.67/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps | 0.3A |
|---|---|
| Application | For Submerged Or In Line, Suitable For Mild Chemicals At Moderate Temperature, Mild Alkalis Plus Saltwater |
| Compatible Discharge Hose Size | 1/2" |
| Compatible Intake Pipe Size | 1/2" |
| Cord Length | 6 ft. |
| Cord Type | 18/3 SJT |
| Design | Gravity-Feed, Requires The Pump Inlet To Be Lower Than Liquid Level |
| Discharge Type | Hose |
| Display Qty | 1 |
| Flow Rate @ 1 Ft. | 2.5 GPM |
| Flow Rate @ 3 Ft Of Head (maximum) | 1.8 GPM |
| Flow Rate @ 3 Ft. | 1.8 GPM |
| Flow Rate @ 6 Ft. | 6.8 GPH |
| Flow Rate @ 9 Ft. | 5.5 GPH |
| Frequency | 60 Hz |
| Gasket Material | Buna N |
| Gpm Of Water @ 3 Ft. | 1.75 GPM |
| Height | 3 3/5" |
| Housing Material | Glass Filled Polypropylene |
| Hp | 1/200 hp |
| Impeller Material | Barium Ferrite, Glass Filled Polypropylene |
| Inlet Size | 1/2" |
| Inlet Type | Hose |
| Intake And Discharge Size | 1/2", 1/2" |
| Intake Type | Hose |
| Length | 4 4/5" |
| Max. Flow Rate | 2.5 GPM |
|---|---|
| Max. Fluid Temp. | 150°F |
| Max. Head | 5 ft. |
| Max. Outlet Pressure | 2.2 psi |
| Max. Shut Off Pressure | 2.16 psi |
| Min. Head | 5 ft. |
| Motor Type | Shaded Pole |
| Mounting Location | Submersible |
| Nameplate Voltage | 115V AC |
| Outlet Size | 1/2" |
| Outlet Type | Hose |
| Overall Height | 3 3/5" |
| Overall Length | 4.8" |
| Overall Width | 2 4/5" |
| Phase | 1 |
| Pump Housing Material | Glass Filled Polypropylene |
| Seal Material | Buna-N |
| Series | Aquarium Series |
| Specific Gravity | 1.1 |
| Specific Gravity (maximum) | 1.1 xg |
| Standard Logo | csa.png |
| Type | Magnetic Driven Salt Water |
| Voltage | 115V AC |
| Watts | 17 W |
| Width | 2 4/5" |
Product Details
Magnetic Drive Pump
Shipping Information
| height | 10.92 |
|---|---|
| length | 16 |
| width | 15.49 |
| hs code | 8413702004 |
|---|---|
| country of origin | MX |
| weight | 1.368000 |
